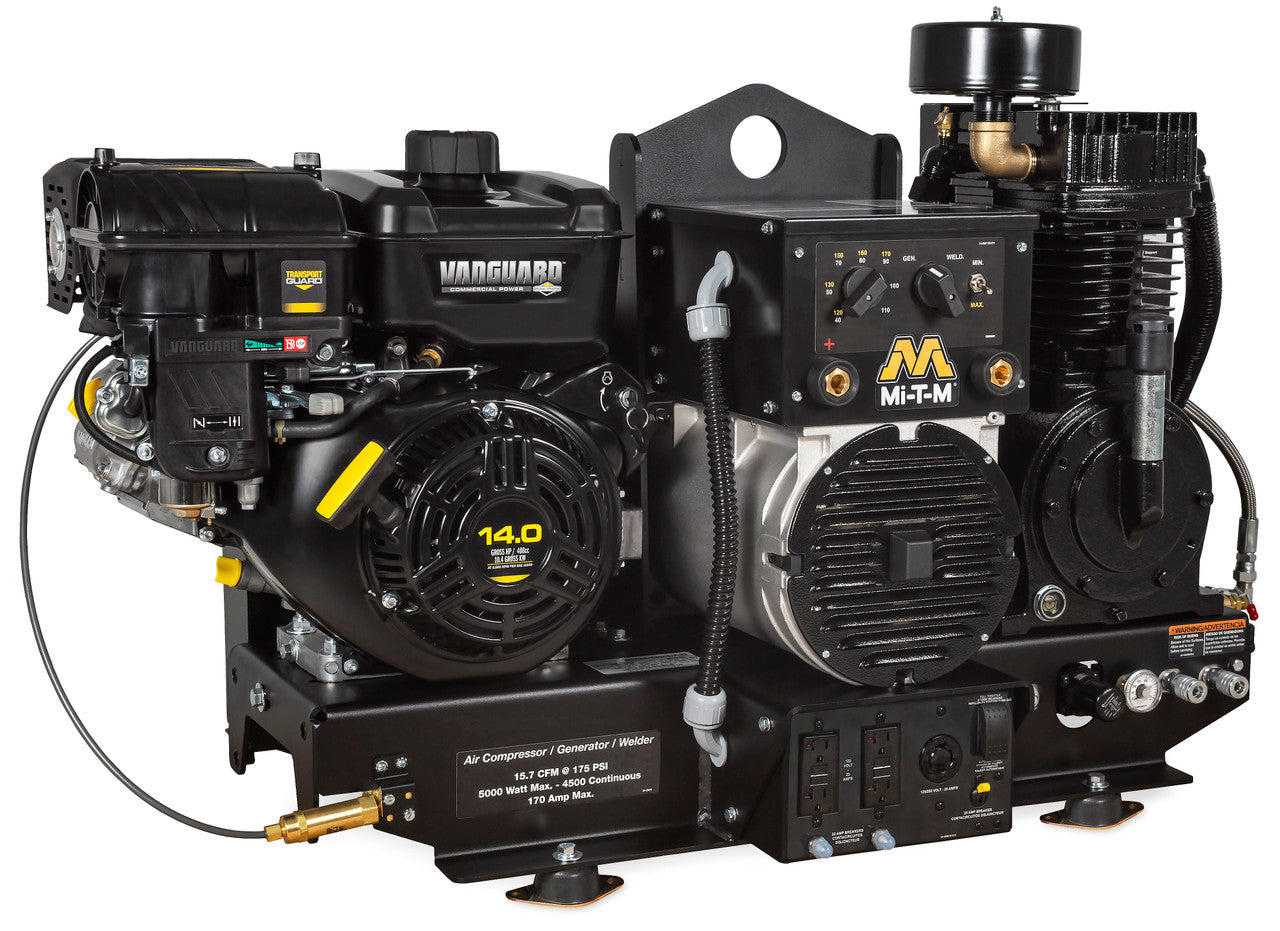

MI-T-M AGW-SV14-B Two Stage Gasoline Base-Mount Combination Compressor

The AGW Series combines an air compressor, generator and welder into one setup, making it easy to manage multiple tasks efficiently.

Compressor Pump

• Cast iron compressor pump
• Splash lubricated
• Stainless-steel braided discharge hose
• Large canister intake filter
• Oil level sight indicator

Generator

• Brush-type 2 pole 120V/240V alternator
• Total harmonic distortion (THD) less than 6%
• 100% copper windings

Welder

• Amperage selection switch, 170A or 220A maximum

Frame

• Powder coated two-piece belt guard

Components

• Regulator and two gauges for tank and outlet pressure
• 150-PSI maximum rated regulator
• Manual drain valves for proper maintenance
• 16½-inch fly wheel
• Quality pilot valve unloader

AGW Series Operation

Generator Mode

• AC current only
• Selector switch set to idle down
• Switch is set to full throttle

Welder Mode

• DC current only
• Engine must be running full throttle
• Selector switch must be set to full throttle

Specifications

• Displacement/ Engine | 408cc Vanguard OHV
• Rated Speed | 3600 RPM
• CFM @ 90 PSI | 16.4
• CFM @ 175 PSI | 15.7
• Tank Size | Not Applicable - Base-Mount Model
• Max. AC Output | 5000 watts
• Rated AC Output | 4500 watts
• Alternator Wattage | Cont. On-Load @ 90 PSI: 3000 watts
• Alternator Wattage | Cont. On-Load @ 175 PSI: 2500 watts
• Frequency/Voltage | 60Hz/120V/240V
• Max. Amps (120V/240V) | 41.5/20.8 Off-Load
• Cont. Amps (120V/240V) | 37.5/18.8 Off-Load
• Receptacles | (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock
• Duty Cycle (10 Min. Run Time) | 150A @ 100%
• DC Voltage | 50-170A Working Range
• Fuel Tank | 1.53-gallon

Weights & Dimensions

• Net Weight | 404.00 lbs.
• Shipping Weight | 469.00 lbs.
• Length | 49.00 in.
• Width | 22.00 in.
• Height | 28.50 in.

Warranty Information

• 2 Year Alternator

• 2 Year Pump Exchange

• 3 Year Vanguard Engine

Optional Accessories:

Options - must be ordered with unit and cannot be added later

• AX-0070 Battery Tray, Box and 2-Foot of Cables | Attaches to engine side of unit
• AX-0016 Battery, Battery Tray, Box and 2-Foot Cables | Attaches to engine side of unit
• AX-0100 Remote Start/Choke, Sealed Cable | 7-foot wire extension for key switch

Note: All gasoline models sold in California are required to have a CARB compliant engine and/or fuel tank. Consult factory
Receiver tank required
Equipped with electric start – battery and battery cables not included
