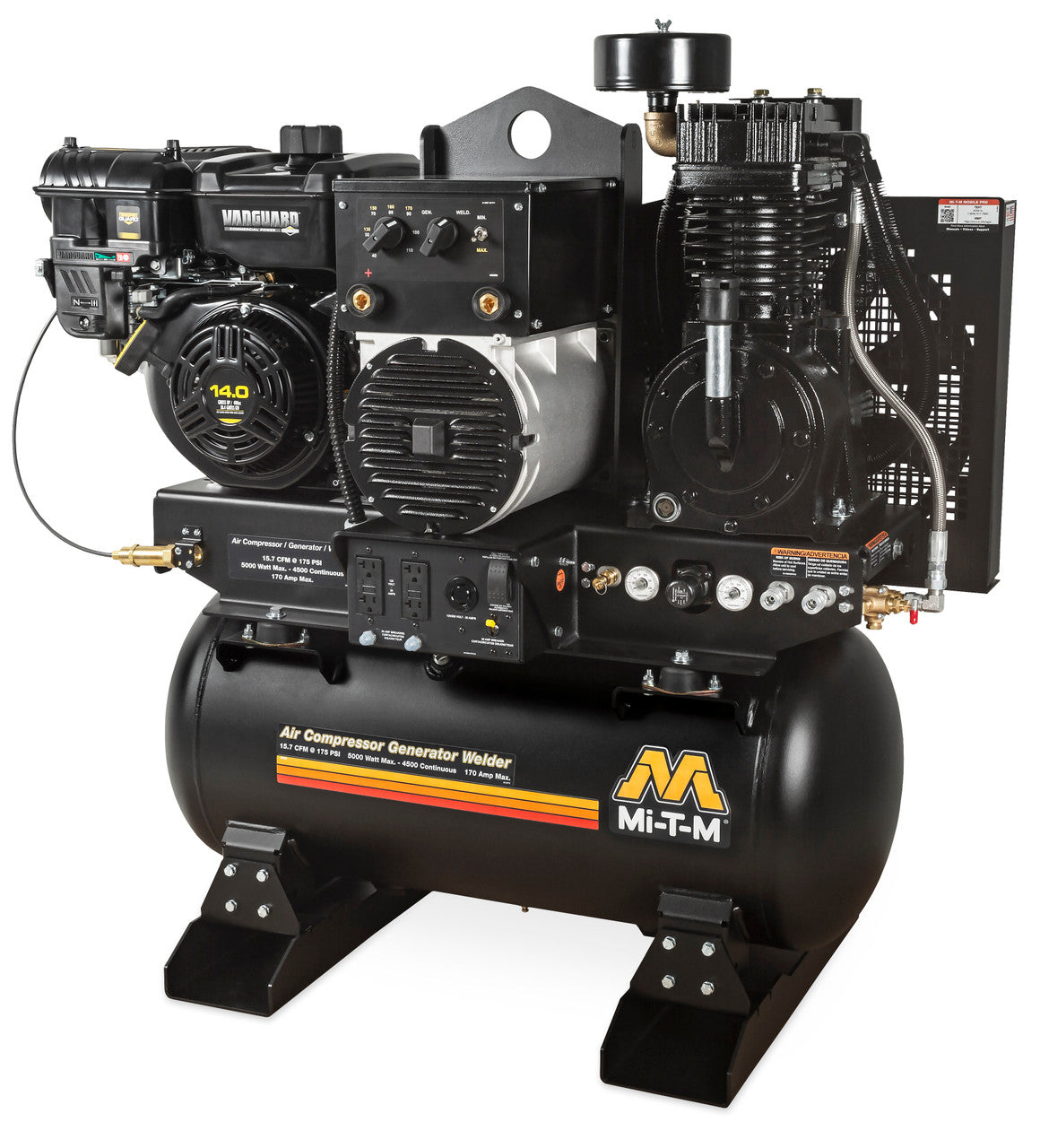

MI-T-M AGW-SV14-30M 30 Gallon Two Stage Gasoline Combination Compressor

The AGW Series combines an air compressor, generator and welder into one setup, making it easy to manage multiple tasks efficiently.

Compressor Pump

• Cast iron compressor pump
• Splash lubricated
• Stainless-steel braided discharge hose
• Large canister intake filter
• Oil level sight indicator

Generator

• Brush-type 2 pole 120V/240V alternator
• Total harmonic distortion (THD) less than 6%
• 100% copper windings

Welder

• Amperage selection switch, 170A or 220A maximum

Frame

• Powder coated ASME receiver tank
• Powder coated two-piece belt guard
• Removable base plate offers flexible installation

Components

• Regulator and two gauges for tank and outlet pressure
• 150-PSI maximum rated regulator
• Manual drain valves for proper maintenance
• 16½-inch fly wheel
• Quality pilot valve unloader

Specifications

• Displacement/ Engine | 408cc Vanguard OHV
• Rated Speed | 3600 RPM
• CFM @ 90 PSI | 16.4
• CFM @ 175 PSI | 15.7
• Tank Size | 30-gallon
• Max. AC Output | 5000 watts
• Rated AC Output | 4500 watts
• Alternator Wattage | Cont. On-Load @ 90 PSI: 3000 watts
• Alternator Wattage | Cont. On-Load @ 175 PSI: 2500 watts
• Frequency/Voltage | 60Hz/120V/240V
• Max. Amps (120V/240V) | 41.5/20.8 Off-Load
• Cont. Amps (120V/240V) | 37.5/18.8 Off-Load
• Receptacles | (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock
• Duty Cycle (10 Min. Run Time) | 150A @ 100%
• DC Voltage | 50-170A Working Range
• Fuel Tank | 1.53-gallon

Weights & Dimensions

• Net Weight | 605.00 lbs.
• Shipping Weight | 670.00 lbs.
• Length | 46.00 in.
• Width | 22.00 in.
• Height | 47.00 in.

AGW Series Operation

• Generator Mode

• AC current only
• Selector switch set to idle down
• Switch is set to full throttle

Welder Mode

• DC current only
• Engine must be running full throttle
• Selector switch must be set to full throttle

Warranty Information

• 2 Year Alternator

• 2 Year Pump Exchange

• 3 Year Vanguard Engine

Optional Accessories:

Options - must be ordered with unit and cannot be added later

• IX-0001 Vibration Isolator Pads | Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
• AX-0070 Battery Tray, Box and 2-Foot of Cables | Attaches to engine side of unit
• AX-0016 Battery, Battery Tray, Box and 2-Foot Cables | Attaches to engine side of unit
• AX-0098 Remote Start/Choke, Sealed Cable | 7-foot wire extension for key switch

Note: All gasoline models sold in California are required to have a CARB compliant engine and/or fuel tank. Consult factory.
49 state engine and/or fuel tank. Not for sale in California.
Equipped with electric start – battery and battery cables not included.
