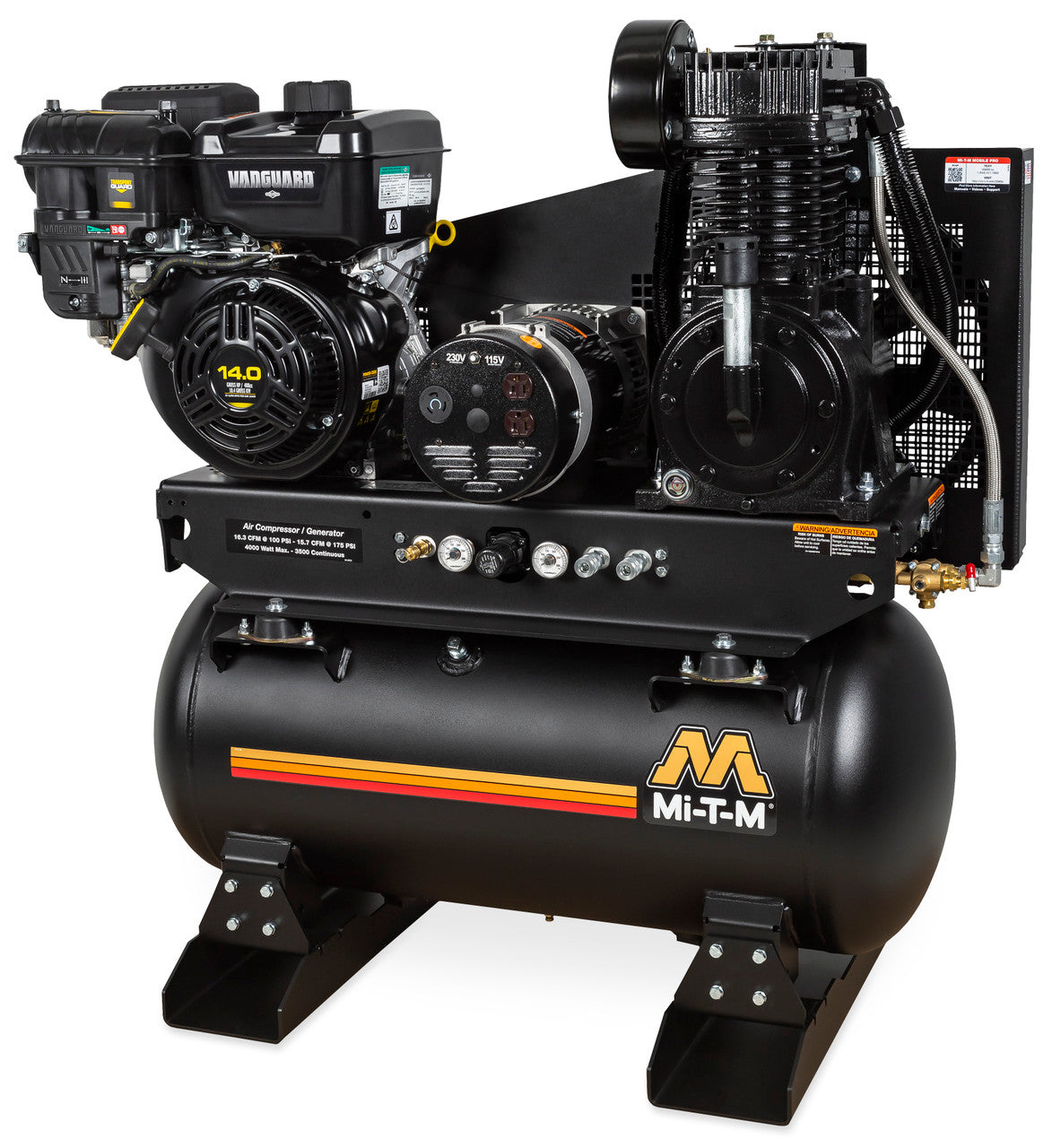

MI-T-M AG2-SV14-30ME 30 Gallon Two Stage Combination

**Includes electric start , Battery box and cables NOT included. The 30-gallon two stage air compressor/generators tie two units into one for optimal power remodelers, contractors and DIYers appreciate.

This air compressor/generator combination is perfect for remodelers, contractors and professionals. With 15.7 CFM and up to 4000 watts, they deliver premium power every time.

Compressor Pump

• Cast iron compressor pump
• Splash lubricated
• Stainless-steel braided discharge hose
• Large canister intake filter
• Oil level sight indicator

Generator

• Brushless alternator
• Total harmonic distortion (THD) less than 6%
• 100% copper windings
• (2) NEMA 5-20R 120V, 20A receptacles and (1) NEMA L6-20R 240V, 20A receptacles

Frame

• Powder coated ASME receiver tank
• 3/16-inch base plate to reduce vibration
• Powder coated two-piece belt guard
• Removable base plate offers flexible installation

Components

• Regulator and two gauges for tank and outlet pressure
• 150-PSI maximum rated regulator
• Manual drain valve for proper maintenance
• 16½-inch fly wheel
• Quality pilot valve unloader

Warranty Information

• 2 Year Alternator

• 2 Year Pump Exchange

• 3 Year Vanguard Engine

Specifications

• CFM @ PSI | 16.4 @ 90
• CFM @ PSI | 15.7 @ 175
• Alternator Wattage | Max. Output: 4000 watts
• Alternator Wattage | Cont. with Comp. On-Load: 2300 watts
• Alternator Wattage | Cont. with Comp. Off-Load: 3500 watts
• Displacement/ Engine | 408cc Vanguard OHV

Weights & Dimensions

• Net Weight | 457.00 lbs.
• Shipping Weight | 557.00 lbs.
• Length | 40.00 in.
• Width | 24.50 in.
• Height | 45.00 in.

Optional Accessories:

• IX-0001 Vibration Isolator Pads | Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
• AX-0063 Lifting Hook | For easier portability
• AX-0070 Battery Tray, Box and 2-Foot of Cables | Attaches to engine side of unit
• AX-0083 Idle Down | When activated it automatically throttles down engine to conserve fuel, start/stop control set at 145 to 175-PSI
• AX-0016 Battery, Battery Tray, Box and 2-Foot Cables | Attaches to engine side of unit
• AX-0096 Remote Start/Choke, Sealed Cable | 7-foot wire extension for key switch

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.
Equipped with electric start – battery, box and cables not included.
