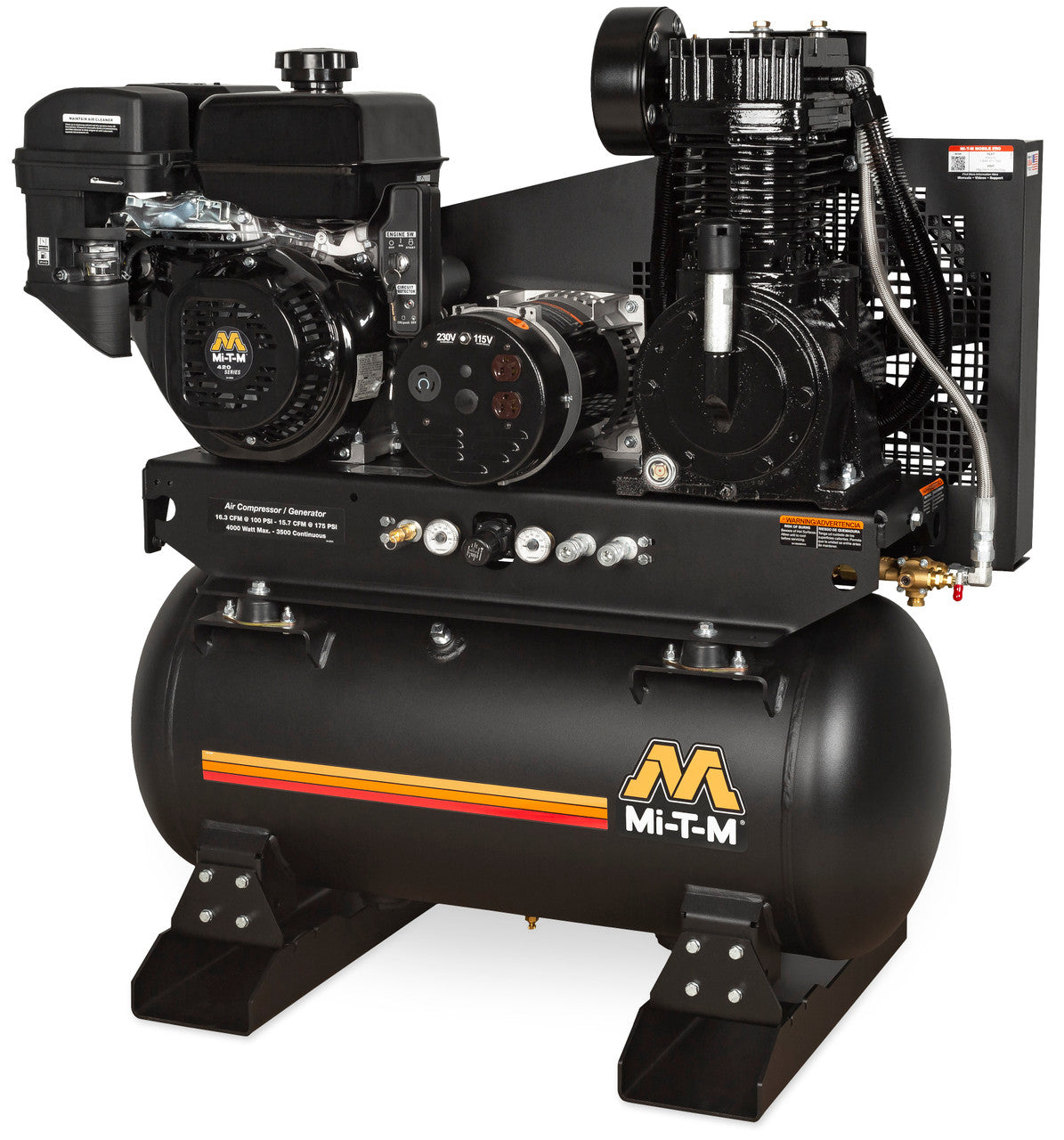

Mi-T-M AG2-SM14-30ME 30 Gallon Two Stage Combination
The 30-gallon air compressor/generator conveniently fits on the back of a truck and supplies power to run air and electrical tools, perfect for the most remote jobs. Save space, save money and reduce load capacity with this combination unit.
***This Model includes electric start, Batter Box and cables NOT included***
Compressor Pump:
- Splash lubricated
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight indicator
Generator:
- Brush-less alternator
- Total harmonic distortion (THD) less than 6%
- 100% copper windings
- Comes standard with (2) 120V, 20A and (1) 240V, 20A receptacles
Frame:
- Powder coated ASME coded 30-gallon receiver tank
- 3⁄16-inch base plate to reduce vibration
- 16-gauge powder coated two-piece belt guard
Components:
- Regulator and two gauges for tank and outlet pressure
- Manual drain valves for proper maintenance
- 161⁄2-inch fly wheel
- Quality pilot valve unloader
Specifications:
- CFM @ 90 PSI 16.4
- CFM @ 175 PSI 15.7
- Max. AC Output 4000 watts
- Continuous with Compressor On Load 2300 watts
- Continuous with Compressor Off Load 3500 watts
- Receptacles (2) NEMA 5-20R, (1) NEMA L6-20R
- Displacement/ Engine 420cc Mi-T-M OHV
- Compressor Two stage, cast iron
Weights & Dimensions:
- Net Weight 450 lbs.
- Shipping Weight 550 lbs.
- Length 40 in.
- Width 24.5 in.
- Height 45 in.
Limited Warranties:
- 1 year Mi-T-M engine
- 2 year alternator
- 2 year pump exchange
(see page 66 for more information)
- 3 year Honda and Kohler engines
Certifications:
ASME Boiler and Pressure Vessel Code - UM
Optional Accessories:
Options - must be ordered with unit and cannot be added later
- IX-0001 Vibration Isolator Pads | Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
- AX-0063 Lifting Hook | For easier portability
- AX-0075 Idle Down | When activated it automatically throttles down engine to conserve fuel, start/stop control set at 145 to 175-PSI
- AX-0070 Battery Tray, Box and 2-Foot of Cables | Attaches to engine side of unit
- AX-0016 Battery, Battery Tray, Box and 2-Foot Cables | Attaches to engine side of unit
- AX-0095 Remote Start/Choke, Sealed Cable | 7-foot wire extension for key switch
