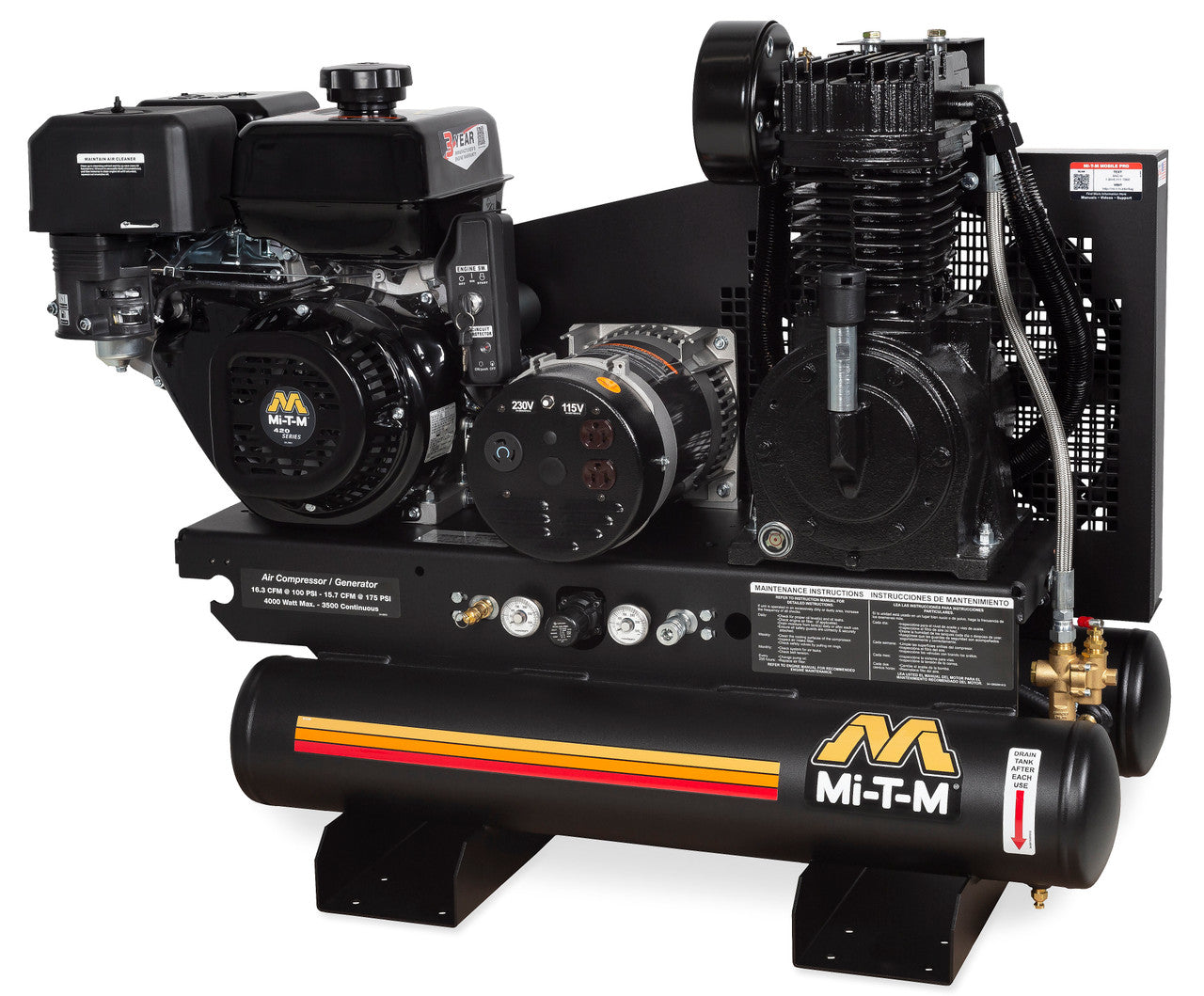

MI-T-M AG2-SM14-08M1E 8 Gallon Two Stage Combination

**Includes electric start , Battery box and cables NOT included.

Choose this gasoline air compressor and generator combination for unmatched performance, supplying air power and electricity to any jobsite.

Compressor Pump

Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator

Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Frame

Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components

Regulator and two gauges for tank and outlet pressure · 150-PSI maximum rated regulator · Manual drain valves for proper maintenance · 12 or 16½-inch fly wheel · Quality pilot valve unloader

Specifications

• CFM @ PSI | 16.4 @ 90
• CFM @ PSI | 15.7 @ 175
• Alternator Wattage: Max. Output | 4000 watts
• Alternator Wattage: Cont. with Comp. On-Load | 2300 watts
• Alternator Wattage: Cont. with Comp. Off-Load | 3500 watts
• Displacement/ Engine | 420cc Mi-T-M OHV

Weights & Dimensions

• Net Weight | 372.00 lbs.
• Shipping Weight | 472.00
• Length | 44.00 in.
• Width | 22.00 in.
• Height | 34.00 in.

Optional Accessories

Options - must be ordered with unit and cannot be added later

• AX-0028 Lifting Hook | For easier portability
• AX-0075 Idle Down | When activated it automatically throttles down engine to conserve fuel, start/stop control set at 145 to 175-PSI
• AX-0070 Battery Tray, Box and 2-Foot of Cables | Attaches to engine side of unit
• AX-0016 Battery, Battery Tray, Box and 2-Foot Cables | Attaches to engine side of unit
• AX-0095 Remote Start/Choke, Sealed Cable | 7-foot wire extension for key switch

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
Equipped with electric start – battery, box and cables not included.
