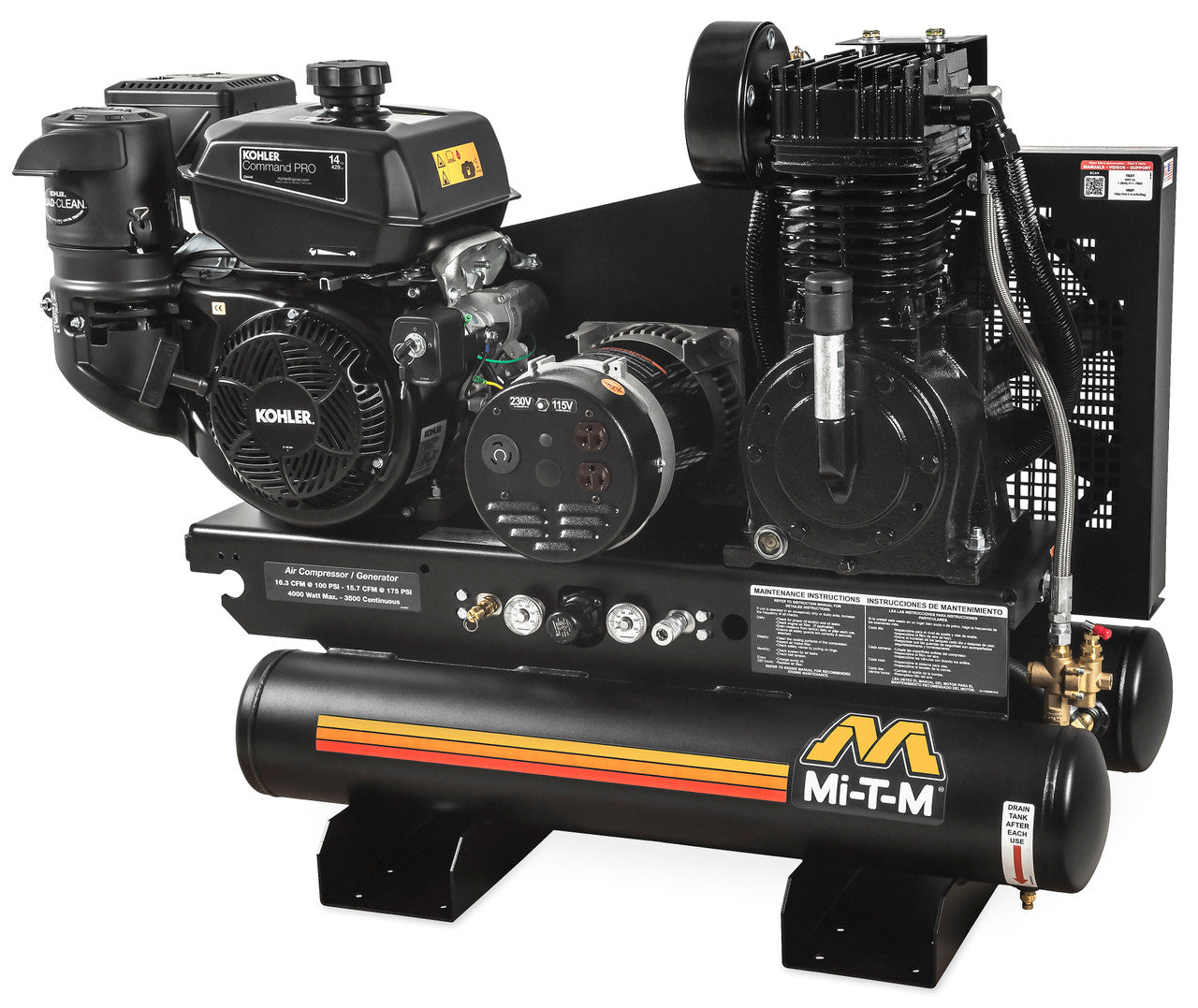

MI-T-M AG2-SK14-08M1E 8 Gallon Two Stage Combination

***INCLUDES ELECTRIC START  BATTERY BOX AND CABLES NOT INCLUDED***

Choose this gasoline air compressor and generator combination for unmatched performance, supplying air power and electricity to any jobsite.

Compressor Pump

Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator

Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Frame

Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components

Regulator and two gauges for tank and outlet pressure · 150-PSI maximum rated regulator · Manual drain valves for proper maintenance · 12 or 16½-inch fly wheel · Quality pilot valve unloader

Specifications

• CFM @ PSI | 16.4 @ 90
• CFM @ PSI | 15.7 @ 175
• Alternator Wattage: Max. Output | 4000 watts
• Alternator Wattage: Cont. with Comp. On-Load | 2300 watts
• Alternator Wattage: Cont. with Comp. Off-Load | 3500 watts
• Displacement/ Engine | 429cc Rehlko CH440 OHV

Weights & Dimensions

• Net Weight | 372.00 lbs.
• Shipping Weight | 472.00 lbs.
• Length | 44.00 in.
• Width | 22.00 in.
• Height | 34.00 in.

Optional Accessories:

Options - must be ordered with unit and cannot be added later

• AX-0028 Lifting Hook | For easier portability
• AX-0070 Battery Tray, Box and 2-Foot of Cables | Attaches to engine side of unit
• AX-0016 Battery, Battery Tray, Box and 2-Foot Cables | Attaches to engine side of unit

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.
Equipped with electric start – battery, box and cables not included.
