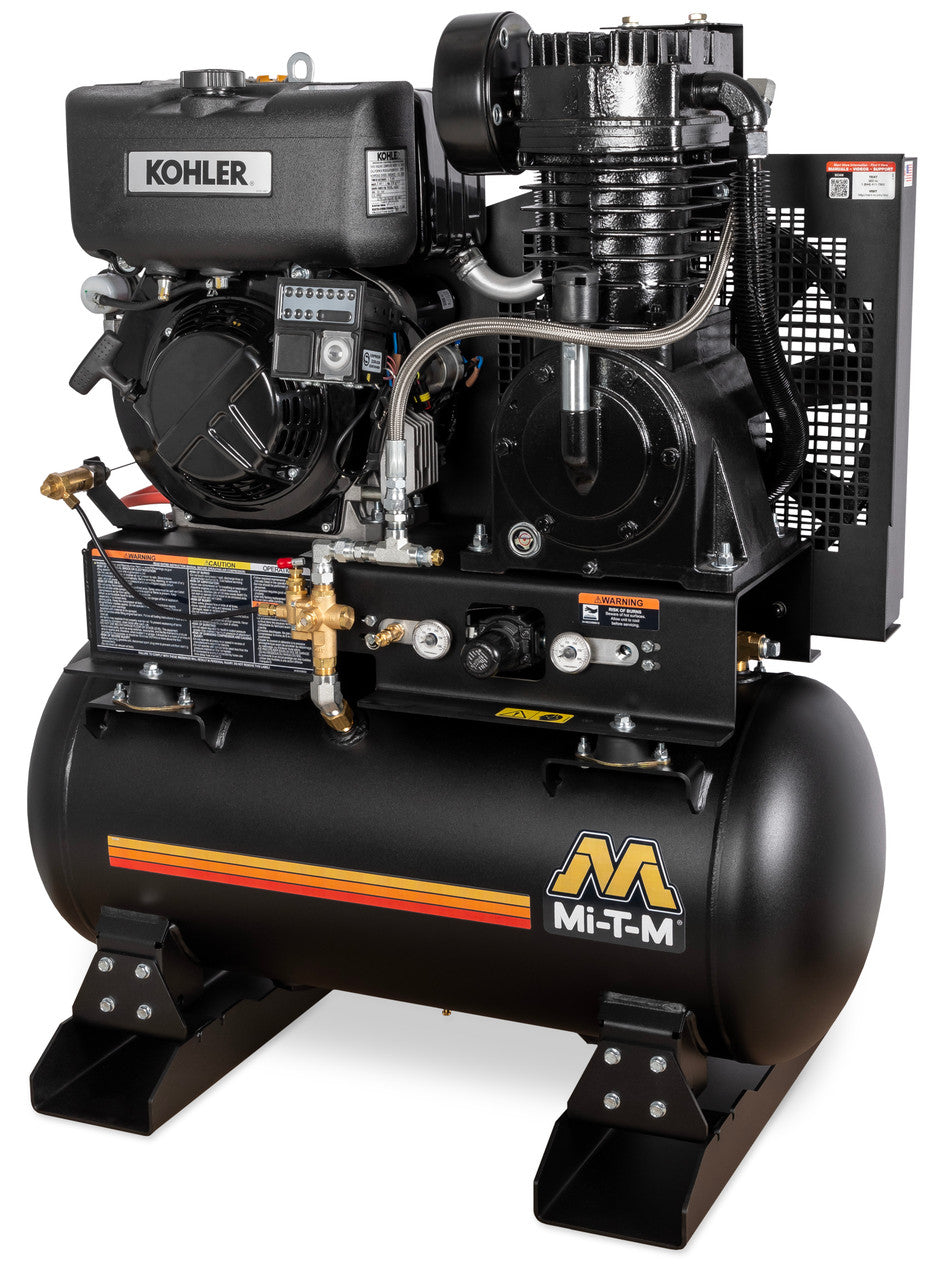

MI-T-M ABS-9KD-30H 30-Gallon Two Stage Diesel

Designed for optimum performance, the new diesel 30-gallon air compressor features a large-capacity ASME coded tank and two stage, cast iron compressor pump. This high-powered unit supplies consistent air flow required for commercial and industrial applications.

Compressor Pump

• Splash lubricated
• Stainless-steel braided discharge hose
• Large canister intake filter
• Oil level sight indicator

Engine

• Electric start - battery, box and cables not included
• Glow plug equipped engine for easy starting in cold temperatures

Frame

• Powder coated ASME coded 30-gallon receiver tank
• 3/16-inch base plate to reduce vibration
• 16 gauge powder coated two-piece belt guard
• Removable base plate offers flexible installation

Components

• Regulator and two gauges for tank and outlet pressure
• ASME safety valves
• Tank drain valve

*Equipped with 150-PSI maximum rated regulator.

Specifications:

• CFM @ 175 PSI | 29.0
• Horsepower/ Engine | 9.1 HP Kohler KD440 OHV
• Compressor | Two stage, cast iron
• Tank Size | 30-Gallon
• Engine Idle Control | Cable throttle

Weights & Dimensions:

• Net Weight | 483 lbs.
• Shipping Weight | 540 lbs.
• Length | 38 in.
• Width | 23 in.
• Height | 46.5 in

Limited Warranties:

• 2 Year Pump Exchange

• 3 Year Kohler Engine

• ASME - UM
