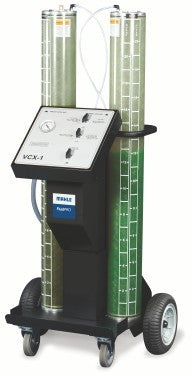

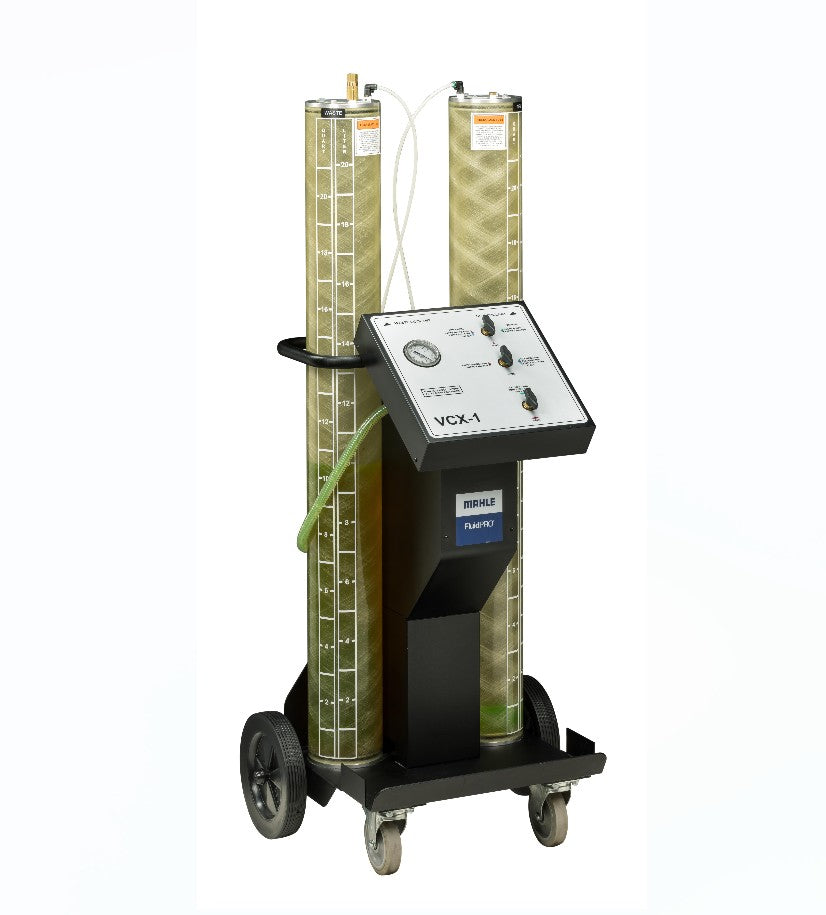

MAHLE VCX-1 Vacuum Coolant Exchanger, Two Tube Design

2nd Generation made with Fiberglass tubing

Features:

• Effective. Four transparent, large capacity cylinders; three for new coolant and one for waste.

• Color-Coded Function Valve. For easy control and operation.

• Adaptable. Easy coolant selection/changeover for flexible adaptation of most vehicles.

• Fast. Service cycles of 5-15 minutes for increased productivity.

• Vacuum Gauge. For complete exchange efficiency.

• Pressure Relief Valve. Located on waste fluid cylinder for increased safety.

• No-Leak End Cap Design. Reduces coolant waste.

• Convenient. Powered by shop air.

Specifications:

• Part Number | 470 80019 00

• Adapters | 2 Cone plugs; 8 in (20 cm) hose adapter

• Controls | Ball valves w/ color-match system

• Coolant Cylinders | 20 quart (18.9 liter) each

• Dimensions | 63"h x 28"w x 22.5"d (160 x 71 x 57 cm)

• Fluid Tanks / Types | Any coolant type (Fast easy changeover)

• Hoses | Clear, wire reinforced 10 ft. (3 m)

• New Fluid Pump | Venturi vacuum generator; 28 inHg (0.95 bar) maximum

• Power Source | Shop air, 55 to 110 psi (3.8 to 7.6 bar)

• Process Time | 5 to 15 minutes average

• Warranty | 1 Year–parts & labor

• Weight | 166 lb. (75 kg)

Optional Accessories:

• 370 80071 00, VCX Adapter Kit, Consists of cone and hose

• 370 80095 00, VCX Adapter Kit, for Radiator Pressure Relief

• 060 81215 00, VCX Adapter, Cone Plug
