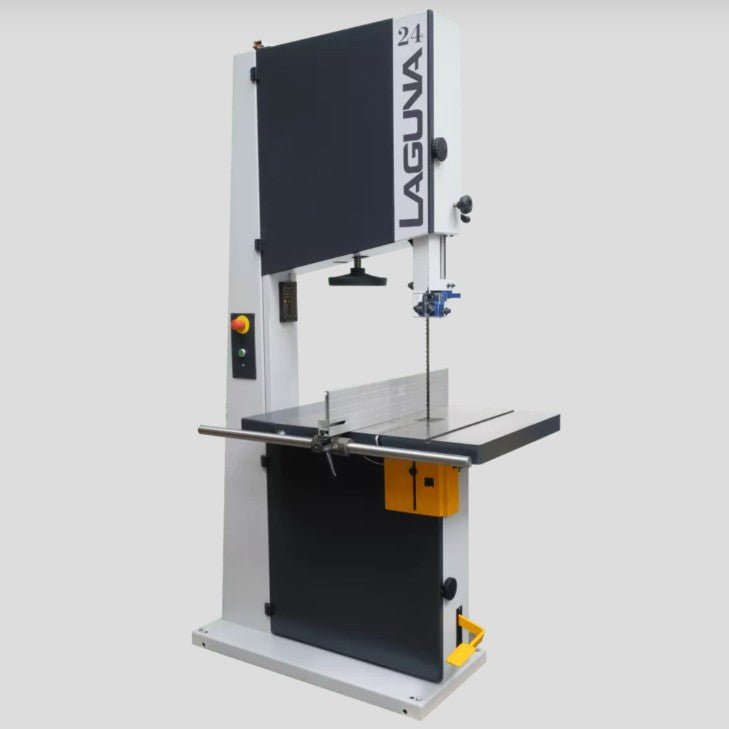

Laguna LT24x17 Industrial Bandsaw

If you are working on jobs that require a large table and extra throat capacity, then this is the machine for you. Boasting a 17-5/8" resaw capacity that is driven by an American made 5 HP, single phase motor and all the trappings known in the Laguna Tools line of bandsaws. The LT24x17 HD Bandsaw features that include geared trunions, EZ Tension indicator, foot brake, high/low fence system and our award-winning Laguna Guide System with Space Age technology. Expect our renowned Laguna quality and built Laguna Tough with all the innovations!

* Blade Not Included *

Specifications:

• Resaw Capacity | 17-5/8"

• Throat Capacity | 23-1/4"

• Blade Length | 183"

• Minimum Blade Width | *1/2" (*with optional Cool Blocks) or ¼″ standard

• Maximum Blade Width | 1-1/2"

• Blade Guides | Laguna Guides

• Upper Guide | Rack and Pinion

• Table Size | 24" x 34-1/2"

• Table Height | 35"

• Fence | High/ow Aluminum Standard

• Overall Height | 84-1/2"

• Base Size | 15"x 41-3/8"

• Dust Port | One 4" Port

• Motor | 5 HP Standard or 7.5 HP Triple Phase (Additional Cost)

• Volt | 220V. Can be ordered 1ph or 3ph

• Recommended Breaker | 30/40 Amp

• Weight | 725 lbs net / 825 lbs ship

• Shipping Dimensions | 36"l x 40"w x 96"h

*Optional cool blocks required for blades less than 1/4"
