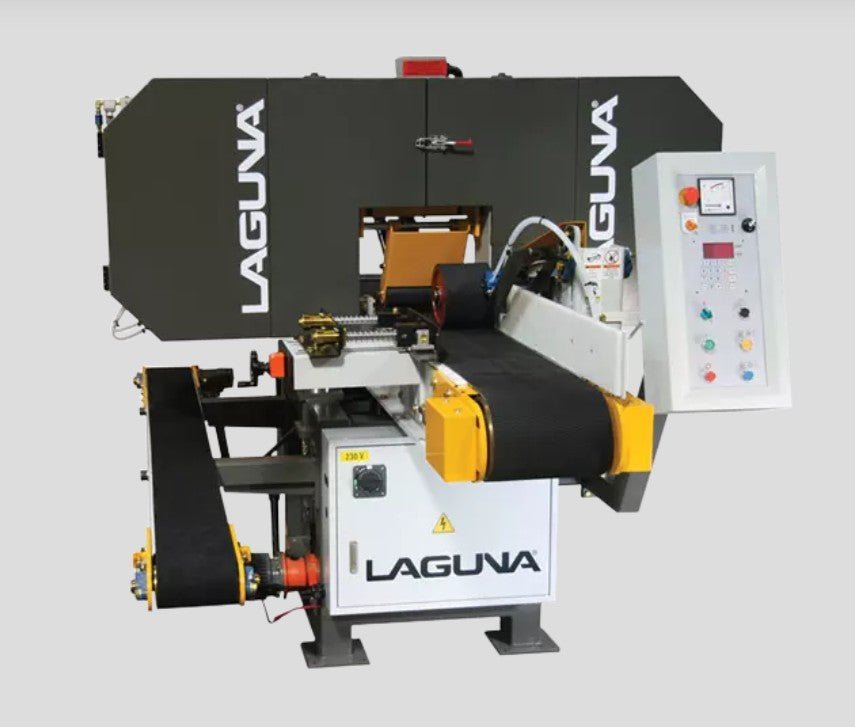

Laguna HRS-28HD Horizontal Band Resaw

The Laguna Tools Platinum Series Horizontal Bandsaw is a powerful tool designed to get your toughest cuts done quickly and efficiently. Blade speed is set through the computer controller at the front of the machine and includes a digital height adjustment as well. The variable speed electric conveyor gets your stock through the saw and returns it for easy repeat cuts.

* Blade Not Included *

Features:

• Computer Controlled Blade With Digital Height Adjustment

• Variable Speed Electric Conveyor and Return Conveyor

• 2" Blade Capacity

• Pneumatic Over Hydraulic Automatic Blade Tension

• 30 HP Motor With Variable Speed By Frequency Converter

• Blade Speed Adjustable via VFD for Optimum Performance

• Pneumatic Blade Lubrication System

• Pneumatically Controlled Hold Down Rollers

• Ball Screw Height Control For Maximum Accuracy

• Headstock Conveyor Is Powered By Separate Variable Speed Electric Motor

Specifications:

• Max Workplace Size | 12"w x 10"h (350mm x 250mm)

• Feed Belt Dimensions | 12" x 216"

• Flywheel Diameter | 28"

• Blade Length | 180"

• Blade Width | 1-¼" – 2"

• Saw Lifting Motor | ¼ HP Electric

• Main Motor | 30HP 220V 3 Phase

• Dust Chutes | 2" x 4"

• Conveyor Speed | 10 – 100ft/min

• Hydraulic Pressure | 308 lbs/in²

• Weight | 4,200 lbs

• Shipping Dimensions | 120"l x 88-½"w x 87"h
