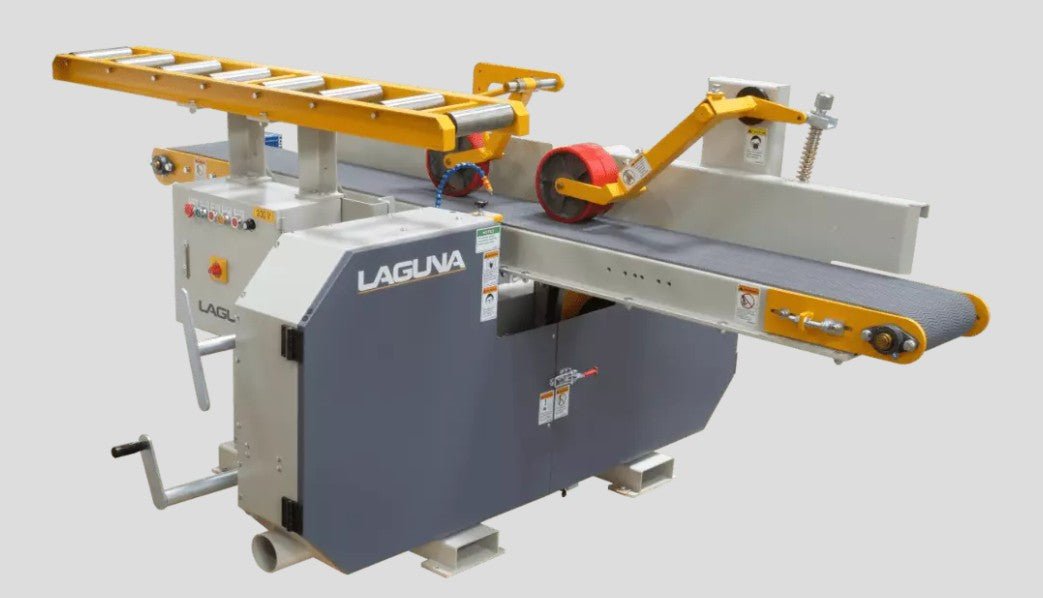

Laguna HRS-28 Horizontal Band Resaw

The HRS-28 Horizontal Band Resaw was designed to be Laguna tough to withstand any jobs thrown at it. We designed this bandsaw to be fully adjustable to accommodate a wider variety of stock so that users can get the most bang for their buck. See the specs below and take the first step toward a truly quality cut.

* Blade Not Included *

Features:

• Manual Blade Tension Control.

• The blade tension is adjusted by turning the tensioning handle.

• Large handle design facilitates blade tension adjustment.

• Easy to Elevate Saw Wheels

• Manual elevation of saw wheels is transmitted through a worm gear mechanism for easy operation.

• Both elevation screws are linked by a shaft to ensure synchronized elevation of saw wheels

Specifications:

• Max. Work Piece Size | 11.8"w x 9.8"h

• Distance From Blade To Conveyor Table | 4-125mm

• Conveyor Belt Size | 11.2" x 215.4"

• In-Feed Speed | 5-25M/min

• Blade Size | 168" x 1"

• Main Motor | 20HP

• Electric Conveyor | 2HP Motor 30 – 1 Gearbox + 2HP Inverter

• Net Weight | 1982 lbs

• Minimum Working Length | 15.7"

• Pressure Roller System For Accurate Cutting Tolerance | ±0.1mm

• Shipping Dimensions | 120"l x 88.5"w x 87"h
