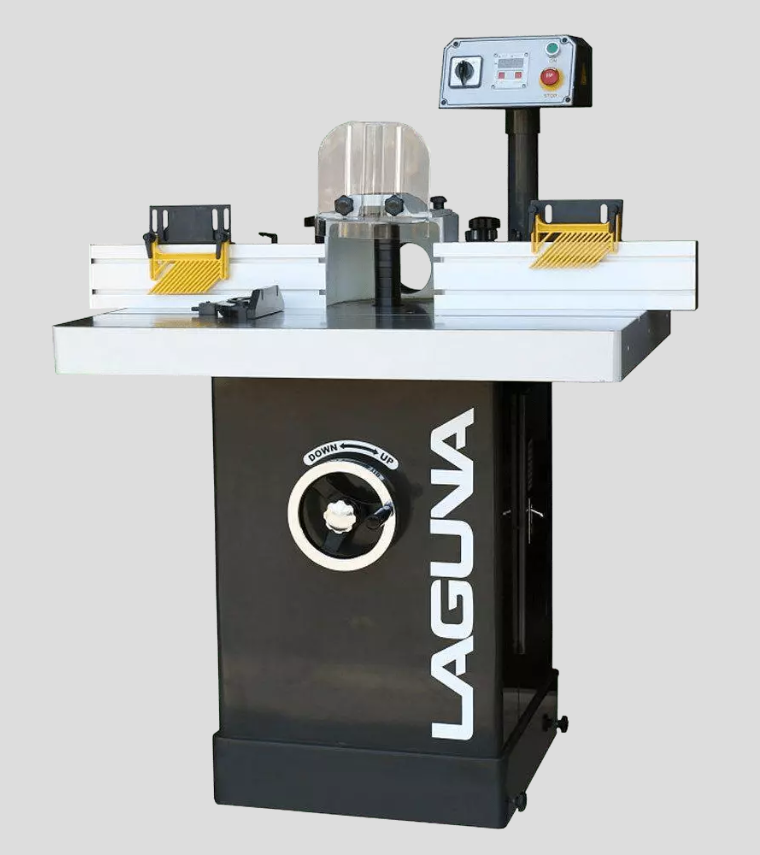

Laguna Classic Pro Shaper 5HP 1 Phase

The Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines. The fit and finish on this machine is top notch and even includes a wheel kit built right into the base. The Laguna Pro Shaper is designed to give you years of trouble free performance without breaking the bank. The table measures an impressive 31″ x 39″ and is predrilled to accept most power feeders. The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16″ adjustment to the fence. Inside you will find a heavy-duty motor available in either 5HP 220 volt 1 phase or 7.5 HP 220 volt 3 phase. Each offers 3 speeds with a unique quick change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel.

Specifications:

• Motor | 5HP 1 Phase 220V
• Table size | 39-5/16″ x 31-7/16″ x 3-1/2″
• Spindle travel | 4″
• Spindle Sizes | 3/4″ and 1-1/4″
• Capacity Under Nut | 6″(For 1-¼″) and 4″(For ¾″)
• Router Collets | ¼″ and ½″
• Spindle Speeds | 5000, 7000, 10000 RPM
• Table Opening Diameter | 7-5/16″
• Digital Readout | Standard
• Direction | Forward/Reversing Switch
• Fence | Micro Adjustment
• Weight (Net/Ship) | 640/720 lbs
• Shipping Dimensions | 43″L x 43″W x 60″H
