Kukko KS-2030-1-193+S 2- and 3-jaw Universal Puller Set

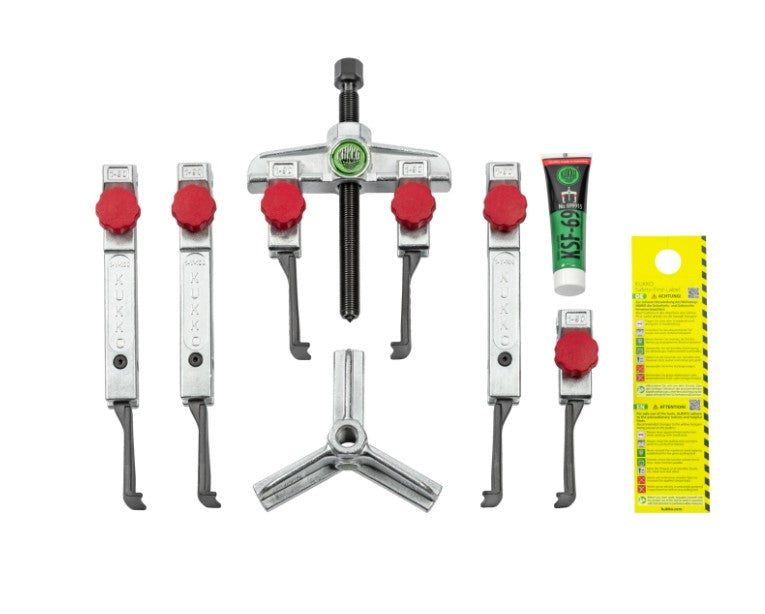

The 9-piece Universal Puller Set with narrow puller jaws from the series KS-2030-1-193+S is used for pulling bearings, gears, discs, etc. in tight and hard-to-reach spaces in crafts, industry, and workshops. The kit allows switching between 2-jaw and 3-jaw pullers and different jaws, resulting in 4 different variations.

Features:

• Application-oriented assembly for universal use

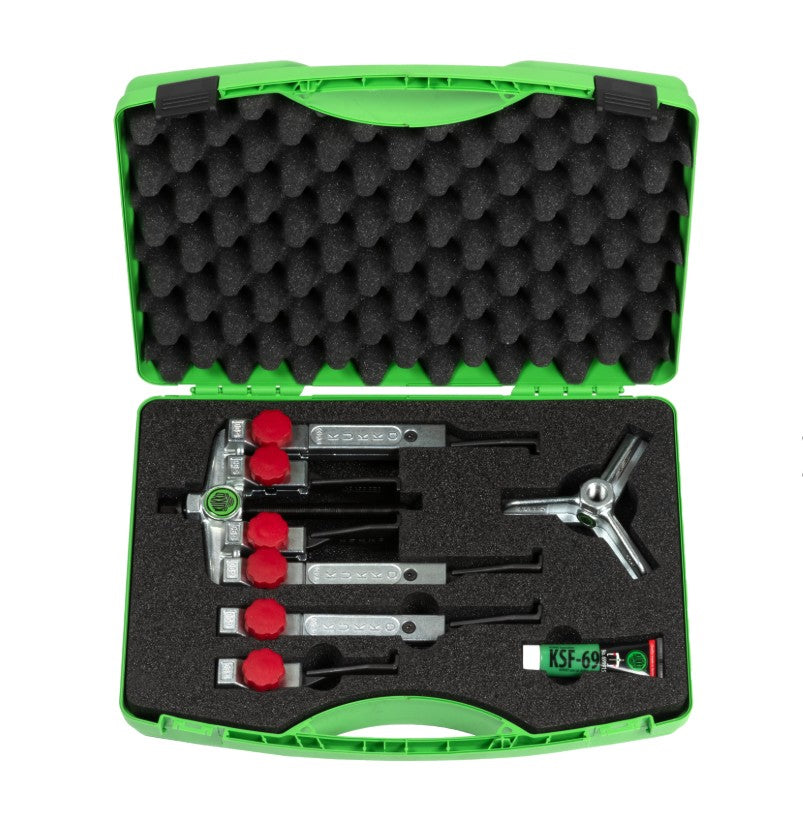

• By storing it in the box, the completeness of the set can be easily overviewed.

• Narrow puller jaws optimally grip in tight and hard-to-reach places.

• Simple manual release of jaws using hand knob (Quick Adjust Technology)

• Application also for eccentric components through freely movable, sliding puller jaws on the crossbar.

• Hexagonal profile on the crossbar for secure counterholding

• Non-slip suspension of the claw in the sliding piece (Armlock Technology)

• Safe setup of the spindle through a swivel spindle tip on both smooth surfaces and during centering (Switch Technology)

• Optional convertible from an External Puller to an Internal Extractor by flipping the Jaws.

• Anti-slip safety (spindle neck) at the spindle head for safe work with wrench.

• Spindle outlet for thread protection

Specifications:

• Outer pull-off span (min. - max.) | 0 - 3-9/16" (0-90mm)

• Clamping depth (min. - max.) | 0 - 7-7/8" (0-200mm)

• Inner pull-out span (min. - max.) | 2-3/4" - 5-1/2" (70-140mm)

• Width across flats hexagon socket | 11/16" (17mm)

• Max. tensile force | 45 kN

• Max. Tractive force | 4.96 US t (4.5 t)

• Gross Weight | 9305 lb (4,22 kg)

• Components | 20-1+S, 1-193-S, 1-93-E, 30-1-T

• CO2 footprint | 5kg, 53 CO₂e

• Global sales capability given | Yes (REACH, RoHS, POP, PROP65, TSCA)

• Shipping Weight | 10 lbs

• Case Dimensions | 15-1/2"w x 11-5/8"l x 4-1/8"h (395mm x 295mm x 106mm)
