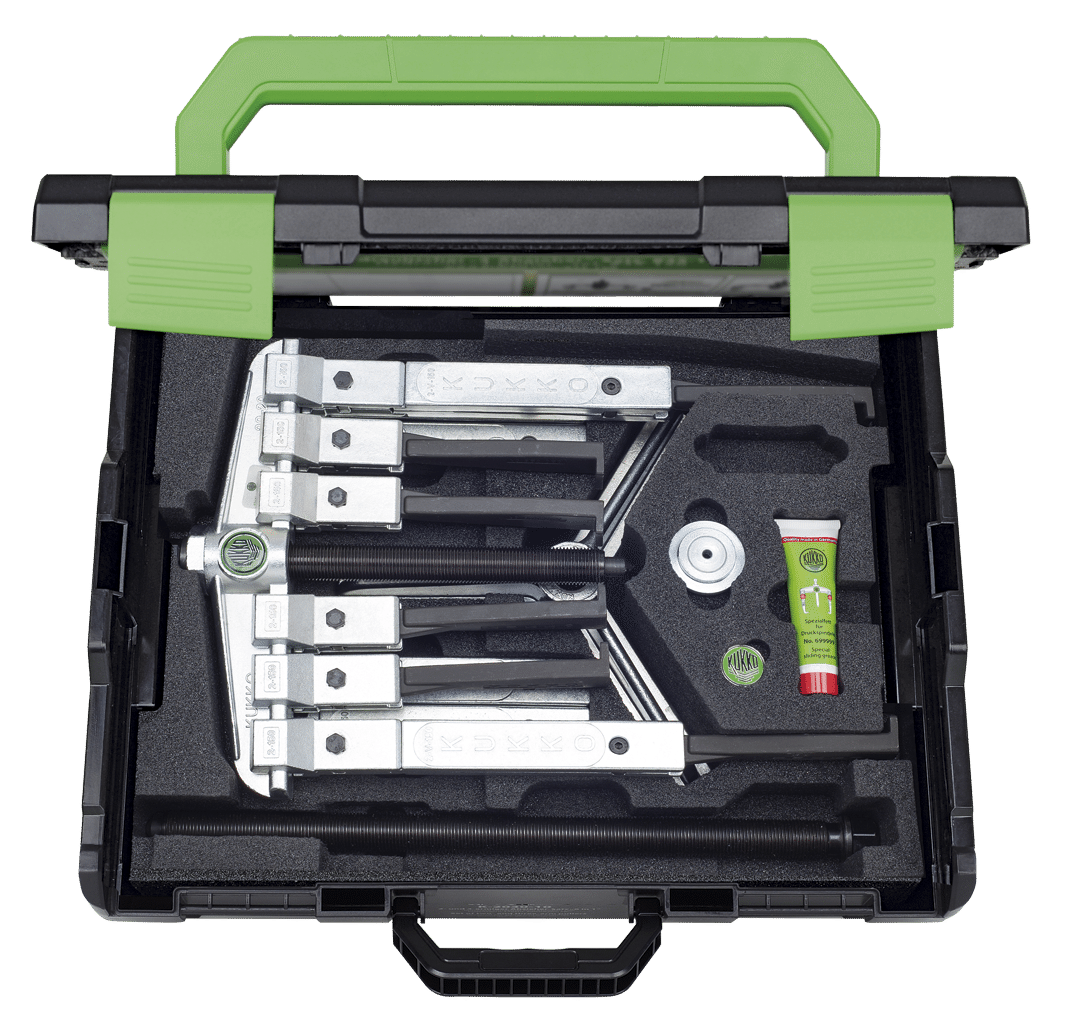

Kukko K-2030-20-S Set of Two- and Three-arm Pullers w/ Narrow Jaws

This Kukko K-2030-20-S Puller Set is used for removing large bearings, gears, discs, etc. for tight or difficult-to-access spaces.

Description:

• 7 in 1" kit in the tried-and-tested KUKKO-L-Boxx system.
• The set facilitates the assembly of seven pulling device models through the combination of pulling jaws and extensions.
• Flexibility assured thanks to two-arm or three-arm design.
• Narrow pulling jaws.
• Jaw extensions.
• Parallel pulling hooks in every position, even with full load.
• Pulling hooks with infinitely variable adjustment on the cross-beam.
• Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
• Short and long mechanical pressure screws.
• Milled thread treated with special coating.
• Includes a pressure pad set for supporting the pressure spindle in a hollow shaft.
• If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller.
• Instructions on the cover.
• Secure storage in special foam.
• Personal KUKKO-Chip-Code.

Advantage:

• Practical package for universal use.
• The thin pulling hooks are suitable for narrow, difficult-to-access locations.
• Variable reach thanks to optional jaw extensions.
• Can be installed on various pulling hooks.
• Turning the pulling hooks enables them to be used both internally and externally.
• Suitable for pulling asymmetric workpieces.
• 2-arm cross bar with hexagonal profile for good grip.
• Spindle head band prevents the wrench from slipping off.
• Almost all components available as replacement parts, time-saving order process thanks to numbering system.
• Complete easy-to-manage package.
• KUKKO-L-Boxx-System compatible with systems by all common manufacturers.

Specifications:

Content:

• 621220 | Mechanical pressure spindle.
• 621355 | Mechanical pressure spindle.
• 600-17 | Pressure pad bricks
• 2-151-S | 3 narrow jaws (set)
• 2-301-S | 3 narrow jaws (set)
• 2-V-150-P | 2 jaw extensions (pair)
• 30-20-T | Puller product range - industrial - BASIC
• 2-151-E | Jaws (individual)
• 20-20-T | 2-jaw cross bar
• 30-20-T3 | 3-jaw cross bar
• 2-301-E | Jaws (individual)

Spare Parts (Sold Separately):

• 621220 | Mechanical pressure spindle.
• 621355 | Mechanical pressure spindle.
• 600-17 | Pressure pad bricks
• 2-151-P | 2 narrow jaws (pair)
• 2-301-P | 2 narrow jaws (pair)
• 2-151-S | 3 narrow jaws (set)
• 2-301-S | 3 narrow jaws (set)
• 2-V-150-P | 2 jaw extensions (pair)
• 2-V-150-S | 3 jaw extensions (set)
• 30-20-T | Puller product range - industrial - BASIC
• 20-20-T | 2-jaw cross bar
• 30-20-T3 | 3-jaw cross bar

Assembly Set For:

• 20-20-S | Universal 2-jaw puller with narrow jaws
• 30-20-S | Universal 3-jaw puller with narrow jaws
• 20-20-45-S | Universal 2-jaw puller with narrow, extended jaws - NO PURCHASING ARTICLE
• 20-20-6-S | Universal 2-jaw puller with narrow, extended jaws - NO PURCHASING ARTICLE
• 30-20-45-S | Universal 3-jaw puller with extended jaws - NO PURCHASING ARTICLE
• 20-20-3-S | Universal 2-jaw puller with narrow, extended jaws - NO PURCHASING ARTICLE
• 30-20-3-S | Universal 3-jaw puller with extended jaws - NO PURCHASING ARTICLE

How It Works:

• The part due to be removed (e.g. a gear, pulley or ball bearing) is gripped from the outside. Tightening of the pressure screw and the resulting pressure removes the part from the shaft.
• The puller must be positioned centrally for centre shafts. If the shaft is not sitting centrally, the parts can be removed asymmetrically with pullers with parallel pulling hooks.

Safety Information:

• The pulling hooks' sliding parts must always sit stably and fully on the cross-beam.
• If several parts have to be removed, always follow a step-by-step process. Do not remove several parts at the same time.
• The pulling hooks' support surfaces must always be straight and sit fully beneath the part to be removed.
• Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
• Protective blanket required.
• Protective goggles required.

KUKKO quality standards:

• Quality made in Germany.
• Strong design, high performance and long service life.
• Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom IV).
• Safety label to ensure protection of intellectual property.
• A tube of KUKKO special grease included for pressure spindle.

PLEASE NOTE, IMPORTANT INFORMATION:

• MADE IN GERMANY
