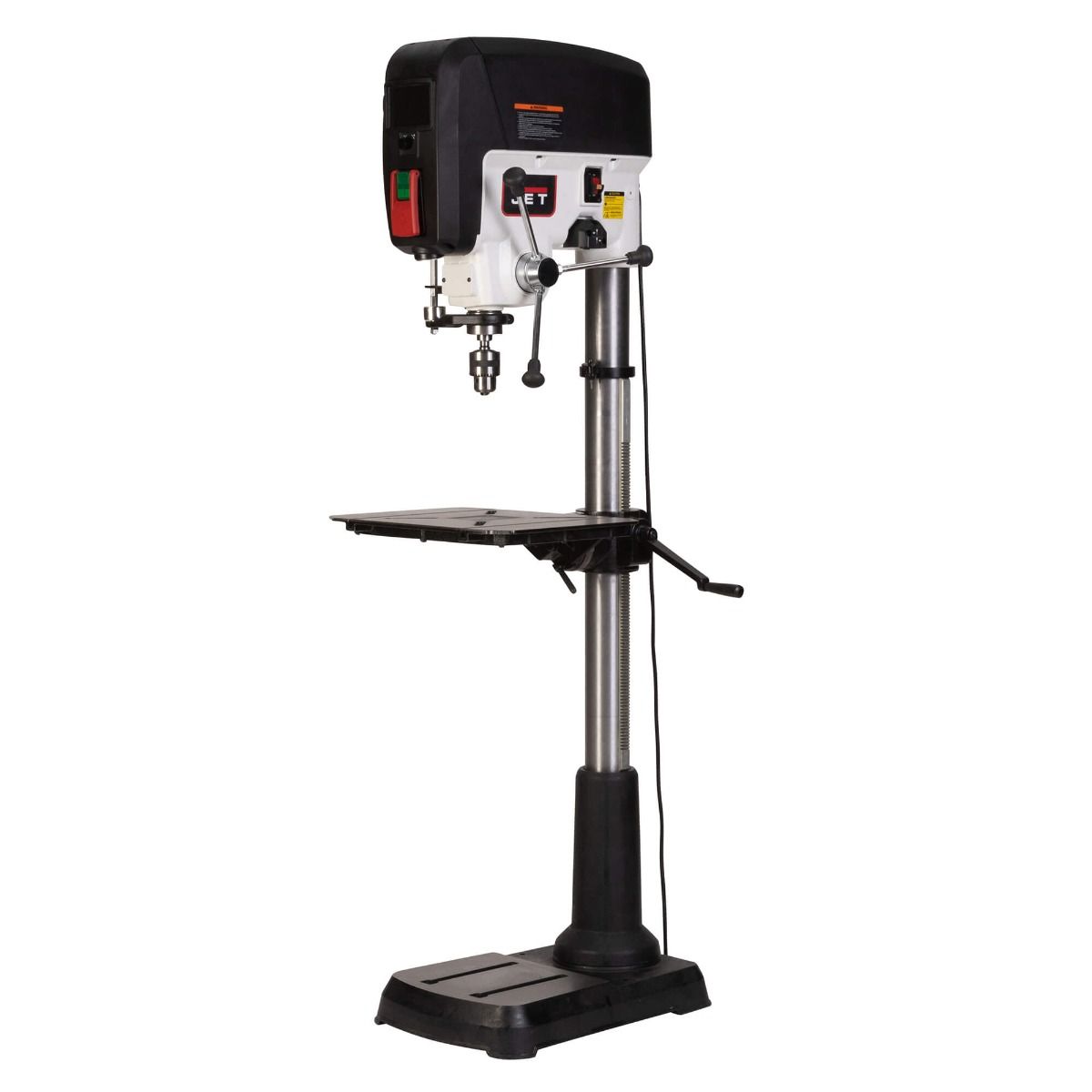

Jet JDP-20S 20" Smart Drill Press

Meet the JET JDP-20S. The first true Smart Drill Press in the JET lineup, built to redefine precision, power, and ease of use in woodworking. This floor-standing machine combines advanced digital intelligence with industrial-grade performance, unlocking new capabilities for pros, schools, and serious DIYers.

Ideal For:

• Professional Woodworkers

• Advanced DIYers

• Educational Institutions

• Light Manufacturing

• Users who want precision, ease of use and repeatable results

Features:

• Smarter Work Starts Here: A vibrant 5" touchscreen user interface puts control at your fingertips, with 22 tool types, 15 customizable user presets, and RPM recommendations based on your bit and material. The intuitive interface is built for all skill levels. Woodworkers can lock settings with password protection to prevent unauthorized users or setting changes.

• No Guesswork, Just Results: Built-in load monitoring, preset memory, and a guided interface mean every user gets professional results with minimal setup time.
  Bigger Capacity, More Possibilities: Featuring a 20" swing, 6" spindle travel, and a tilting cast-iron table, this is the largest and most versatile drill press JET has ever made.

• Engineered for Performance: The 1.5 HP brushless motor delivers smooth, consistent power for demanding jobs, with better reliability, less wear, and quieter operation than belt-driven systems. The integrated LED light and laser guide illuminate your work and ensure precise bit alignment for fewer mistakes.

• Competitive Edge: Outperforms the competition with smarter technology, easy to use touch-screen interface and an industry leading 5 year warranty.

Specifications:

• Model Number | JDP-20S

• Stock Number | JT1-2060

• Motor Type | Brushless

• Horsepower | 1.5 HP

• Phase | Single

• Voltage | 115/230V

• Cycle | 60Hz

• Power Transfer | Motor Direct Drive

• On/Off Switch | Push Button with Safety Key, Paddle Stop

• Spindle RPM | Continuously Variable Speed from 150 to 3000 RPM

• Swing | 20" (508 mm)

• Chuck Style and Shank Capacity | Keyed, 5/8" (16 mm)

• Chuck Arbor Taper | MT-2 to JT-3

• Spindle Taper | MT-2

• Spindle Travel, Maximum | 6" (152 mm)

• Spindle Travel Per One Revolution of Handle | 6" (152 mm)

• Quill Diameter | 2.6" (66 mm)

• Number of Spindle Speeds | Continuously Variable Speed

• Maximum No-Load Speed Range | 150 to 3000 RPM

• Maximum Spindle to Table Distance | 27.63" (702 mm)

• Maximum Spindle to Base Distance | 46.45" (1180 mm)

• Maximum Chuck to Table Distance | 24" (610 mm)

• Minimum Chuck to Table Distance | 1.5" (35 mm)

• Maximum Chuck to Base Distance | 42.9" (1090 mm)

• Work Lamp Light | Integrated LED

• Depth Stop Type | 6" Mechanical Hard Stop

• Head Cast | Iron

• Table | Precision-Ground Cast Iron

• Table | Insert MDF

• Column | Steel

• Base Cast | Iron

• Table Size | 20.24" L x 13.94" W (514 x 354 mm)

• Table Slots (4) | 3-1/8" L x 5/8" W (79 x 15 mm)

• Table T-Slots (2) | 3/8" W x 5/8" D (9 x 15 mm)

• Distance Between T-Slots (centers) | 8-7/16" (317 mm)

• Table Tilt | 90 deg. L and R

• Table Rotation Around Column | 360 deg.

• Table Elevating System | Worm Gear with Rack

• Table Insert | 3.74" x 3.74" (95 x 95 mm)

• Recommended Maximum Weight on Table | 66 lb (30 kg)

• Base Size | 23.8" L x 15.9" W (604 x 404 mm)

• Base Working Surface | 11.42" L x 12.6" W (290 x 320 mm)

• Base Slots (2) | 5/8" W x 7-7/8" L (15 x 200 mm)

• Distance Between Base Slots (centers) | 5-5/16" (135 mm)

• Column Diameter | 3.35" (85 mm)

• Overall Dimensions | 24" L x 25.5" W x 71.5" H (602 x 646 x 1804 mm)

• Net Weight | 218.46 lb (99.3 kg)
