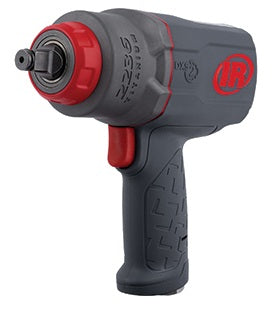

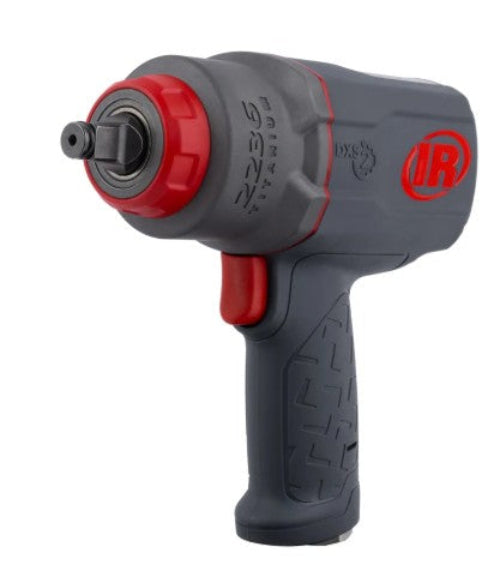

Ingersoll Rand 2236QTiMAX High Visibility Series 1/2" Air Impact Wrench

REPLACES 2235QTIMAX

Ingersoll Rand, a global leader in reliable and innovative power tools, has introduced a new series of ½” impact wrenches. Featuring the patented DXS Drive Xchange System that uses a proprietary spline-type interface and 10 different interchangeable drives, the 2236 MAX Series allows operators to quickly configure the tool to fit the job at hand. When used with the newly introduced DXS Impact Sockets, these tools deliver 15% more torque to provide even more flexibility – making them the most effective compact impact wrenches on the market today. The unique patented motor design delivers 1,500 ft-lbs of breakaway torque, while the patented Direct Greasing System provides more efficient, reliable operation and increased run time. With a total length under 7.4", technicians have more access to tight spaces. Additionally, the smaller, lighter design is better balanced for comfortable all-day use.

Features:

• Versatility meets power in the new Ingersoll Rand 1/2" pneumatic impact wrench.
• The pending -patented Drive Xchange System™ lets you switch out anvils without clunky adapters that drain your tool’s power.

• With 10 different available drive options including 3/8", 1/2", and 3/4" standard length and five extended lengths from 2 to 10 inches, you can do more work with less equipment.

• The 2236 series impact wrench operates powerfully with 1,500 ft-lbs of breakaway torque – 200 more ft-lbs than its predecessor.

• Thanks to a patent-pending 2-piece anvil system, you can directly grease the tool’s hammers for increased run time. The iconic titanium hammer case returns in the 2236 series for more unyielding durability.

• A patented-pending increased dwell motor gives the tool more airflow and raw power.

• A new airflow path design helps make this impact wrench 4 decibels quieter from a patented motor design.

Specifications:

• Configuration | Pistol

• Actuation | Trigger

• Drive Size | 1/2"

• Drive Type | Square

• Breakaway Torque | 1500 ft-lb (2034Nm)

• Max Reverse Torque | 1000 ft-lbs (1356Nm)

• Blows per minute | 1350

• Max Free Speed (RPM) | 8500

• Impacting Sound Level dB(A) (pressure/power) | 94.2

• Weight | 4.4 lbs (1.99kg)

• Length | 7.36" (187mm)

• Air Inlet NPT | 1/4"

• Min Hose Size | 3/8" (10mm)
