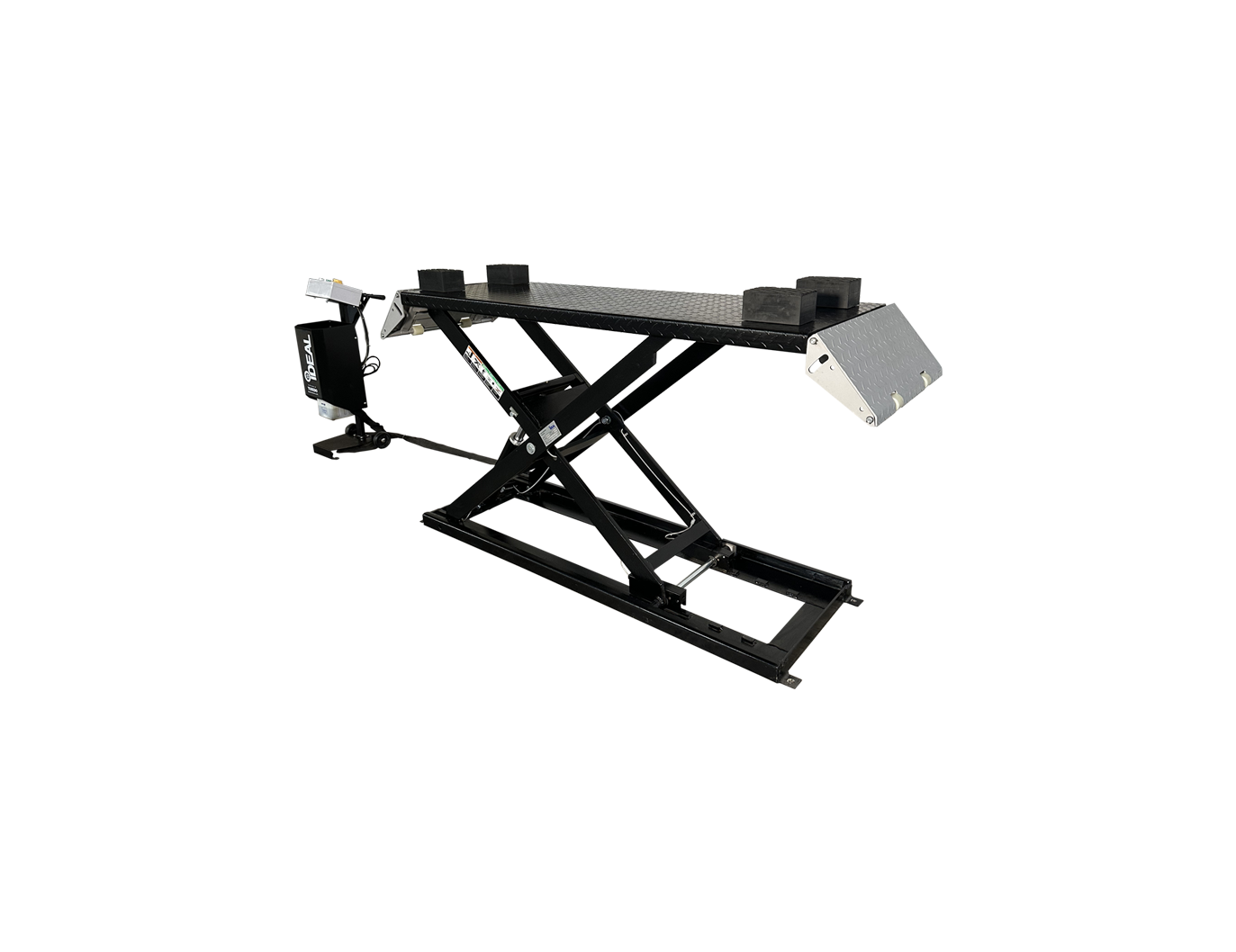

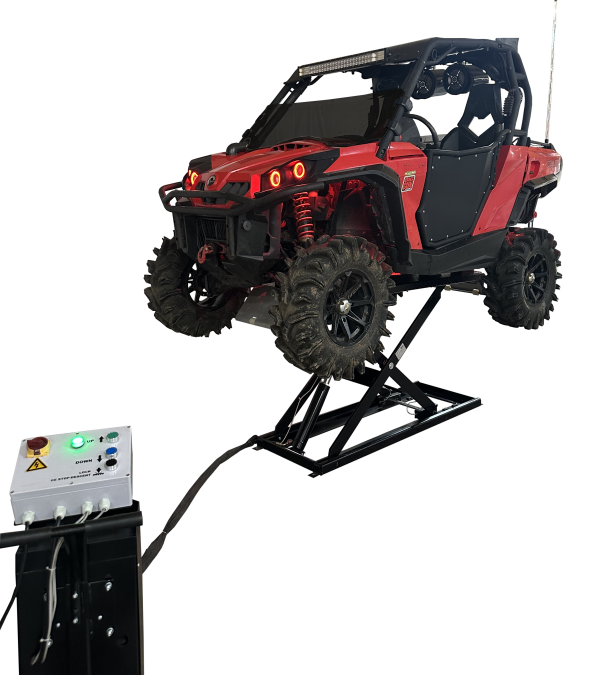

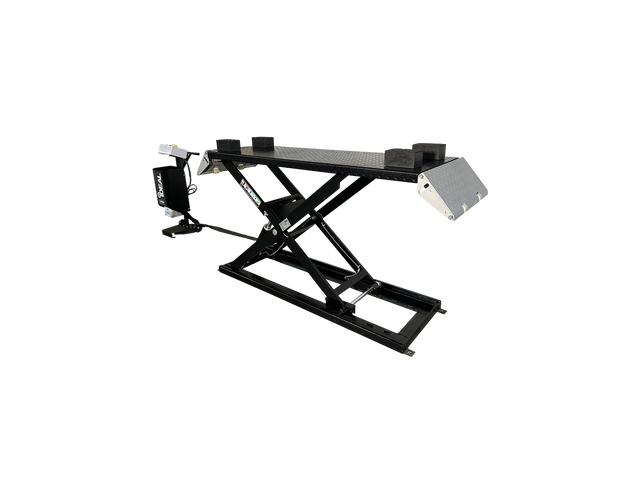

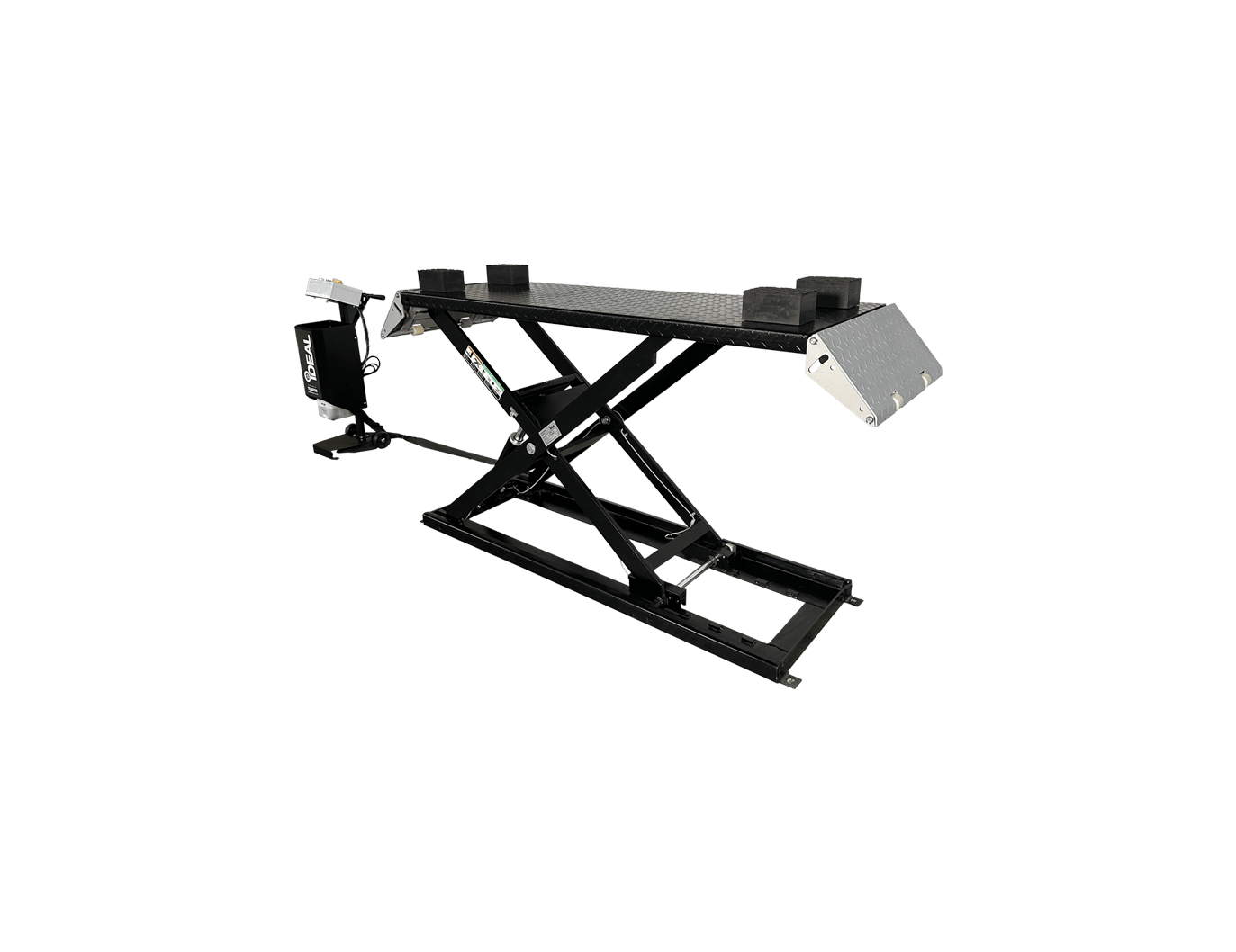

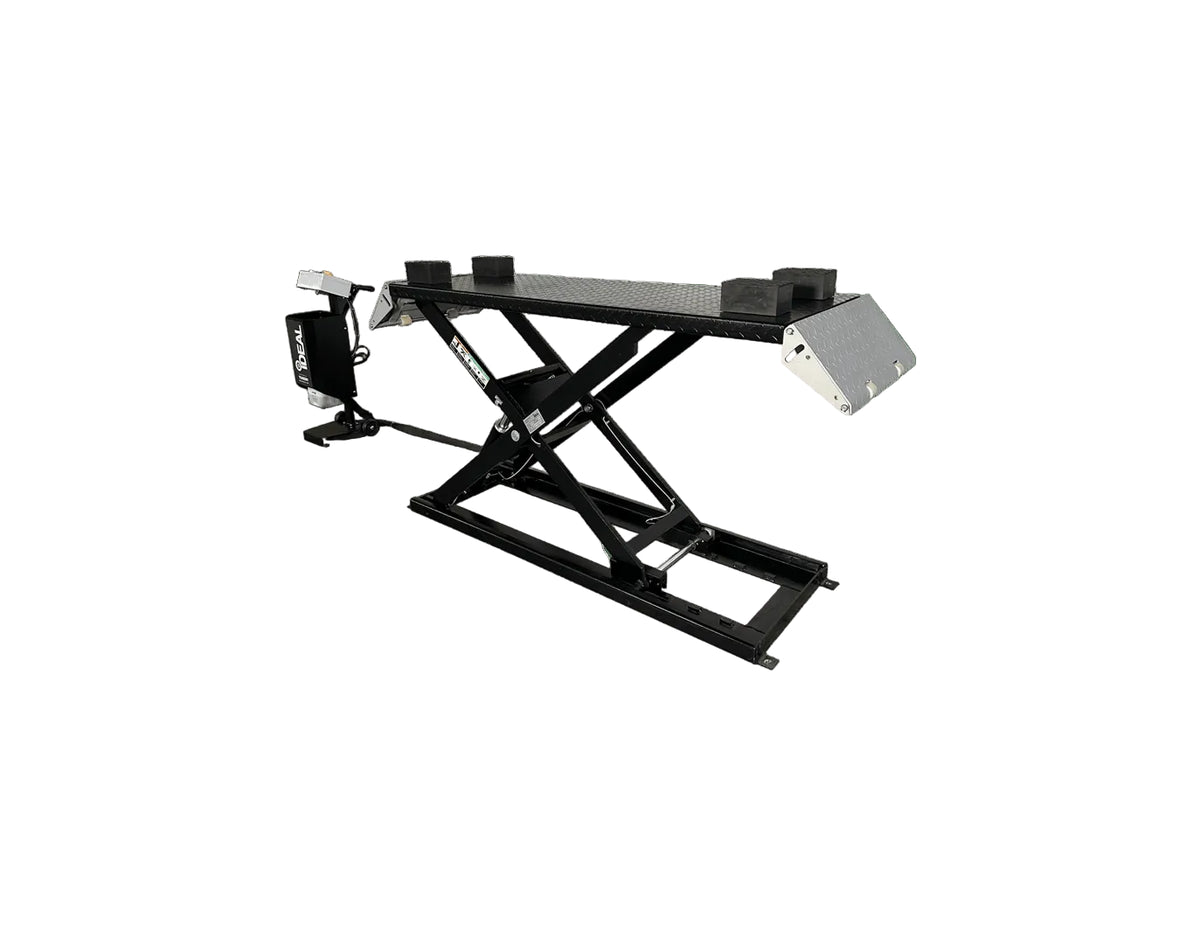

Ideal UF-2500EH-X Pro Series Frahm Engaging Utility and All Terrain Lift

iDEAL, Electric / hydraulic UTV frame lift

Features:

• Exclusive ‘wheels free’ design for the largest UTVs to smallest ATVs.
• Provides SMALL LIFT FOOTPRINT for ADDITIONAL WORKSPACE
• 2,500 lbs capacity
• 43″ RISE HEIGHT (49” w/ rubber lift pads)
• 24″W X 88.9″L PLATFORM SIZE
• 4.75” MIN. HEIGHT
• Smooth & rapid 110V Electric / Hydraulic operation
• Fully operational control panel W/ ELECTRO-MAGNETIC LOCK RELEASE
• Three locking positions
• Heavy-Duty Diamond Plate Platform & extension Construction
• LOAD BEARING ‘HINGED’ PLATFORM EXTENSIONS
• PORTABLE OR MOUNTED PEDESTAL stand
• Power unit cover w/ storage bin
• RUBBER CONTACT LIFT PADS – 4.75” X 6.5” (4EA)
• Options: WHLSTDKIT-UF2500EH-X

Specifications:

• Capacity | 2500 lbs
• Minimum Height | 4.75"
• Max Lifting Height | 43" to 49.25 W/ Adapter
• Locking Heights | 28" - 36.5"  - 42"
• OverAll Length w/ Ramps | 67" to 89"
• OverAll Width | 24.8"
• Platform Size (L x W) | 67" x 24"
• Pedestal Control Stand Size | 15" L x 11" W x 39" H
• Pedestal / Platform Max Distance | 96"
• Lifting Time | 25 S
• Lowering Time | 25 S
• Power | 110V, 60Hz, 1 PH-18A
• Ship Weight | 740 lbs
