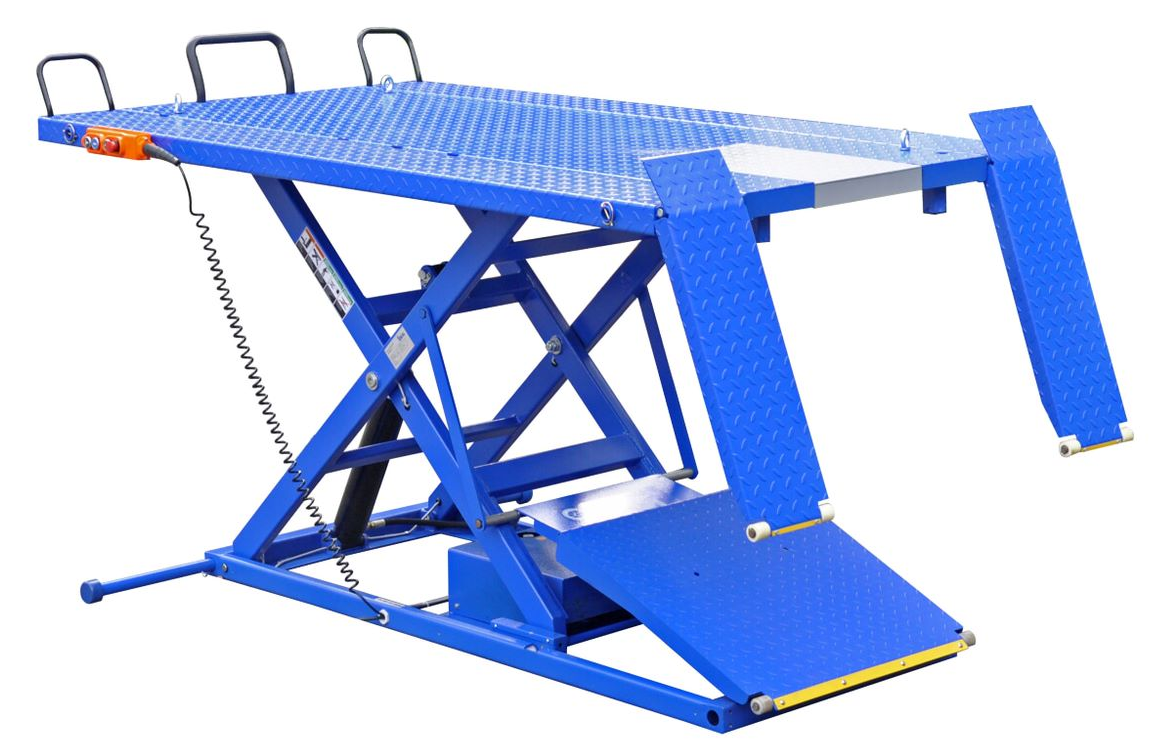

Ideal A-2200-IEH-XR Elec-Hydra ATVLift

PROMO PRICE | OFFER ENDS DECEMBER 1, 2024

The iDEAL A-2200IEH-XR is a 2,200lbs. lifting capacity ATV/Motorcycle Lift Table capable of lifting the heaviest ATV’s on the market today. The integrated 110V electric hydraulic power unit is operated using a hand held pendant that also disengages your safety locks for safe and easy operation. The 50” wide table, including the easily removed ATV side extensions, allows you to lift the widest ATV’s for service. The ability to raise the lift to 47” allows even the tallest technician to work comfortably. Wheel Chock and Vise Sold Separately.

Features:

NEW Retractable Ramp System

• 2,200 lbs. Capacity
• 47″ Rise Height
• 110V Integrated Electric/Hydraulic Power Unit
• Single Point Hand Held Control Pendant for Operation and Lock Release
• Six Locking Positions
• Extended 27.5″ Long Full Width Approach Ramp
• Rear Drop Down Service Panel
• Wheel Stop
• 50″ X 88.6″ Table

Specifications:

• Capacity 2,200 lbs.
• Maximum Lift Height 47.2″
• Minimum Height 7″
• Platform Width 50″
• Platform Length 88.6″
• Power Supply 110V, 60Hz, 1 Phase, 18A
• Overall Width Incl. Stabilizer Bar 58.5″
• Overall Length Including Ramp 116.5″
• Rise Time 30 Seconds
• Descent Time 30 Seconds
• Wheel Chock and Vise Sold Separately.
