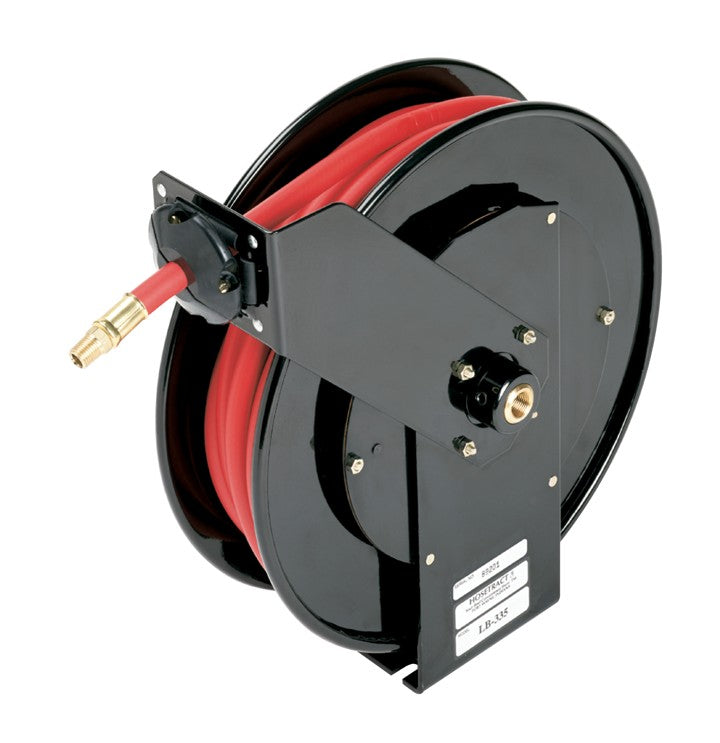

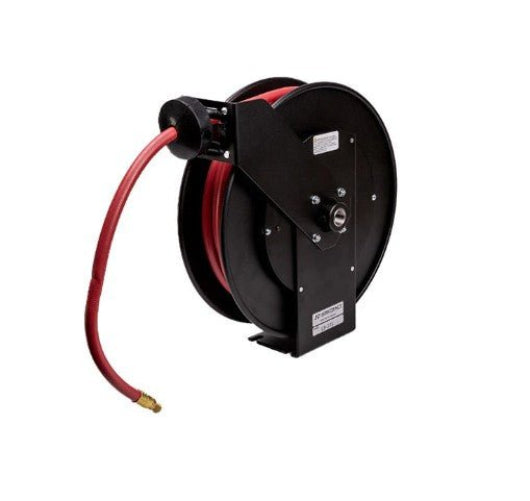

Hosetract LB-200 B Series 1/4 x 50 Low Pressure Hose Reel - MADE IN USA

B-Series all steel hose reels are designed for industrial applications where heavy usage also needs a small footprint to accommodate. Built on a smaller scale with the same components as our workhorse C series reels, this reel’s compact design fits easily into restricted space areas. Heavy gauge base with no welds or bolts, this product will give years of dependable service in high use applications. With a carbon steel outlet swivel and fluid shaft, the reels are available for use in low pressure (300psi), medium pressure (2,000psi) and high pressure (5000psi) applications for air, water, oil, and grease. This product is ideal where hose storage and operating efficiency are needed. Full flow ½” shaft allows maximum delivery to the application point. Four position guide arm allows easy adjustment to the position best suited.

Features:

• Standard Carbon Steel zinc coated Swivel

• Powder Coat finish

• Mounting Slots - 3/8” wide x 3/4” deep for max 5/16” dia. bolt

• Safety banded spring sealed springcase

• Full 1/2" flow path (Low and Medium pressure models)

• Compact design

• Reels shipped standard front hose payout position.

• Nonsparking latch mechanism

• Hose and stop not included

Specifications:

• Warranty | 2 year limited

• Ship Weight | 25 lbs
