HMC Industries SL-6090TRK Trike Lift

***This Package Includes SL-3090 w/ Trike X Package***

Made In America  the SL-6090T Lift Table is the very best trike lift available. The HMC SL-6090T lift table is versatile for trikes, BRP CanAm Spyders, or other 3 wheeled vehicles. The SL-Series lifts incorporate a 1/4" C Channel Frame which has heavy duty boxed support gussets, 1" greaseable pivot pins, Heavy 12 gauge fully boxed table, 1 person removable side extensions, standard rear wheel drop out, and phenolic non-marking wheels. The SL-Series lifts have a rated capacity of 1,200 lbs. With our 7-1/2" closed height and the 32" long ramps, our lifts allow low clearance bikes to have easy access. The center table is an industry leading 90" in length by 30" in width and is designed for drive on drive off by simply adding additional ramps to the front. With the 15" wide quad side extensions the table is Five Feet Wide.  The SL-6090T Lift Table comes standard with 3 ramps.

Features:

• American Made in the U.S.A.

• 60" Wide Table with 2 pcs. of our Quad Side Extension System

• 90" Long Table

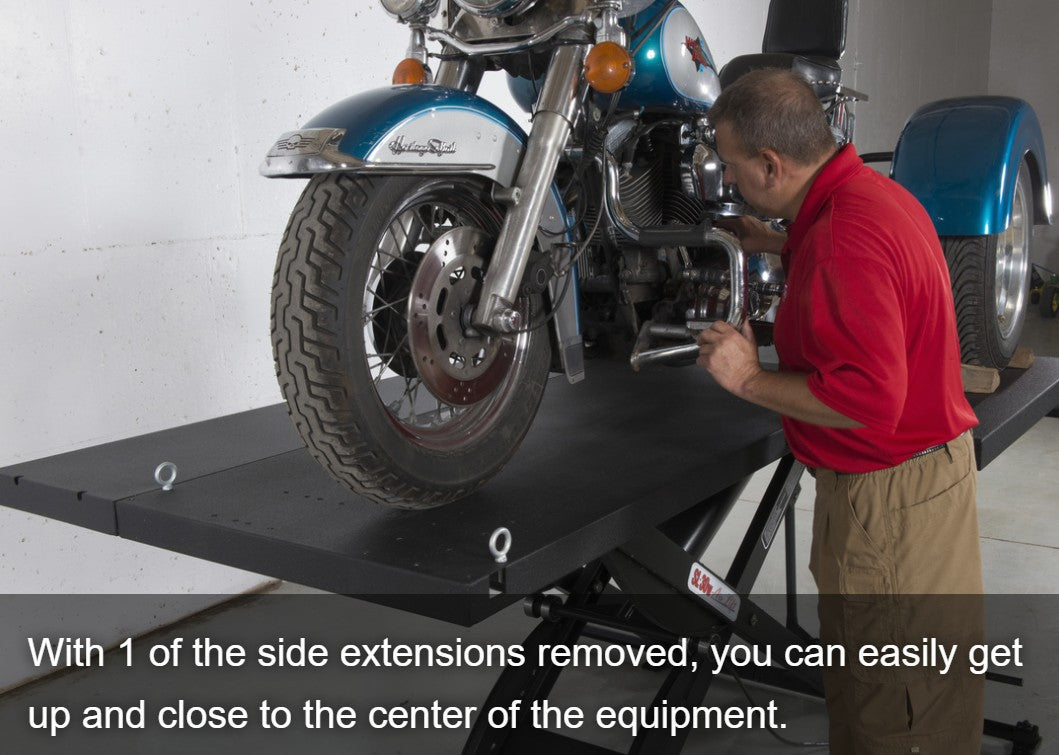

• 2 Side Extensions from our Quad Side Extension system

• Three 15" x 32" Ramps

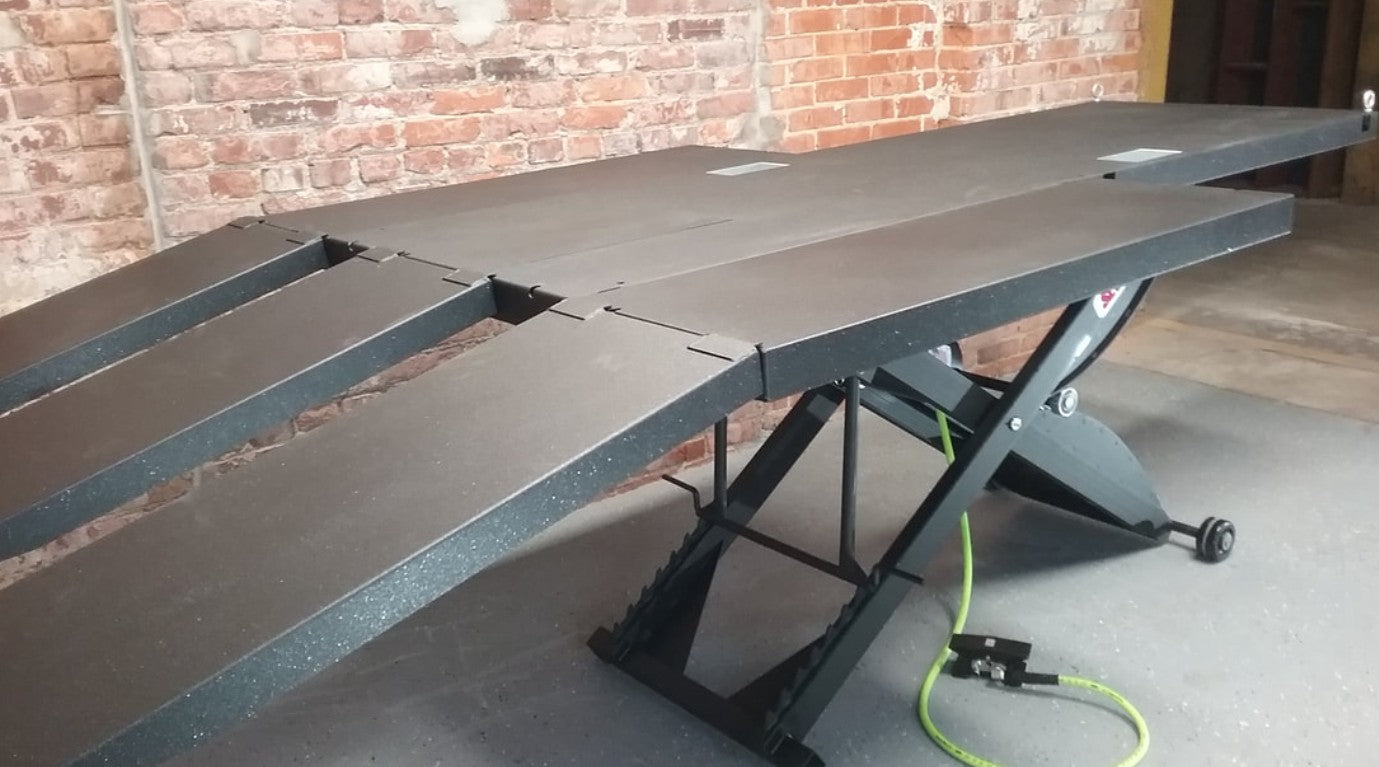

• Drive On Drive Off - Ramps can be mounted on the front or back

• Four Mount Locations for Ramps.  Can go all the way across the platform

• Frame Stabilizer Support System

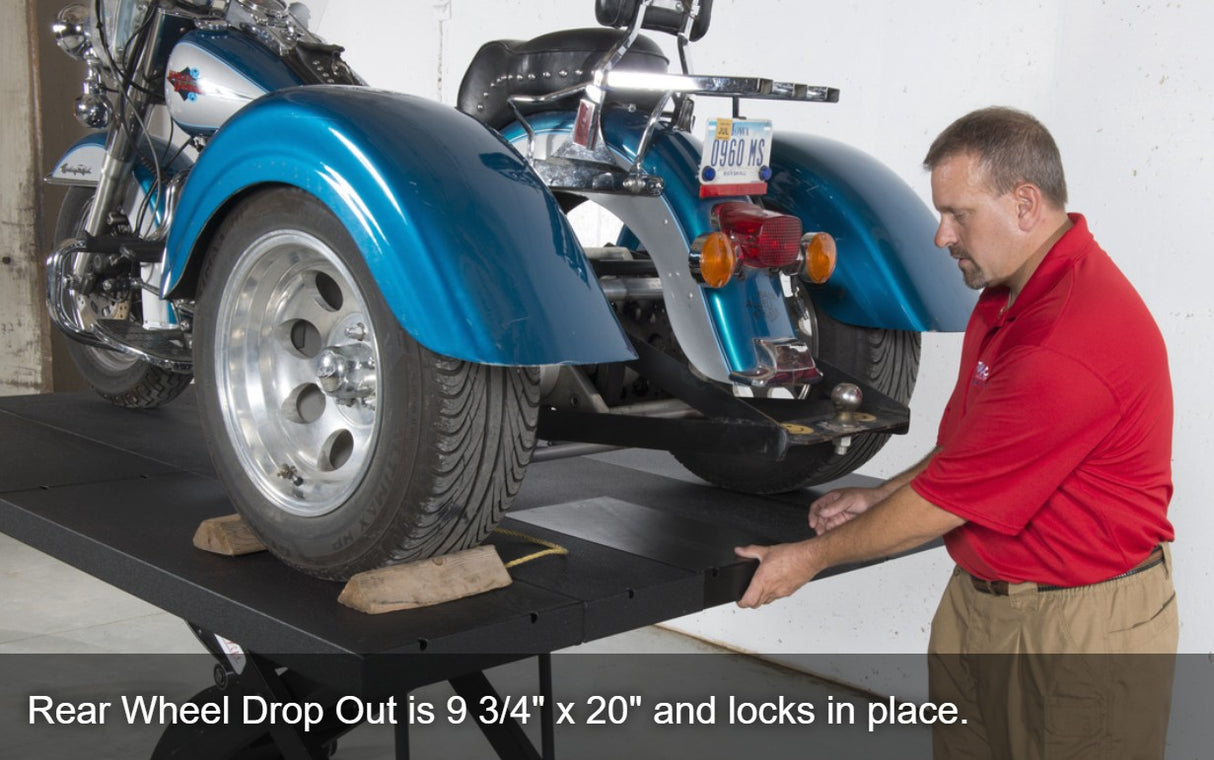

• Rear Drop Out

• Removable Table Support System

• 2 1/2" Diameter Cam Bearings

• 4" Diameter Phenolic Non Marking Wheels

• Heavy Gauge Fully Box Framed Table

• 1/4" C Channel Frame with 1" Greaseable Pivot Pins

• CV-2049 Cycle Vise or SC-2000 Wheel Chock - OPTIONAL

• High Quality Powder Coated Top, Side Extensions, & Ramps

• Hand Brushed Primed and Rust Protection Painted Frame

• Designed for CanAm Spyders, Motorcycle Trikes, or 3 wheeled electric wheel chairs

What's Included:

• SL-3090 Air Lift Frame with Top & Built in Rear Drop Out

• Rebuildable 6" Air Cylinder Assembly

• 3 Ramps

• 2 Side Extensions

• 2 Phenolic Wheels

• Air Hose Whip and Center Closed Foot Valve

• Frame Support System (4' Pipe and 2 Support Feet)

• Removable Table Support Bar
• Trike Package (SL-3090-TRIKE X PACKAGE)

Assembly Requirements:

• The SL-6090T ships ready to add air right side up.  You don't have to flip this lift over after unloading.

• Minimal assembly required....attach your air supply and air fitting to the 1/4" Brass nipple and you are ready to raise and lower the lift

• Optional Cycle Vise or Condor Wheel Chock must be mounted with fastener package

Specifications:

• Table Dims | 30"w x 90"l

• (3) Ramp Dims | 15"w x 32"l each

• Shipping Dims | 94" x 34" x 24"

• Shipping Weight | 587 lbs
