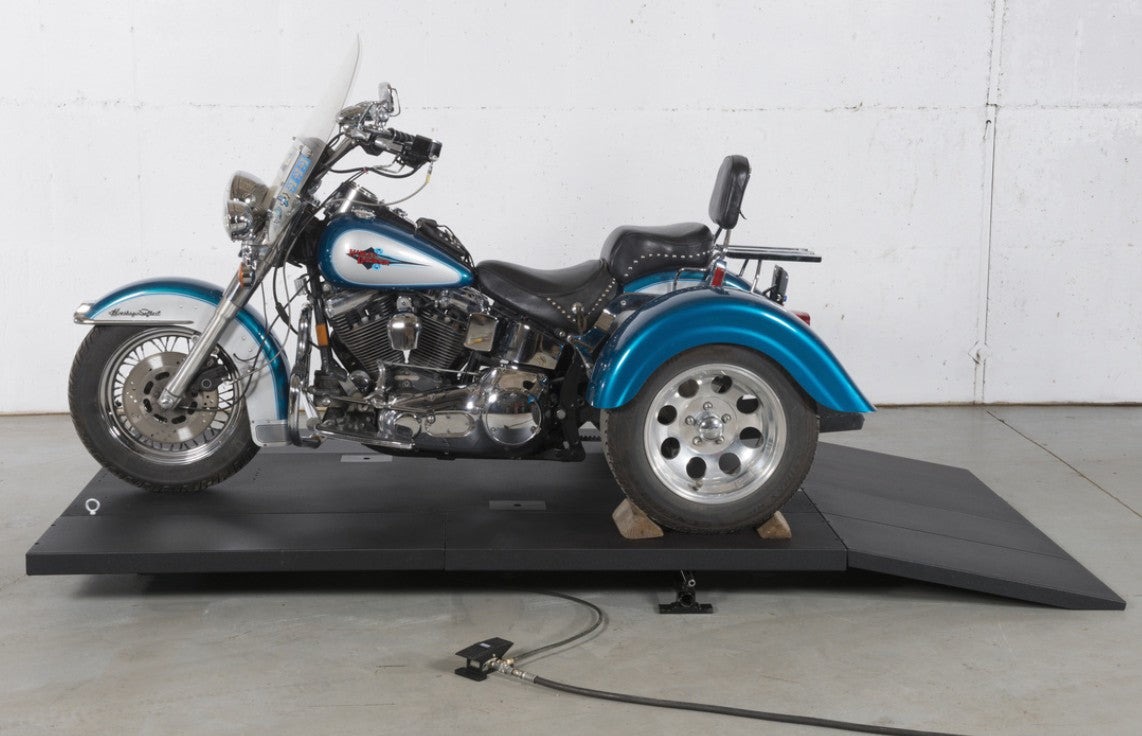

HMC Industries SL-6090QUAD Lift for ATV's, UTV's, Golf Carts, and Turf Equipment

***This Package Includes the SL-3090 Lift w/ Quad Side Extension Package***

Made In America the SL-6090 Lift table sets the standard as the best powersport lift available. The HMC SL-6090 lift has many uses as an all terrain vehicle (atv) lift, utility vehicle (utv) lift, golf cart lift, mower lift, turf equipment lift, or even just as a motorcycle lift. The SL-Series lifts incorporate a 1/4" C Channel Frame which has heavy duty boxed support gussets, 1" greaseable pivot pins, heavy 12 gauge fully boxed table, unique quad side extensions, standard rear wheel drop out, and phenolic non-marking wheels. These air lifts have a rated capacity of 1,200 lbs. With our 7-1/2" closed height and the 32" long ramps, our lifts allow low clearance bikes to have easy access. The center table is an industry leading 90" in length by 30" in width.  With the 15" wide side extensions the table is Five Feet Wide. Our ramps are 15" wide, so there can be either 1 ramp or 4 ramps across the back or the front of the table.

Features:

• American Made in the U.S.A.

• 60" Wide Table with the Quad Side Extension System

• 90" Long Table

• Independent Quad Side Extension Design - Any Side Extension Can be removed by a single individual.

• Two 15" x 32" Ramps

• Drive On Drive Off - Ramps can be mounted on the front or back

• Four Mount Locations for Ramps.  Can go all the way across the platform

• Frame Stabilizer Support System

• Rear Drop Out

• Removable Table Support System

• 2-1/2" Diameter Cam Bearings

• 4" Diameter Phenolic Non Marking Wheels

• 12 Gauge Fully Box Framed Table

• 1/4" C Channel Frame with 1" Greaseable Center Pivot Pins

• CV-2049 Cycle Vise or SC-2000 Wheel Chock OPTIONAL.

• High Quality Powder Coated Top, Side Extensions, & Ramps

• Hand Brushed Primed and Rust Protection Painted Frame

• Designed for ATV, UTV, Zero Turn Mowers, Golf Carts, CANAM Spyders, Motorcycle Trikes, Gators, Small Utility Vehicles, Large Motorcycles

What's Included:

• SL-3090 Lift Top and Frame

• Rebuildable 6" x 27" Air Cylinder

• 2 Ramps

• 4 Side Extensions

• 2 Phenolic Wheels

• Air Hose Whip and Center Closed Foot Valve

• Frame Support System (4' Pipe and 2 Support Feet)

• Removable Table Support Bar
• SL-3090 W/ QUAD SIDE X PACKAGE

Assembly Requirements:

• The SL-6090 ships ready to add air right side up.  You don't have to flip this lift over after unloading.

• Minimal assembly required....attach your air supply and air fitting to the 1/4" Brass nipple and you are ready to raise and lower the lift

• Cycle Vise or Condor Wheel Chock must be mounted with fastener package

Specifications:

• Table Dims | 30"w x 90"l

• Ramp Dims | 15"w x 32"l

• Shipping Dims | 94" x 34" x 24"

• Shipping Weight | 635 lbs
