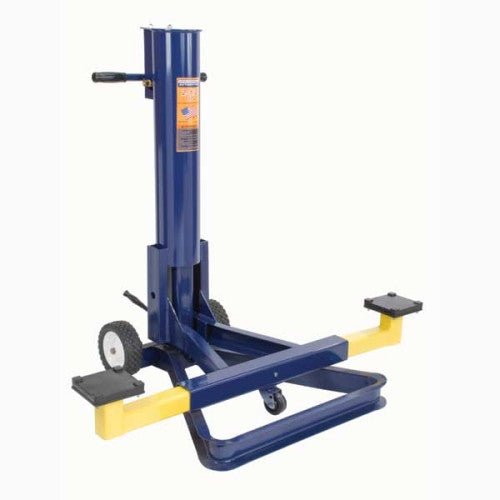

Hein Werner HW93696A 2½ Ton Air Operated End Lift

Features:

• Standard Air Operated
• Lifting the front or rear end of cars, vans, and light trucks by the bumper
• Air operation with two-stage air valve
• Hydraulic damper and safety locks
• Four-point lifting saddle with ribbed rubber pads and slotted bumper fingers
• Saddle height and width location adjustment for ease of pick up
• A quick yet effortless lift saves time and reduces mechanic fatigue
• Three-way heavy duty brass air valve provides fine control when lifting and lowering a vehicle
• Safety latch design provides five different automatic safety lock positions to prevent unintentional lowering of load
• Front swivel caster wheel and two 8” diameter rear tires provide easy maneuvering
• Adjustable lifting arm can be extended to desired position
• MADE IN THE USA

Specifications:

• Capacity | 2-1/2 ton

• Minimum Height | 8"

• Maximum Height | 35-3/8"

• Power Raise | 24-3/4"

• Saddle Spread | 23-1/4" - 41-1/4"

• Min Air Pressure for Rated Load | 200 psi

• Distance (lifting to front of saddle) | 19"

• Weight | 210 lbs
