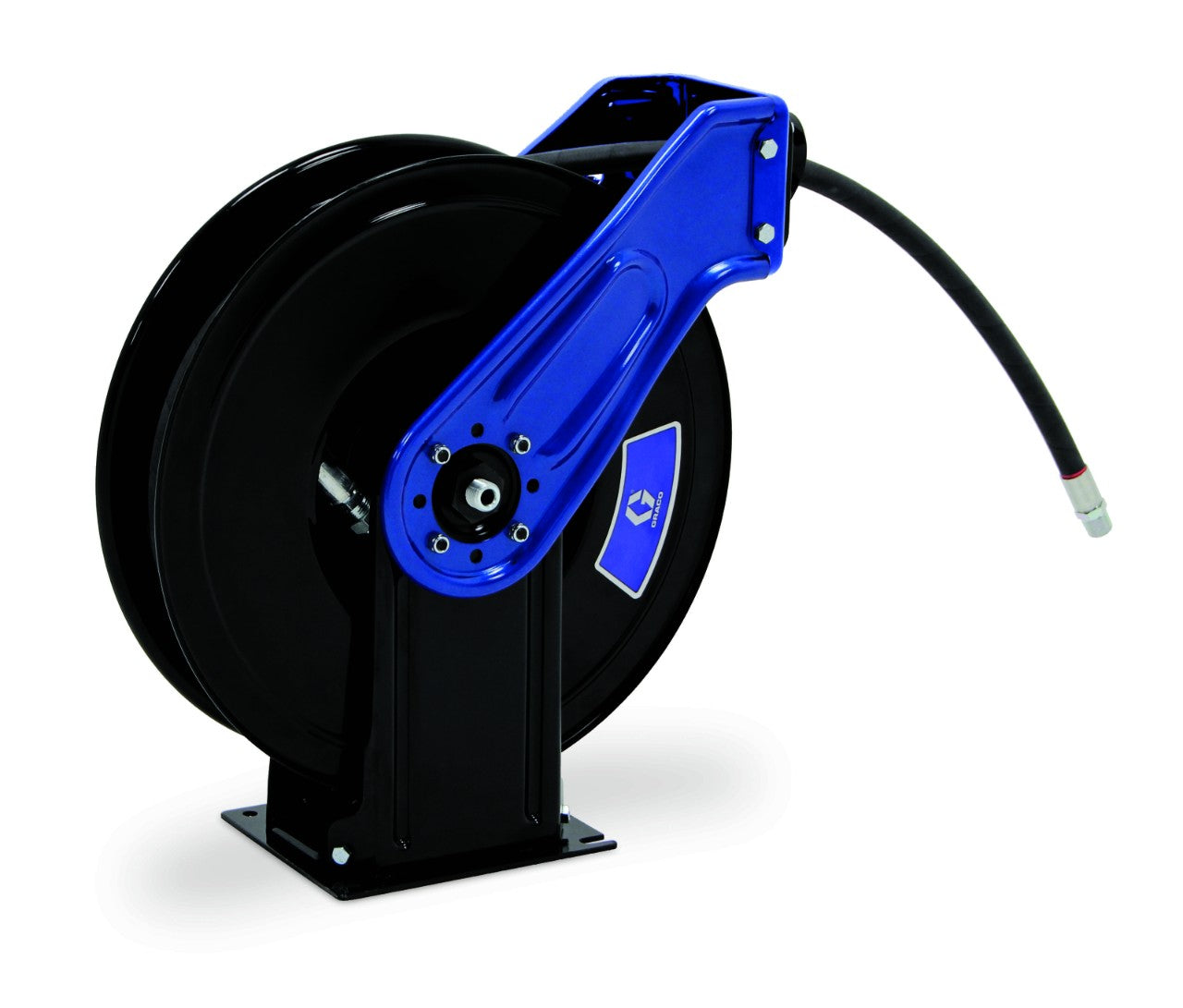

Graco XDL56B 3/8" x 65" Air/Water Reel

Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications. Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

Features:

• Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid

• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop

• Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)

• Durable Finish - Baked-on enamel finish protects reel from corrosion

• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

Specifications:

• Application | Air, Water, Antifreeze, WWS

• Color | Metallic Blue

• Frame Type |  Pedestal

• Hose Inside Diameter | 3/8"

• Hose Length | 65 ft

• Hose Reel Type | Reel with Hose

• Includes Hose | Yes

• Inlet Size | 1/2"

• Inlet Thread Gender | Male

• Inlet Thread Type | NPSM

• Maximum Temperature (°F) | 190

• Maximum Working Pressure (psi) | 300

• Minimum Temperature (°F) | -20

• Mount Location | Truck Mount, Bench Mount

• Outlet Size | 3/8"

• Outlet Thread Gender | Male

• Overall Height | 25.2"

• Overall Length | 23.4"

• Overall Width | 7.5"

• Recommended Environment | Indoor, Outdoor

• Recommended Fluid Type | Air, Water, Antifreeze, WWS

• Reel Thread Type | NPT

• Series | 20

• Type | Spring-Rewind Reel

• Wetted Parts | Stainless Steel, Anodized Aluminum, Nitrile Rubber
