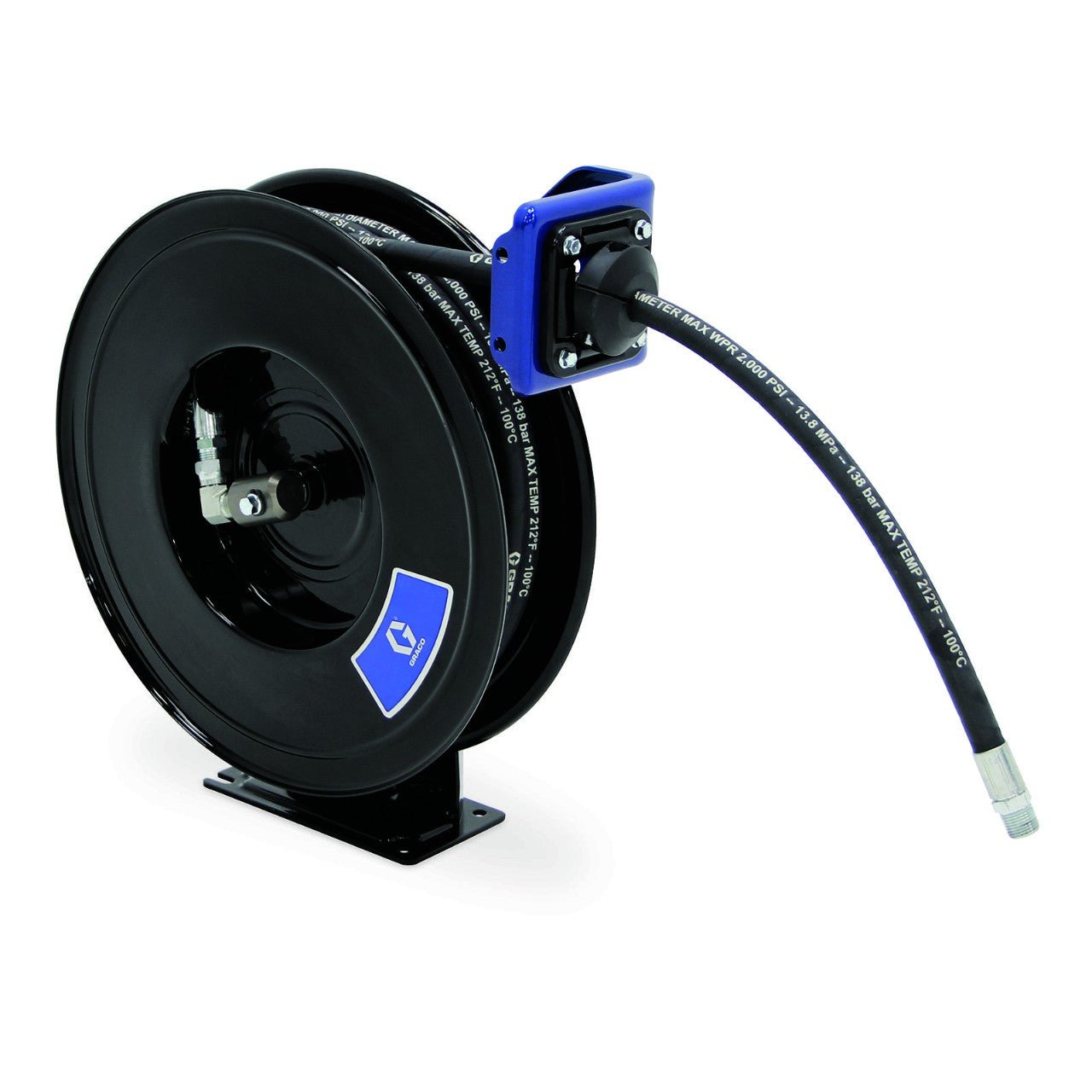

Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors. With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.

Features:

• Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.

• Increased Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look.

• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop

• Adjustable Arm - Easily change the arm position for your application

• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications

• Durable Finish - Baked-on enamel finish protects reel from corrosion

Specifications:

• Application | Oil

• Bare Reel | 1

• Color | Metallic Blue

• Frame Type | Single Pedestal

• Hose Inside Diameter | 1/2"

• Hose Length | 50 ft

• Hose Reel Type | Bare Reel

• Includes Hose | No

• Inlet Size | 1/2"

• Inlet Thread Gender | Male

• Inlet Thread Type | NPSM

• Maximum Temperature | 190°F

• Maximum Working Pressure | 2000psi

• Minimum Temperature | -20°F

• Model | SDX

• Mount Location | Overhead Mount

• Outlet Size | 1/2"

• Outlet Thread Gender | Male

• Outlet Thread Type | NPT

• Overall Height | 21.8"

• Overall Length | 19.2"

• Overall Width | 7"

• Recommended Environment | Indoor, Limited Outdoor

• Recommended Fluid Type | Oil

• Reel Thread Type | NPT

• Series | 20

• Type | Spring-Rewind Reel

• Wetted Parts | Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber
