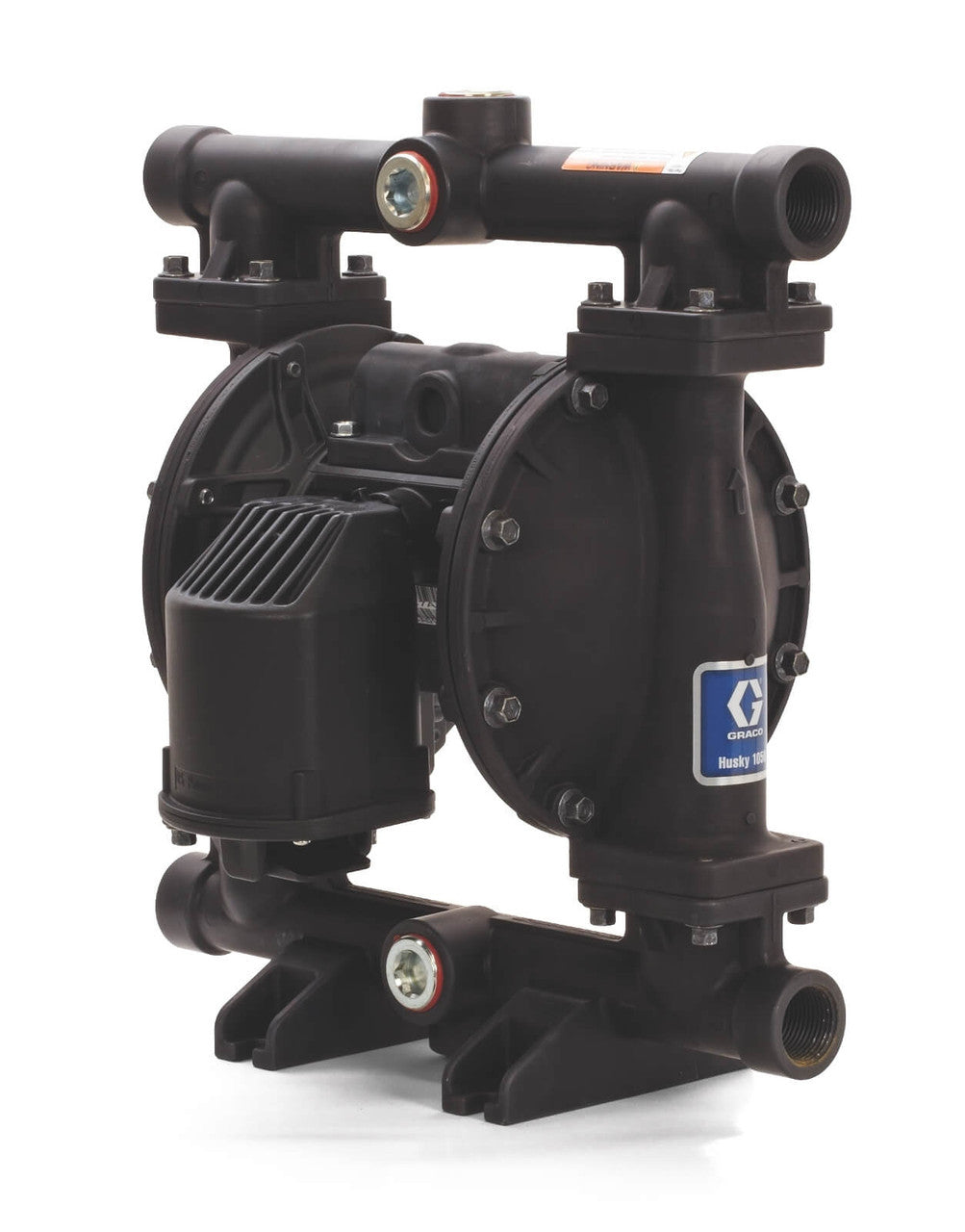

Graco 647016 Husky 1050 Air-Operated Double Diaphragm Transfer Pump – 1" Aluminum/TPE for Water, Anti-Freeze, and Fuel Transfer

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Features:

• Longer Diaphragm Life | Up to 5x longer diaphragm life for less maintenance and downtime
• Modular Air Valve | Stall-free, low pulsation operation provides smooth and rapid changeover
• One-Piece Center Section | Eliminates air leaks for more efficient operation
• Four Bolt Joint Design | Bolted design provides even sealing pressure for leak-free operation
• Multiple Ports | Increased number of ports for installation flexibility
• 30% more efficient than the market leader
• 20% increase in fluid flow compared to the Husky 1040

Optional Features:

• DataTrak - Runaway protection and tracks material usage
• Pulse Output - Cycle count capability
• Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation

Specifications:

• Air Exhaust Port Size (in) | 3/4
• Air Exhaust Port Thread Gender | Female
• Air Exhaust Port Thread Type | NPT
• Air Inlet Size (in) | 1/2
• Air Inlet Thread Gender | Female
• Air Inlet Thread Type | NPT
• Application | Industrial
• Ball Material | Acetal
• Center Section Material | Aluminum
• Compatible Material | Water, Antifreeze, Fuel
• Connection Type | Threaded
• Diaphragm Material | TPE
• Fluid Inlet Size (in) | 1
• Fluid Inlet Thread Gender | Female
• Fluid Inlet Thread Type | NPT
• Fluid Outlet Size (in) | 1
• Fluid Outlet Thread Gender | Female
• Fluid Outlet Thread Type | NPT
• Fluid Section Material | Aluminum
• For Use With | Water / anti-freeze / fuel transfer
• Manifold O-Ring Material | None
• Material | Aluminum
• Maximum Air Consumption (SCFM) | 25
• Maximum Air Pressure (MPa) | 0.7
• Maximum Air Pressure (psi) | 100
• Maximum Cycle Rate (CPM) | 280
• Maximum Flow Rate (GPM) | 50
• Maximum Fluid Pressure (MPa) | 0.7
• Maximum Fluid Pressure (psi) | 100
• Maximum Operating Temperature (°F) | 150
• Maximum Solid Size (in) | 0.125
• Overall Height (in) | 15.9
• Power Source | Air
• Seat Material | TPE
• Standards Met | UL
• Type | Pneumatic Diaphragm Pump
• Weight (lb) | 23
• Wetted Material | Aluminum, TPE, Acetal
