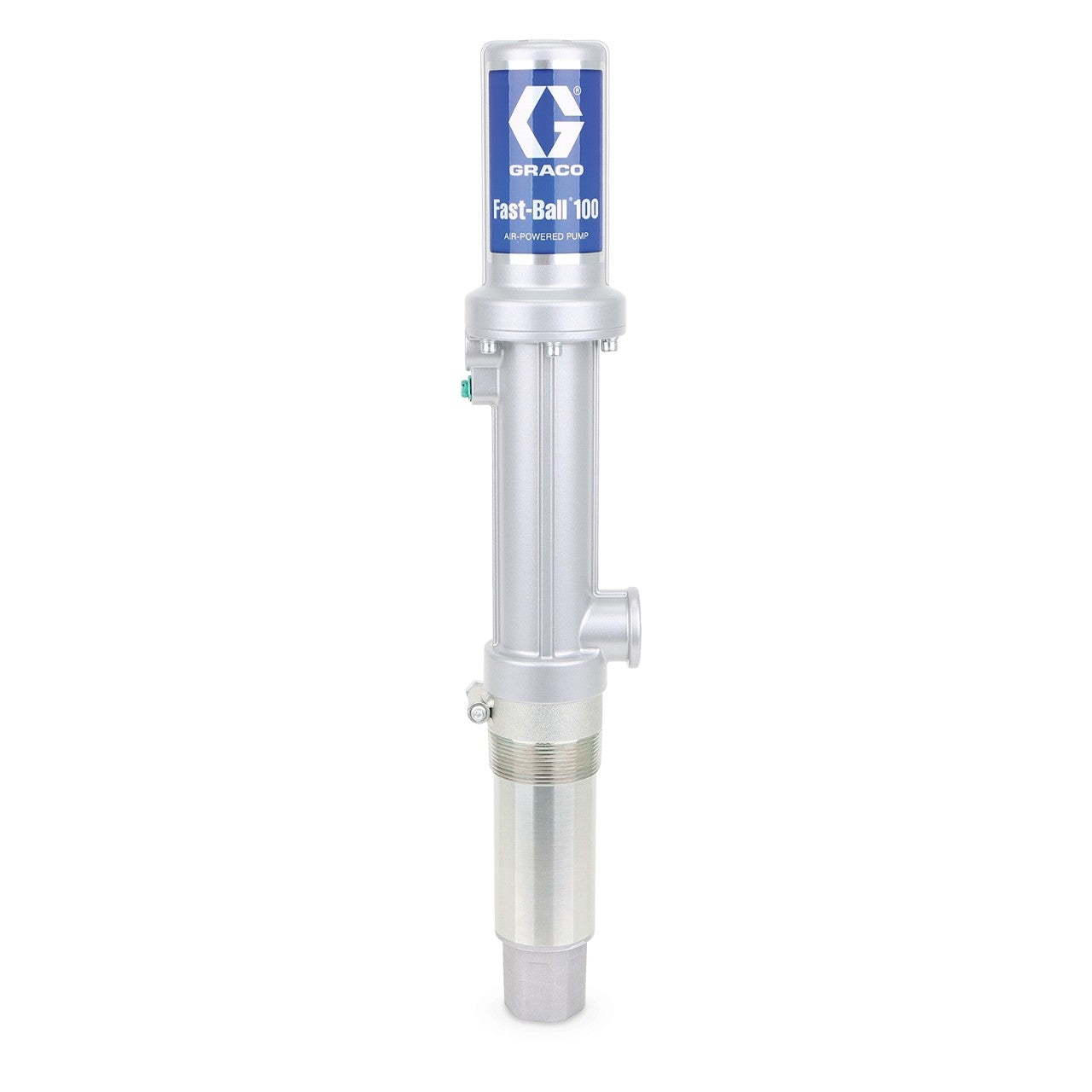

Graco 279035 Fast-Ball 1:1 Air-Operated Piston Pump

Universal Pump

Features and Benefits

• In-line design with fewer parts for less pump wear
• Differential air motor ensures smooth pumping
• Double-acting pump provides reliable fluid flow

Typical Application

• Lubricant transfer
• Automotive dealerships
• Heavy duty dealerships
• Fast lube centers
• Fleet service facilities
• Service shops
• In-plant
• Lube trucks
• Mining

Typical Fluids Handled*

• Petroleum and synthetic based oils

Specifications:

• Maximum Fluid Pressure | 180 psi (12.5 bar)
• Air Motor Effective Diameter | 1.4 in (35.6 mm)
• Operating Range | 40-180 psi (2.7-12.5 bar)
• Continuous Duty Flow Rate | 5 gpm (19 lpm)
• Approx. Air Consumption @100 psi (7 bar) | 5 cfm
• Air Inlet | 1/4 npt(f)
• Material Outlet | 3/4 npt(f)
• Material Inlet | 1-1/2 npt(f)
• Wetted Parts | CS, Polyurethane
• Instruction Manual | 307906
