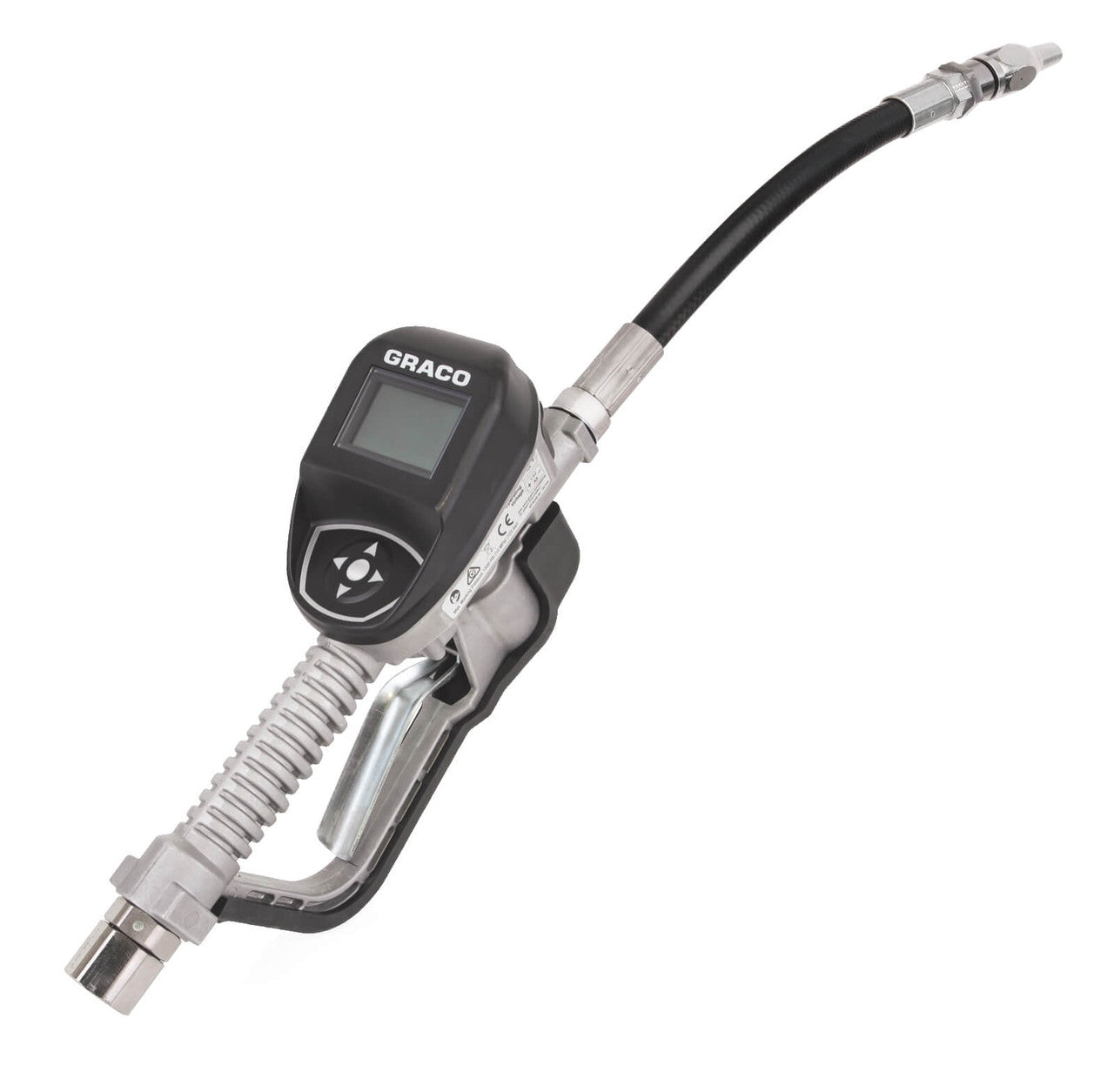

Graco 25M406 SDM8 Series Electronic Manual Oil Meter - Flexible Extension - 1/2" Inlet

Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

Features:

• Large, Intuitive Display—high-contrast display for low and bright light conditions
• Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
• Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue
• Reliable—time-tested Graco engineering
• Durable—Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
• Long battery life—uses 4 AA easy-to-replace batteries

Specifications:

• Compatible Material | Oil, ATF
• Dispense Type | Manual
• Display Type | Electronic
• Extension Type | Flexible
• Fluid Inlet Thread Gender | Female
• Fluid Outlet Thread Gender | Female
• Includes | Nozzle, Flexible Extension
• Inlet Size (in) | 1/2
• Inlet Thread Type | NPT
• Maximum Flow Rate (GPM) | 8
• Maximum Operating Temperature (°F) | 158
• Maximum Recorded Dispense | 9999
• Maximum Storage Temperature (°F) | 158
• Maximum Working Pressure (MPa) | 10.3
• Maximum Working Pressure (psi) | 1500
• Meter Accuracy (%) | ±0.5
• Meter Technology | Oval Gear
• Metering Gun Weight (lb) | 5.3
• Minimum Flow Rate (GPM) | 0.25
• Minimum Operating Temperature (°F) | 4
• Nozzle Type | Oil Automatic Quick-Close
• Outlet Thread Type | Straight Thread O-Ring Boss
• Overall Height (in) | 5.75
• Overall Length (in) | 13
• Overall Width (in) | 3.75
• Recommended Environment | Indoor
• Trigger Lock | Non-Locking
• Trigger Protection Type | Guard
• Type | Electronic Metered Dispense Valve
• Unit of Measure | Quart, Pint, Gallon, Liter
• Valve Type | Metered
• Warranty | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts
• Wetted Material | Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS

PLEASE NOTE, IMPORTANT INFORMATION:

• Replaces the Graco 255348
