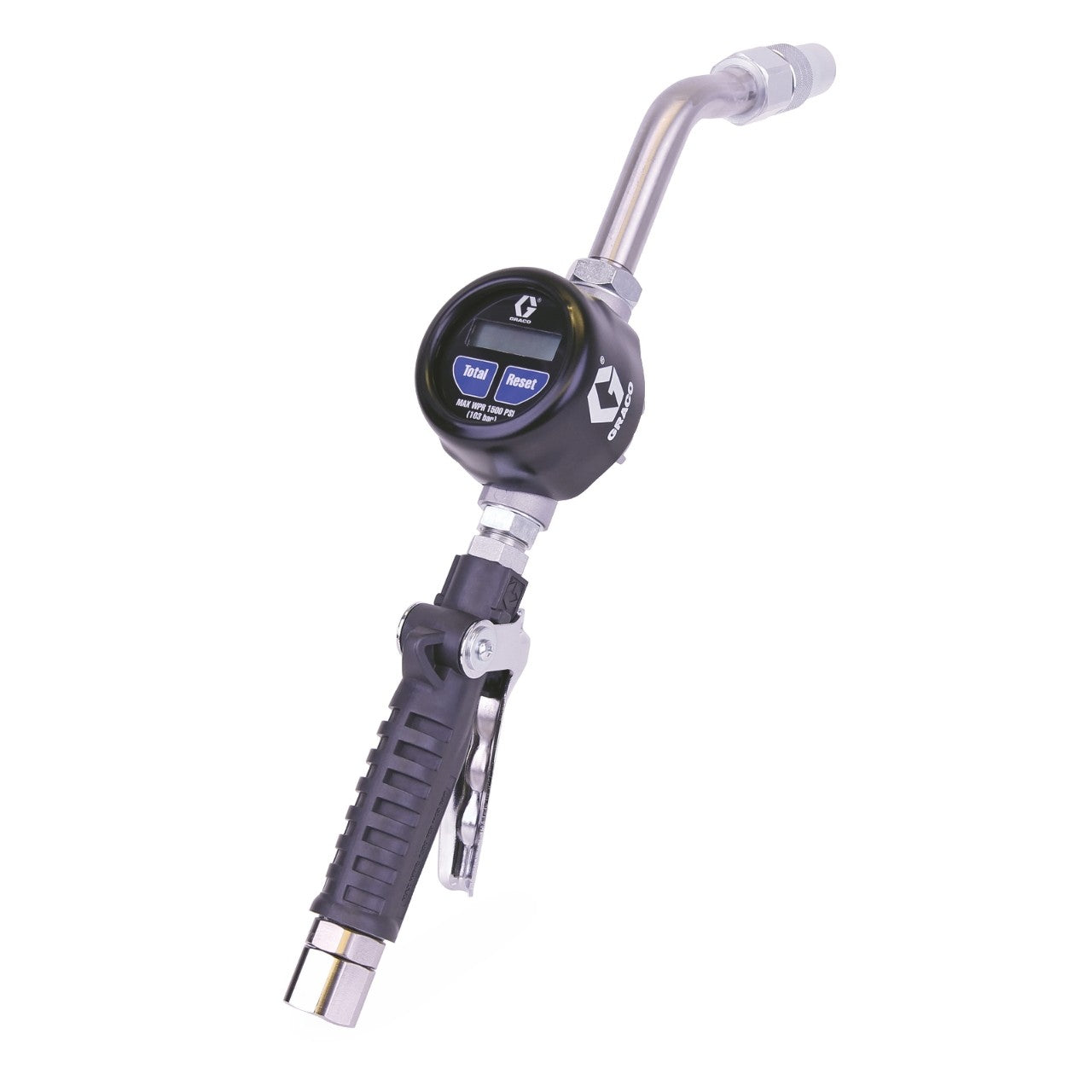

Graco 25C916 EM12 Electronic Meter

Features:

• 1/2 npt(f) swivel inlet

• Metric Measure 1/2 in (12.7 mm) rigid extension

• Locking trigger for hands-free operation

• High-flow capability provides up to 12 gpm (45 lpm)

• Rugged design withstands demanding environments

• Re-settable totals for periodic dispense history

Typical Applications:

• High-flow metered oil dispense in demanding environments

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube centers

• Fleet service facilities

• Service shops

• In-plant

• Lube Trucks

• Mining

Typical Fluids Handled*

• Petroleum and synthetic based oils

• *Not recommended for use with anti-freeze

Specifications:

• Maximum Recommended Flow Rate | 12 gpm (45.4 lpm)

• Maximum Operating Pressure | 1500 psi (105 bar, 10.5 MPa,)

• Operating Temperature Range | -4 degrees to 130 degrees F (-20 degrees to 55 degrees C)

• Storage Temperature Range | .-40 degrees to 140 degrees F (-40 degrees to 60 degrees C)

• Inlet | 1/2 npt and 3/4 npt

• Outlet | 1/2 npt

• Wetted Parts | aluminum, SST, CS, acetal, nitrile rubber, Geolast
