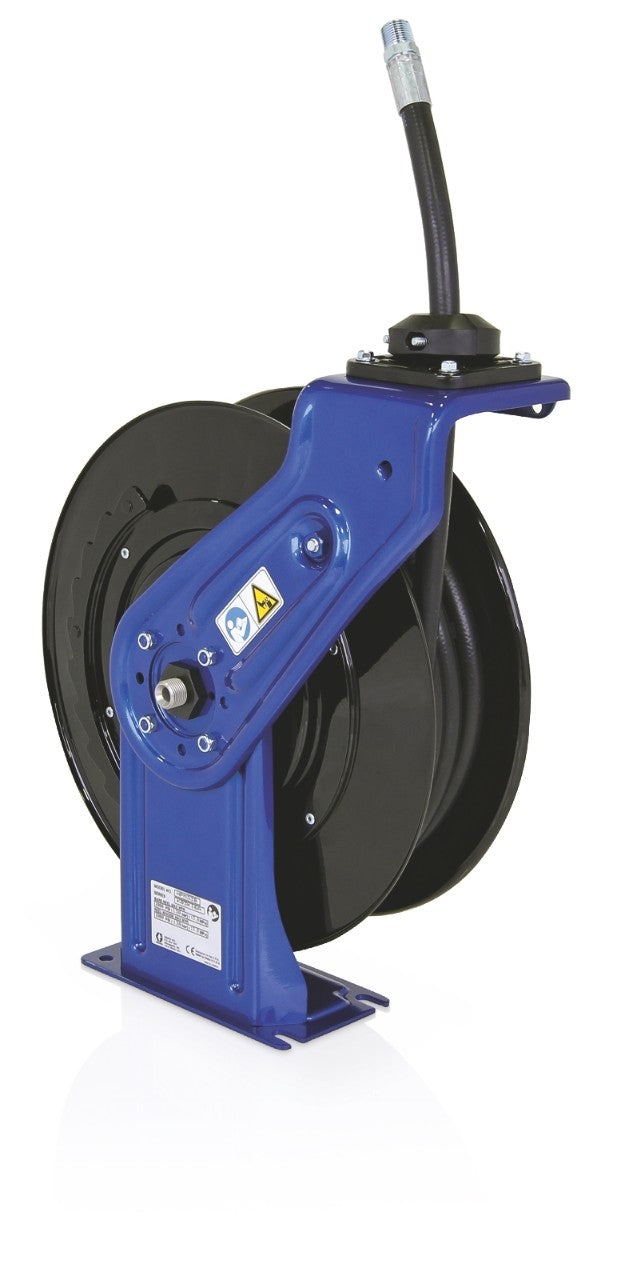

With its durable metal spool and rigid pedestal frame, the compact SD Series is ideal for indoor and moderate outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.

Features:

• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop

• Adjustable Arm - Easily change the arm position for your application

• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications

• Durable Finish - Baked-on enamel finish protects reel from corrosion

• SD Hose Reel Package - includes hose reel, hose inlet kit, enclosure and meter/valve

Specifications:

• Dry Weight | 52 lb

• Frame Type | Enclosed
• Hose Inside Diameter | 3/8"

• Hose Length | 35 ft

• Hose Reel Type | Reel Package

• Inlet Size | 1/2"

• Inlet Thread Gender | Male

• Inlet Thread Type | NPSM

• Maximum Temperature | 190°F

• Maximum Working Pressure (psi) | 300

• Minimum Temperature | -20°F

• Model | SD

• Outlet Size | 3/8"

• Outlet Thread Gender | Male

• Overall Height | 22.5"

• Overall Length | 21"

• Overall Width | 7"

• Recommended Environment | Indoor, Outdoor

• Recommended Fluid Type | Water, Antifreeze, WWS

• Reel Thread Type | NPT

• Series | 10

• Type | Spring-Rewind Reel
