Graco 24D992 Air Enclosed Hose Reel Package

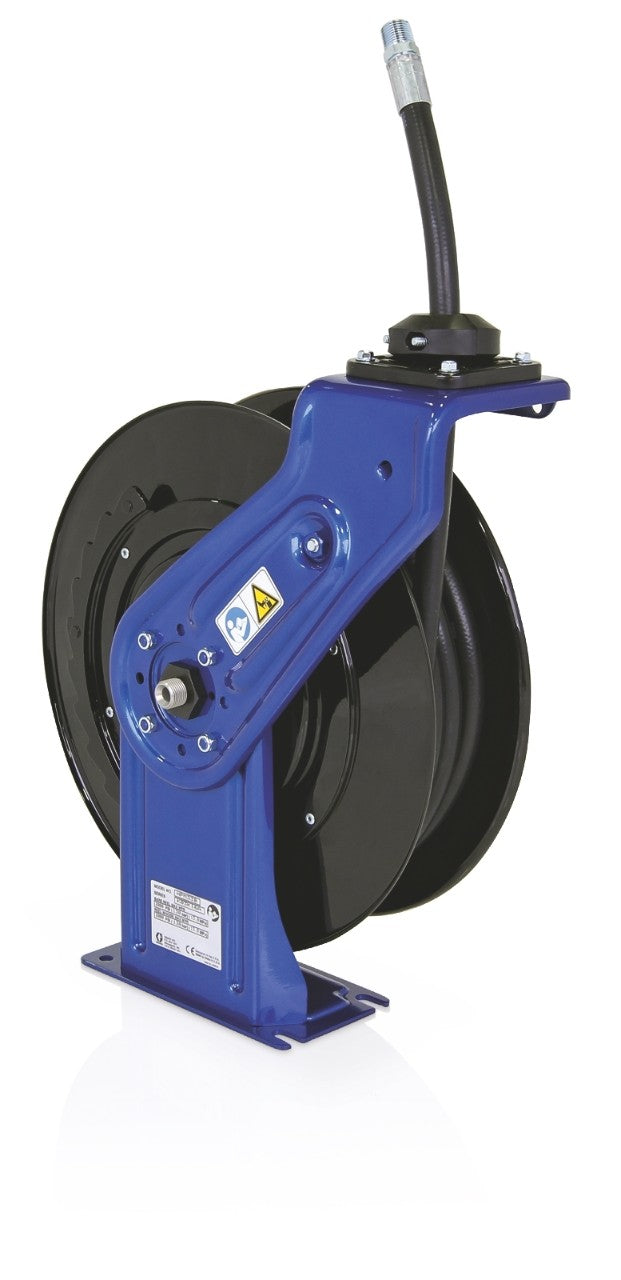

Hose Reel Image may vary. Replaced 224841.

Includes:

• Hose Reel (HPL23B) - Steel Spool

• Hose Inlet Kit (218549)

• White Enclosure (24A217)

• Dispense Valve/Meter (218545)

• Hose Size: 3/8" x 35' Air Hose Reel

• Tire Inflator Valve (218545) - 1/4 npt(f) Tire Chuck, durable, full-volume tool for adding/relieving air pressure.

Applications:

• Air

• Water

• Anti-freeze

• Windshield Washer Fluid

• Unleaded, leaded and diesel fuels

• Petroleum and synthetic-based oils

Features:

• Heavy-duty, high volume reel

• Industrial-grade paint for high abrasion and corrosion resistance

• Full-flow shaft

• Heavy-duty brackets and springs

• Rugged base and hose rollers

• Heavy-duty latch mechanism

Specifications:

• Inlet npsm (m) | 1-1/2 npt(f)

• Outlet npt (m) | 1-1/2 npt(f)

• Max. Pressure Psi (bar) | 375 psi (26 bar)

• Hose Capacity | 50 ft (15.2m) x 1.50 in ID Hose

• Operating Temp | 150 degrees F (65 degrees C)

• Wetted Parts | Carbon Steel, Buna

• Weight (bare reel) | 139 lbs (63 kg)

• Instruction Manual | 309442
