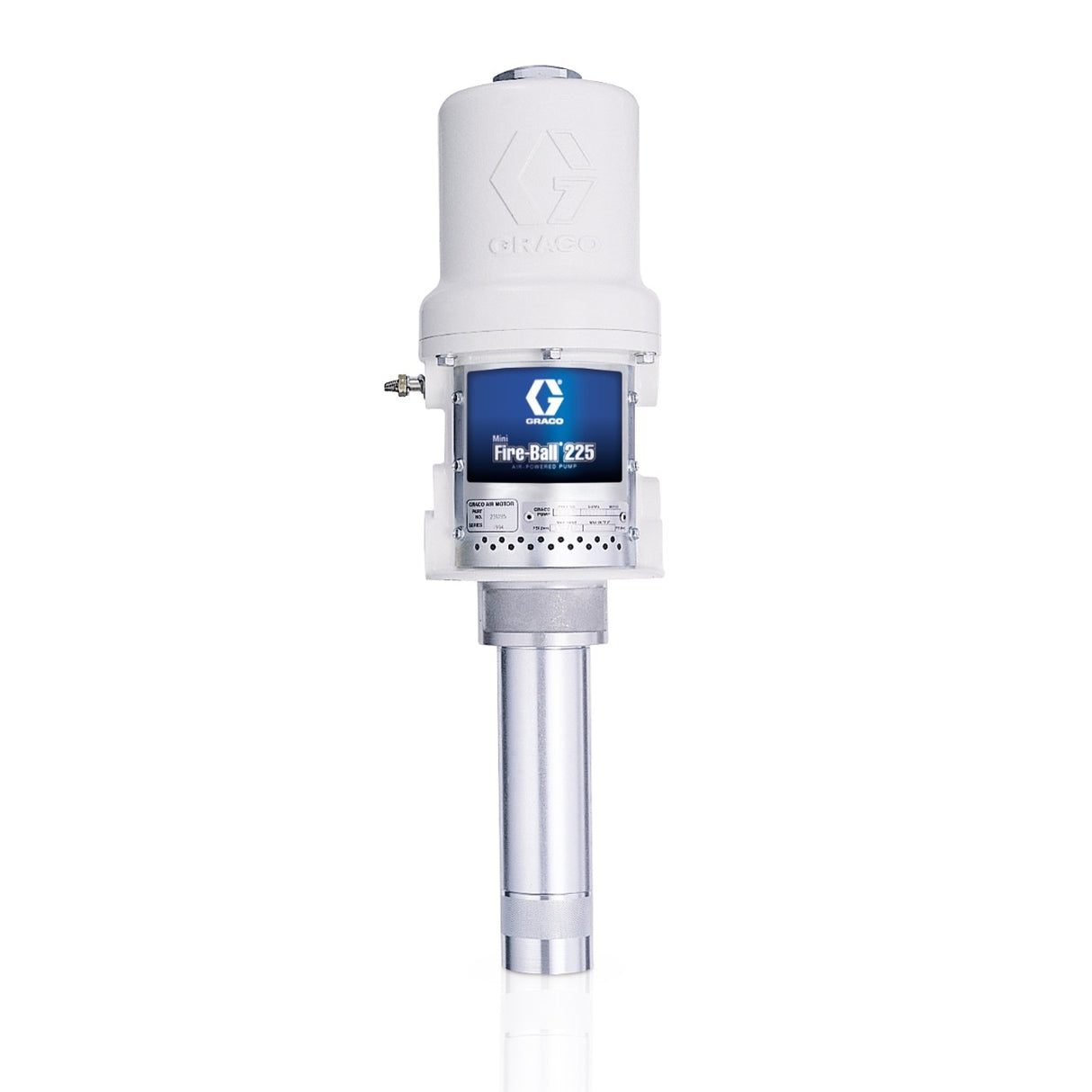

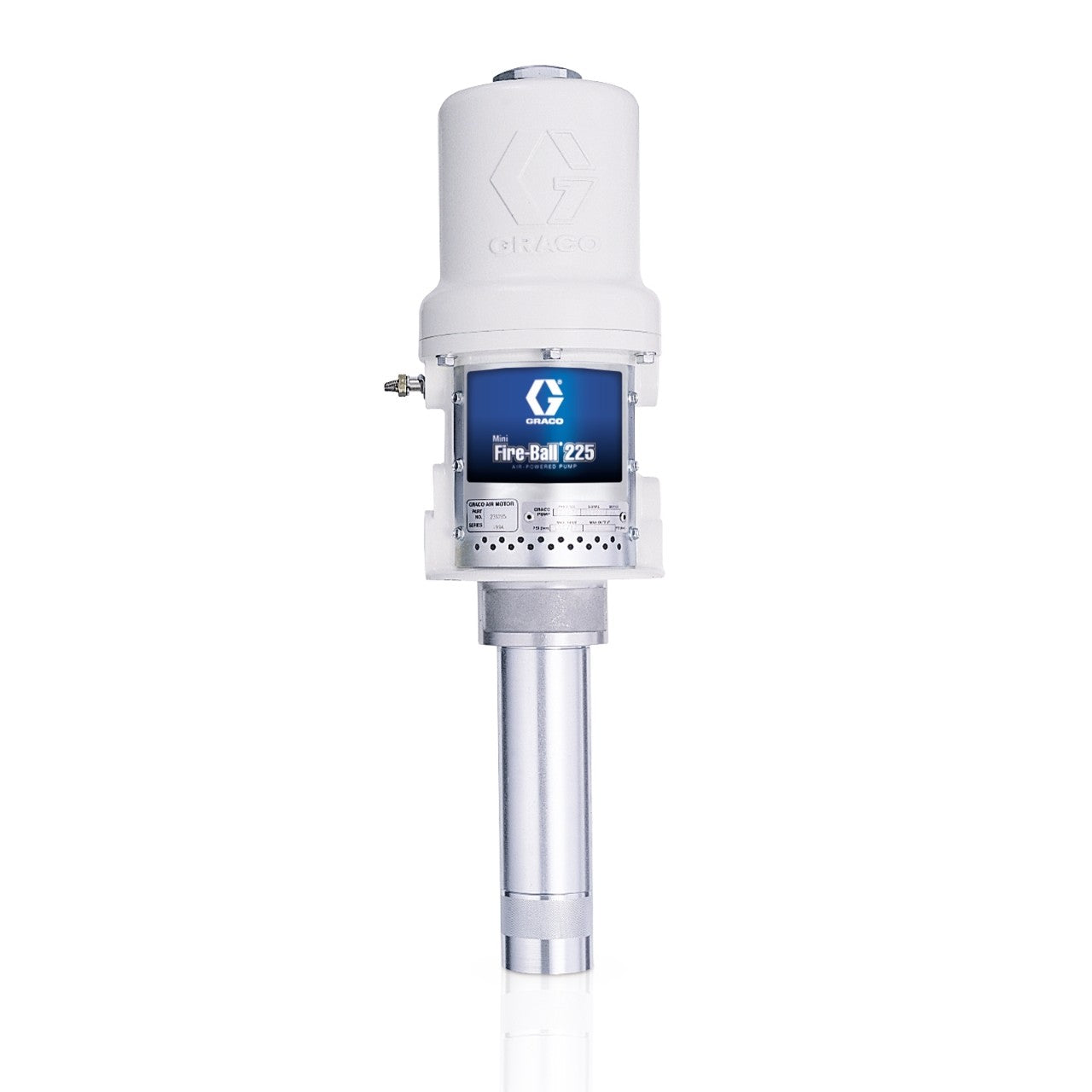

Graco 246775 Mini Fire-Ball 225, 3:1 Air-Operated Piston Pump

Universal pump perfect for low volume applications. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

Features:

• Durable - Thick cast aluminum air motor housing offers unmatched durability.

• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.

• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.

• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.

• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.

• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.

• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Specifications:

• Air Inlet Size | 3/8"

• Air Inlet Thread Gender | Female

• Air Inlet Thread Type | NPT

• Air Motor Effective Diameter | 2.25"

• Application | Industrial

• Compatible Material | Oil

• Construction | Steel, Polyurethane, Aluminum, Buna-N

• Cycles Per Gallon | 43.5

• Fluid Inlet Size | 1-1/2"

• Fluid Inlet Thread Gender | Female

• Fluid Inlet Thread Type | NPT

• Fluid Outlet Size | 1/2"

• Fluid Outlet Thread Gender | Female

• Fluid Outlet Thread Type | NPT

• For Use With | Petroleum- and synthetic-based oils (motor, gear and ATF)

• Maximum Air Consumption (SCFM)    20

• Maximum Air Inlet Pressure (psi) | 180

• Maximum Continuous Cycle Rate (CPM) | 100

• Maximum Working Pressure (MPa) | 3.7

• Maximum Working Pressure (psi) | 540

• Model | Mini Fire-Ball

• Power Type | Pneumatic

• Pump Ratio | 3:1

• Series | 225

• Sound Power Level (dB(A)) | 85.6

• Sound Pressure Level (dB(A)) | 77.8

• Type | Pneumatic Piston Pump

• Weight | 16 lbs
