Graco  |  SKU: GRA203876

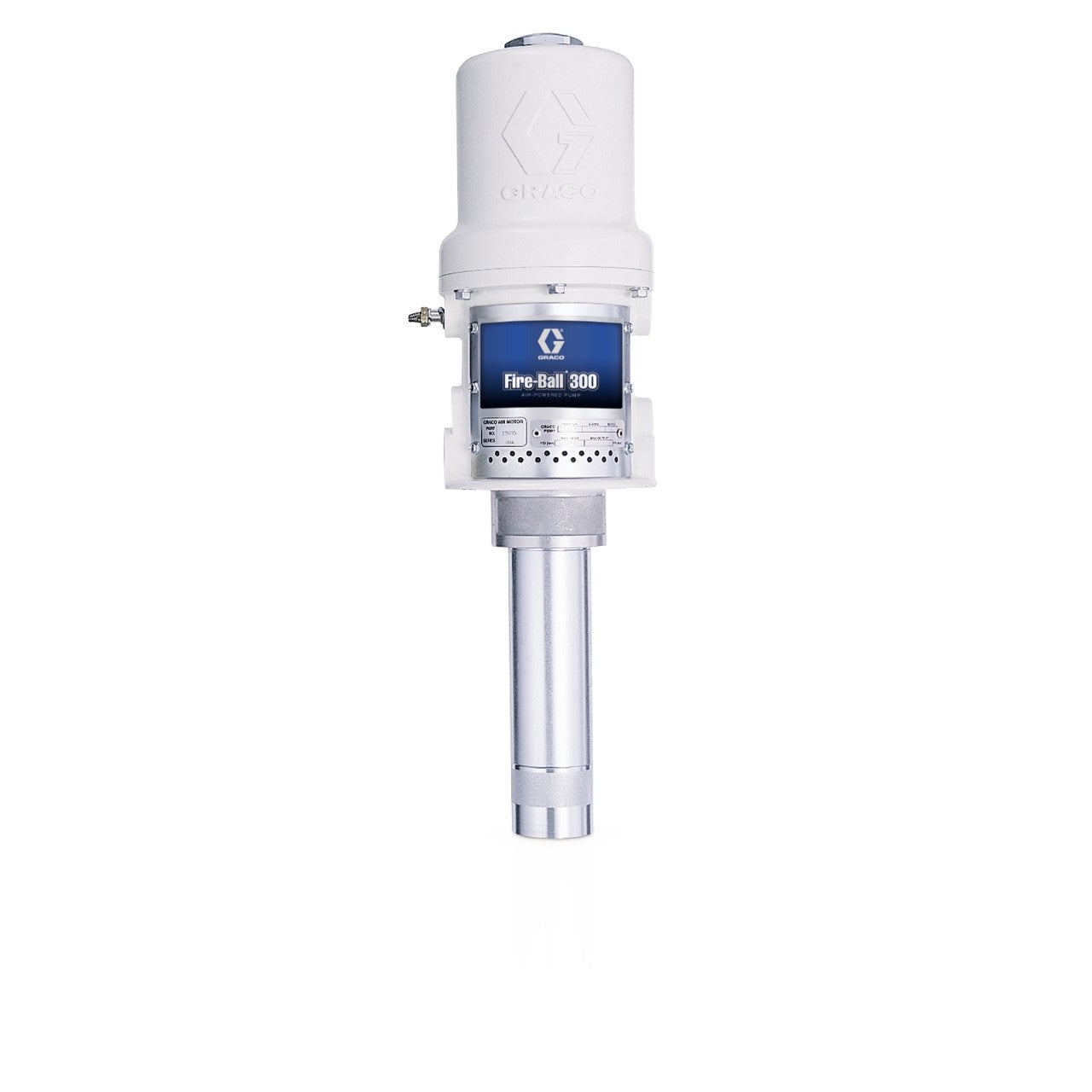

Graco 203876 5:1 Universal Pump

$1,525.00
Contact Us

Graco 203876 Air Operated Piston Pump

Universal Pump - DOES NOT include drop tube. Add your own drop tube to it.

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently. Install the Fire-Ball 300 5:1 in high pressure, medium volume oil transfer applications such as automotive dealerships, fast lube centers, and service shops.

Features:

  • Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
  • Durable - Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Specifications:

  • Air Inlet Size | 3/8"
  • Air Inlet Thread Gender | Female
  • Air Inlet Thread Type | NPT
  • Air Motor Effective Diameter | 3"
  • Application | Industrial
  • Compatible Material | Oil
  • Construction | Steel, Polyurethane, Aluminum, Buna-N
  • Cycles Per Gallon | 30
  • Fluid Inlet Size | 1-1/2"
  • Fluid Inlet Thread Gender | Female
  • Fluid Inlet Thread Type | NPT
  • Fluid Outlet Size | 1/2"
  • Fluid Outlet Thread Gender | Female
  • Fluid Outlet Thread Type | NPT
  • For Use With | Petroleum- and synthetic-based oils (motor, gear and ATF)
  • Maximum Air Consumption | 25 SCFM
  • Maximum Air Inlet Pressure | 180psi
  • Maximum Continuous Cycle Rate | 70 CPM
  • Maximum Intermittent Cycle Rate | 70 CPM
  • Maximum Working Pressure | 6.2 MPa
  • Maximum Working Pressure | 900psi
  • Model | Fire-Ball
  • Power Type | Pneumatic
  • Pump Ratio | 5:1
  • Series | 300
  • Sound Power Level | 85.6 dB(A)
  • Sound Pressure Level | 77.8 dB(A)
  • Type | Pneumatic Piston Pump
  • Weight | 17 lbs
