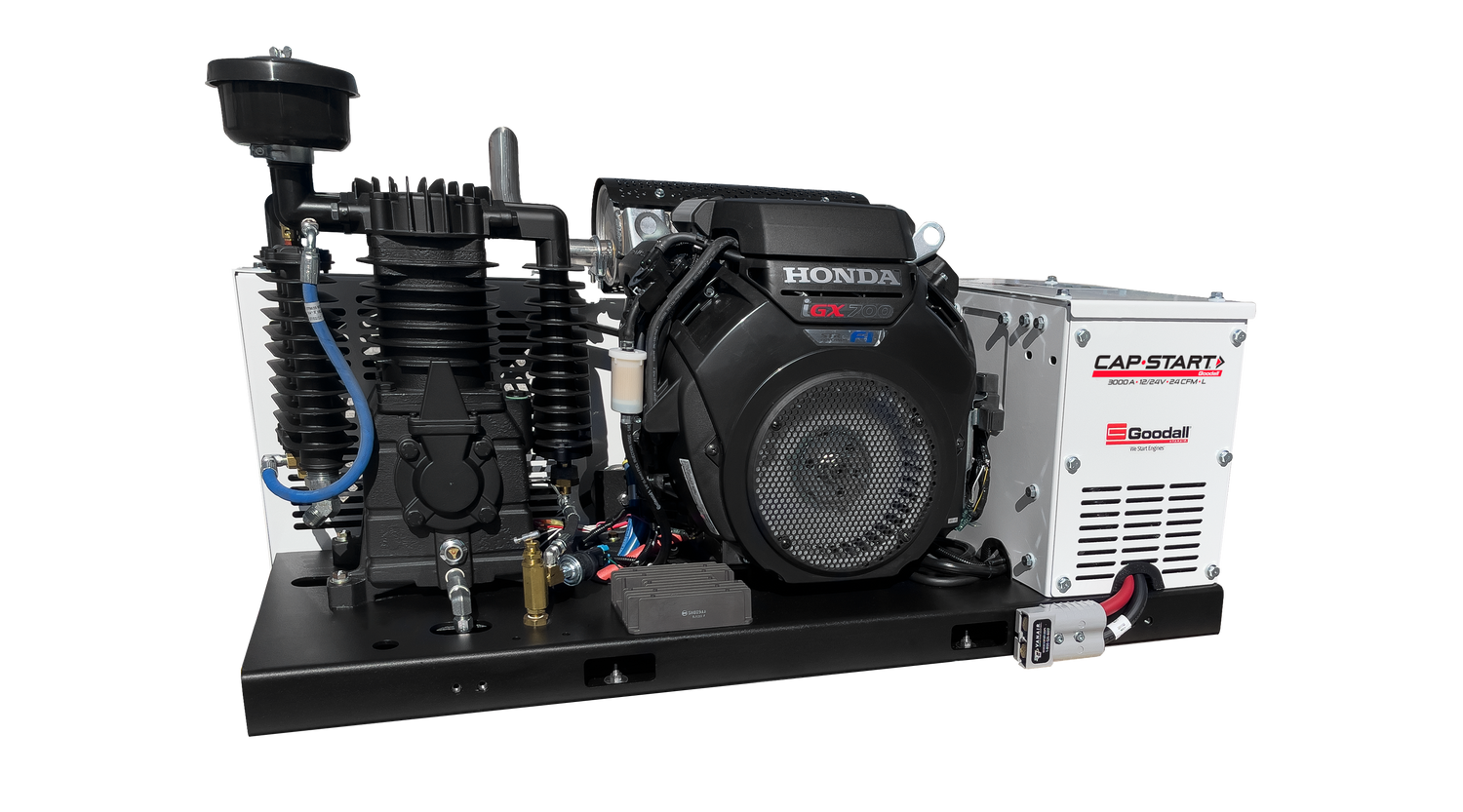

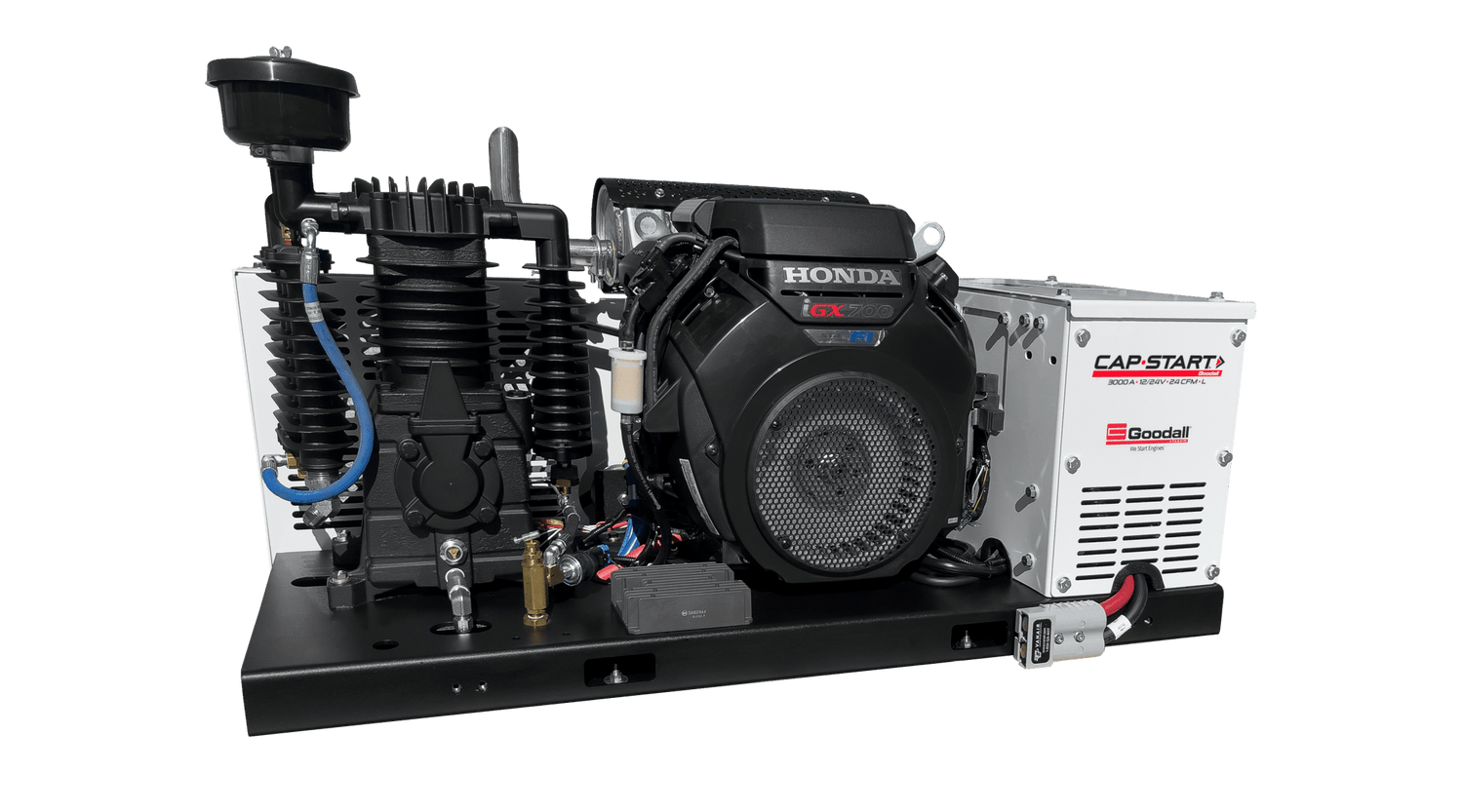

Goodall 052230 12V/24V CapStart 3000 AMP - 24CFM - 240AMP Alternator

The Fastest and Lightest Instantaneous Engine Starting System on the Market!
The new lightweight, 30-gallon, Cap•Start 3000 + Air Light allows you to rapidly start multiple vehicles in succession and provide the air power you need! Utilizing revolutionary new Vanair Fast Start and Super Capacitor (VSC) technology, Vanair’s Cap•Start 3000 + Air Light provides you with instantaneous starting power for all your heavy duty machinery, company fleets, and off road vehicles, keeping you up and running. No more waiting for your batteries to charge — getting you back to work in mere seconds.

The Cap•Start 3000 + Air Light is the fastest vehicle starting system on the market, offering:

• 3000+ AMPS of Instantaneous Starting Power
• 12VDC/24VDC Charging and Starting Capabilities
• 24 CFM and Up to 175 PSIG of Air Power for All Your
Pneumatic Tool Needs
• 240 AMP Self-Regulating Alternator for Fast Recharging
• Innovative Vanair Super Capacitor (VSC)

Uses:

• Air Compressor
• Battery Charger
• Engine Starting

Includes:

• Includes Cold Weather Option
• Standard 10' Remote Control Connection Harness
• Boost Cables,
• Chassis Battery Connection Harness*

Specifications:

• 12/24VDC Starting | Up to 3240 AMP Starting Capability
• CFM Rating | 24 CFM
• DC Alternator | 240 AMP at 12VDC/24VDC
• Air Pressure | 175 PSIG Max
• Drive System | Dual V-Belt
• Compressor Type | Reciprocating--**NO AIR STORAGE
• Engine Type | 22.1 HP Honda IGX700 EFT ETB
• Fuel Type | Gasoline
• Fuel Capacity | OPTIONAL Remote 11-Gal. Tank

PERFORMANCE

• Vanair Super Capacitor (VSC)
• 3000 + AMPS Starting Capability
• 12VDC/24VDC Charge & Start
• 240 AMP Infinitely Variable Alternator
• 2-Stage Reciprocating Air Compressor
• Up to 24 CFM and 175 PSIG
• Unloader Valves
• Electronic Fuel Injected Honda 22.1 HP IGX700 EFI ETB
• Automatic Electronic Throttle Control
• Heavy-Duty Belt Drive System

SAFETY

• Weather Resistant Electrical Enclosure
• Smart, Self-Regulating Charging System
• Protect•All Safety Technology & Fault Codes

STARTING CABLES

• 30 Feet of 3/0 Polar-Grade Starting Cable
• UL/AWG Specification Compliant
• Fine Stranded, Flexible Copper
• Cold Weather Flexibility
• Tangle Resistant
• Chemical, Abrasion and Water Resistant
• Extruded Polarity Stripe for Safety Identification

CONTROL PANEL

• Color LED Digital Display
• Engine Start/Stop Function
• Hour Meter
• Voltage and Amperage Output Display
• Battery Charge/Start Mode Function
• Integrated Fault Codes and Warnings
• Fault Level (If Applicable)

CONVENIENCE

• Fully Powder Coated Aluminum Enclosure
• Aluminum Enclosure Around Electrical or Critical Components
• 3/16″ Thick Steel Frame
• Optional Removable Lifting Eye
• Easy Service Access

SAFETY

• Weather Resistant Electrical Enclosure
• Smart, Self-Regulating Charging System
• Protect•All Safety Technology & Fault Codes

OPTIONS/ACCESSORIES (SOLD SEPARATELY)

• Remote Panel Connection Harness in Multiple Lengths
• Industrial 3/0 Polar-Grade Starting Cables (25, 30, 35 & 40 ft. Lengths)
• Bumper/Remote-Mount Start

Receptacles

• Vibration Isolators
• Remote Air Tanks
• Remote Fuel Tank
• Remote Battery Box & Battery Kits
• Cable Kits for Connection to Chassis

Battery

• Maintenance Kit
• Cold Weather Kits
• California CARB Compliance Kits
