This Spray Wash Cabinet ships by truck and extra shipping charges will apply to ship to a non-commercial address.

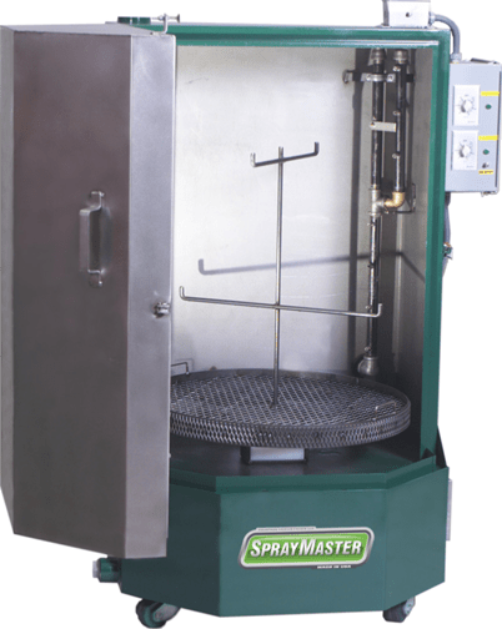

The 9600 front load spray cabinet is our mid-size aqueous front load automated spray wash machine with a large and well supported 30″ turntable with 1000 lbs. weight capacity. The powerful spray wash is designed to clean efficiently and effectively.

Function
High pressure spray paired with detergents and heat remove greases, sludge, dirt, and debris to provide you clean parts with minimal effort. Spray cabinets are exceptional at surface cleaning, and the washing effect rinses down parts thoroughly.

Features:

• Large 30” turntable
• 40” inside working height
• High volume 3.0 H.P. pump with stainless steel impeller
• 9.0 KW heating capacity (2 heaters)
• Adjustable cycle timer from 0 to 60 minutes
• Adjustable heat timer allows you to keep solution hot overnight
• Stainless steel gasket-free front door provides maintenance free operation
• Large 85 gallon fluid capacity
• 12” stainless steel disc skimmer with 45 minute timer
• Center spray bar folds down for cleaning of smaller parts
• Large 500 lb. weight capacity
• Friction turntable drive will not break if a part becomes lodged
• Liquid level sensor automatically turns off heaters before they burn out
• Removable tree rack standard
• Stainless steel nozzles for lower maintenance cost
• Portable with (4) casters
• Shown in Stainless Steal

Specifications:

• Overall Dimensions: 50"W x 42"L x 68"H
• 230 Volt
• 220Vac
• 60Hz
• 1PH
• 60 Amp
• 85 Gallon
• Load Capacity: 500lbs.
• 30" Turntable
• 3HP Pump
• 9 KW Heating Capacity 2 Heaters

***Please contact us for pricing if interested in alternate configurations.
