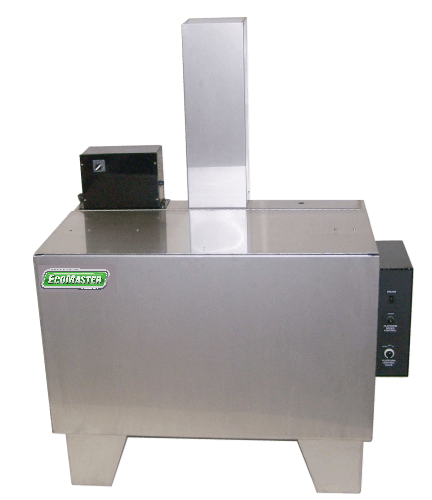

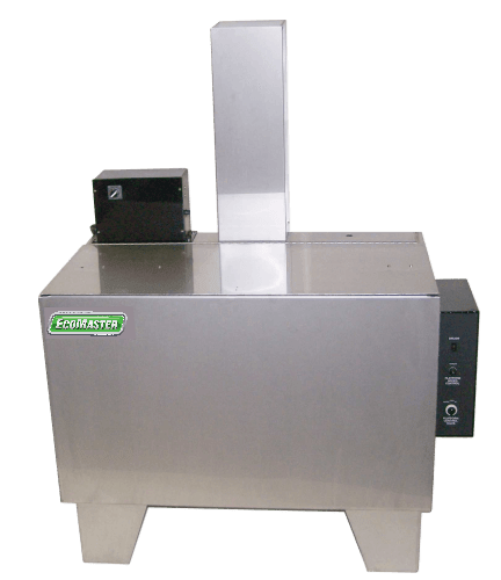

Fountain Industries EcoMaster EM80 80 Gallon Agitating Lift Water Based Heavy Duty Agitating Parts Washer

The EM80 is our medium aqueous agitating lift part washer built for heavy-duty tasks using agitation capable of cleaning deep into crevices and blind holes. The lift and tray are suitable for parts and batch cleaning up to 250 lbs.

Function
Submerged agitation paired with detergents and heat remove greases, sludge, dirt, and debris provide clean parts with minimal effort. Agitation tank washers are well suited for parts with difficult to reach crevices, blind holes, and internal volumes where external spray or manual scrubbing doesn’t reach.

Features:

• Heavy Duty 12GA 304 Stainless Steel Tank
• Self-cleaning agitating platform lifts parts to top for easy loading and unloading
• Filter regulator with auto drain
• Adjustable agitation speed
• Flow-through brush with polyester filaments for the toughest water-based cleaning applications.
• Durable, baked on powder coated epoxy finish
• Not to be used with chlorinated solvents
• Stainless steel spring-loaded door closures
• On/Off Heating with 130°F Thermostat Preset

• Thermostat Over-Temp Protection
• Includes backup thermostat (non-adjustable)
• 6,000-Watt heater
• Electrical plug not included
• Stainless steel
• Low Friction Roller Wheels (No power robbing slides)

• Modular 6kW Heating Available in 230V or 460V 1 PH
• 0.75 HP Industrial Pump 20 GPM @ 28 PSI

• Fire Safety Fusible Link for Lid and Lift

• 80mm Cylinder 930 lbs. Peak Force @ 120 PSI

Specifications:

• Fluid Capacity | 80 Gallons
• Construction | 12 Gauge
• Platform Dimensions | 17.5"w x 41.5"l
• Overall Dimensions | 37.5"l x 51.7"w x 68.8"h
• Tank Dimensions | 27"w x 44.5"l x 28"h
• Fluid Level | 12"
• Load Capacity | 250 lbs.
• Lift Requirements | 8CFM @ 120PSI
• Voltage | 115VAC
• Hertz | 60HZ
• Phase | 1PH
• Amps | 1Amp
• Shipping Dimensions | 43"l x 57”w x 56”h
• Shipping weight | 700 lbs.
• Pump/Motor HP | Fractional

Accessories (Sold Separately):

• 54527 | 10 Micron Filter Kit
• 59173 | 50 Micron Filter Kit
• K8146 | 10 Micron Filter Element
• K8419 | 50 Micron Filter Element
• 54961 | Bolt-on Light Kit
• 58451 | Air Manifold
