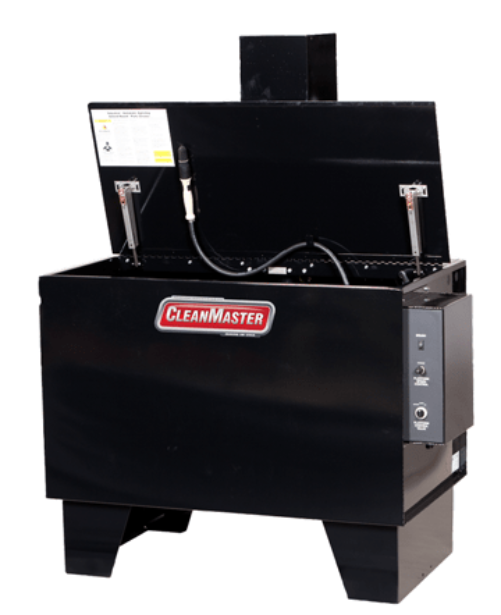

Fountain Industries CleanMaster 80, 80 Gallon Agitation Lift

The CM80 is our medium solvent agitating lift part washer built for heavy-duty tasks using lift agitation to clean deep into crevices and blind holes. Parts can also be lowered to soak as a traditional dip tank. The lift and tray are suitable for parts and batch cleaning up to 250 lbs.

Function
Submerged agitation paired with detergents and heat remove greases, sludge, dirt, and debris provide clean parts with minimal effort. Agitation tank washers are well suited for parts with difficult to reach crevices, blind holes, and internal volumes where external spray or manual scrubbing doesn’t reach.

Features:

• Heavy Duty 12GA 304 Stainless Steel Tank

• 5 Sq.Ft., 41.5” x 17.5” Lift Platform

• 250 Lbs. Weight Capacity

• 80-Gallon Fluid Capacity

• Low Friction Roller Wheels (No power robbing slides)

• Fire Safety Fusible Link for Lid and Lift

• 80mm Cylinder 930 lbs. Peak Force @ 120 PSI

• Flow Requirements: 3 CFM @ 120 PSIAL Solvent Series
• HEAVY DUTY - with Agitating Lift
• For use with petroleum solvents with a flash point over 104°F
• Not to be used with chlorinated solvents
• Heavy duty steel construction for long lasting durability
• Operates on 120 psi air pressure
• Heavy-duty self-cleaning agitating lifts to top for easy loading and unloading of parts
• Flow-through hand held brush
• Preset 120 psi filter regulator with auto drain
• Agitation speed adjustable from 0 to 160 agitations per minute
• Durable, baked on powder coated epoxy finish
• Stainless steel spring-loaded door closures

Specifications:

• Overall Dimensions | 50.5"l x 66"w x 70"h

• Inside Dimensions | 27.25"w x 44.5"l x 28"d
• Shipping Dimensions | 56"l x 69"w x 57"h
• Shipping Weight | 1200 lbs.
• Fluid Capacity | 80 Gallons
• Load Lift Over | 38"
• Voltage | 115Vac
• Hertz | 60Hz
• Phase | 1PH
• Amps | 1Amp
• Pump HP | Fractional
• Load capacity | 250 lbs.
• Lift Air Requirements | 8CFM@120PSI

Accessories:

• 54527 | 10 Micron Filter Kit
• 59173 | 50 Micron Filter Kit
• K8146 | 10 Micron Filter Element
• K8419 | 50 Micron Filter Element
• 54961 | Bolt-on Light Kit
• 58451 | Air Manifold
