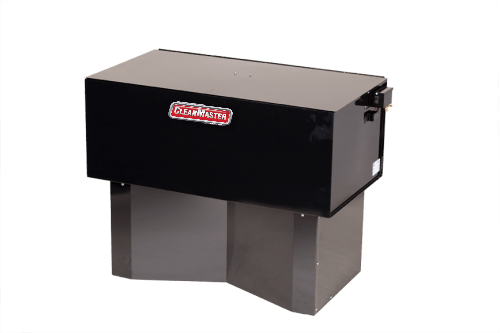

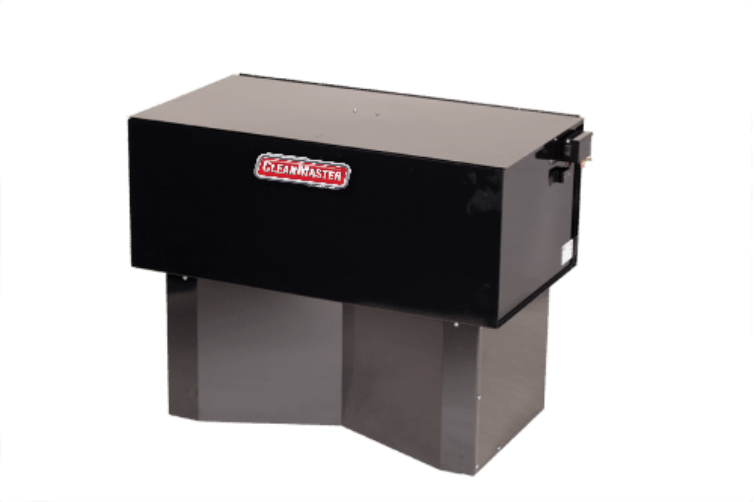

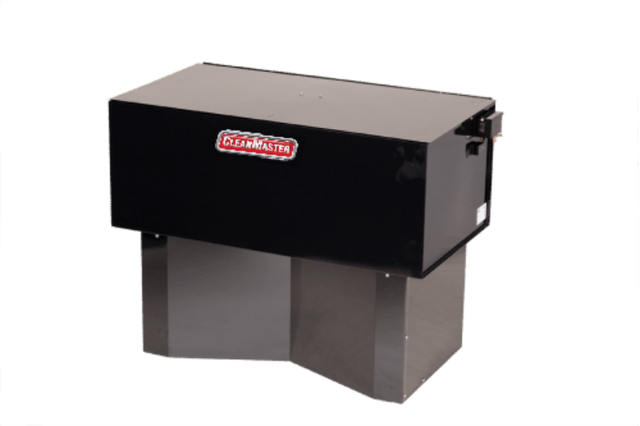

Fountain Industries CleanMaster 440 45 Gallon Clean & Soak Solvent Parts Washer

Fountain products are USA designed and manufactured rooted in half a century of expertise building commercial grade equipment engineered for the rigors of industry. Our designs benefit from continuous improvement from modern technologies and materials, valuing the voice of the customer, and a desire to lead and never follow. The CM440 is our large, solvent, manual parts washer with a work trays over solution design for dry zone cleaning and handling and efficient access to solvent for soak. Work area is specifically maximized for in the CM440 to handle bigger parts and large batches.

Function
Ergonomic manual parts cleaning with a sturdy work tray surface and flexible rinse spigot. Dedicated parts basket allows for small part containment and soaking. The work tray can be lifted to access and soak larger parts. Quality of life improvements include rinse gun, supplied parts basket, and accessories like flow-through brush and light kits are available.

Applications
Industrial Cleaning, Automotive Service/Repair, CNC Fabrication Rinse, Agricultural Fabricators, Agricultural Maintenance/Repair, Power Sports Shops, Government Municipalities, Aerospace, Post Processing, Military Service/Repair

Features:

• 16GA CRS Epoxy Powder Painted Tank

• 6.3 Sq.Ft., 43" x 24" Work Tray

• 250 Lbs. Weight Capacity

• 35-Gallon Fluid Capacity

• 8" Max Soak Depth

• Easy Lift Spring Assisted Lid
• Fire Safety Fusible Link for Lid

• 115V Electric Circulation Pump with On/Off Control
• For use with petroleum solvents with a flash point over 104°F
• Not to be used with chlorinated solvents
• Filter screen filters out abrasive particles, protects pump, keeps solvents clean for extended cleaning power, lifts out for easy cleaning
• Durable, baked on powder coated epoxy finish
• Spring loaded door closure with 165°F fusible link
• "Stay-Put" flexible metal hose directs and holds power rinse where you want it
• Pistol-grip spray nozzle cleans and rinses parts easily. Located in an out-of-the-way position for more working area
• Parts basket
• Adjustable work shelves lift up and out and place on lower level, handy for deeper soaking
• 3/4" drain plug located on bottom front of the machine for easy draining
• Consult factory for air and 230V units

Specifications:

• Overall Dimensions | 24"w x 45"l x 36"h

• Overall Dimensions (Open) | 24.5"d x 47.25"w x 59.5"h

• Inside Dimensions | 23"w x 44"l x 18.5"d

• Soaking Capability | 9.5"

• Shipping Weight | 175 lbs

• Voltage | 115 Vac

• Hertz | 60Hz

• Phase | 1PH

• Amps | 1Amp

• Main Fuse | n/a

• Heating/Wattage | n/a

Standard Accessories:

• Parts basket

• Rinse gun

• Pump pre-filter (SS mesh with synthetic poly inner)

Optional Accessories:

• LED Light Kit

• Inline Filter Assembly (for Manual Wash Spigot)

• Flow-through brush accessory with hose (attaches to end of flexible spigot)
