Emerson 220 & 220-07Xl Sprayer Bundle

One Bundle. Every Height You Need for Farm Sprayer Service.

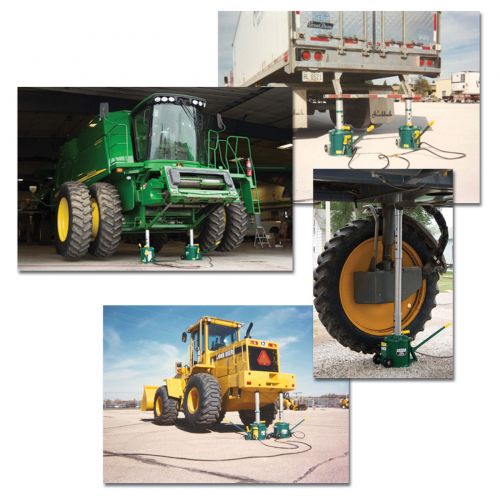

Servicing a modern farm sprayer means working at heights that standard jacks simply weren't built for. This bundle pairs the Emerson Model 220 12-Ton Air Lift Jack (EME220) with the Emerson Model 220-07XL 44" Sprayer Extension (EME22007XL) — giving you a complete, ready-to-work solution straight out of the box.

What's in This Bundle

• Emerson Model 220 Air Lift Jack (EME220) — 12-ton capacity (per unit), patented beveled piston and guide for smooth, controlled lifting. Includes 6" and 24" extensions, lifting saddle, handle, air valve, and 2 safety pins. Weighs 150 lbs. Made in the USA.
• Emerson Model 220-07XL 44" Sprayer Extension (EME22007XL) — 44-5/8" extra-long extension with 3 adjustment holes at 3-1/4" increments. Designed specifically for the Model 220. Made in the USA.

Height Reference (Model 220 + 220-07XL)

• Extra-long extension + short extension at low point: 54" tall
• All three extensions at low point: 84" tall
• Add 10" jack stroke to all heights for maximum reach


Jack Specs (EME220)

• Capacity: 24,400 lbs per pair at 100 PSI
• Low height: 16" (without extension)
• High height: 54" (extension at full stroke)
• Ram travel: 6" | Safety pin positions: 10"
• Base diameter: 3" | Weight: 150 lbs
• Drive: Air-powered with quick snap-detachable handles

Both components are Made in the USA. Buying the bundle means you're set up for sprayer service from day one — no waiting on a separate extension order.
