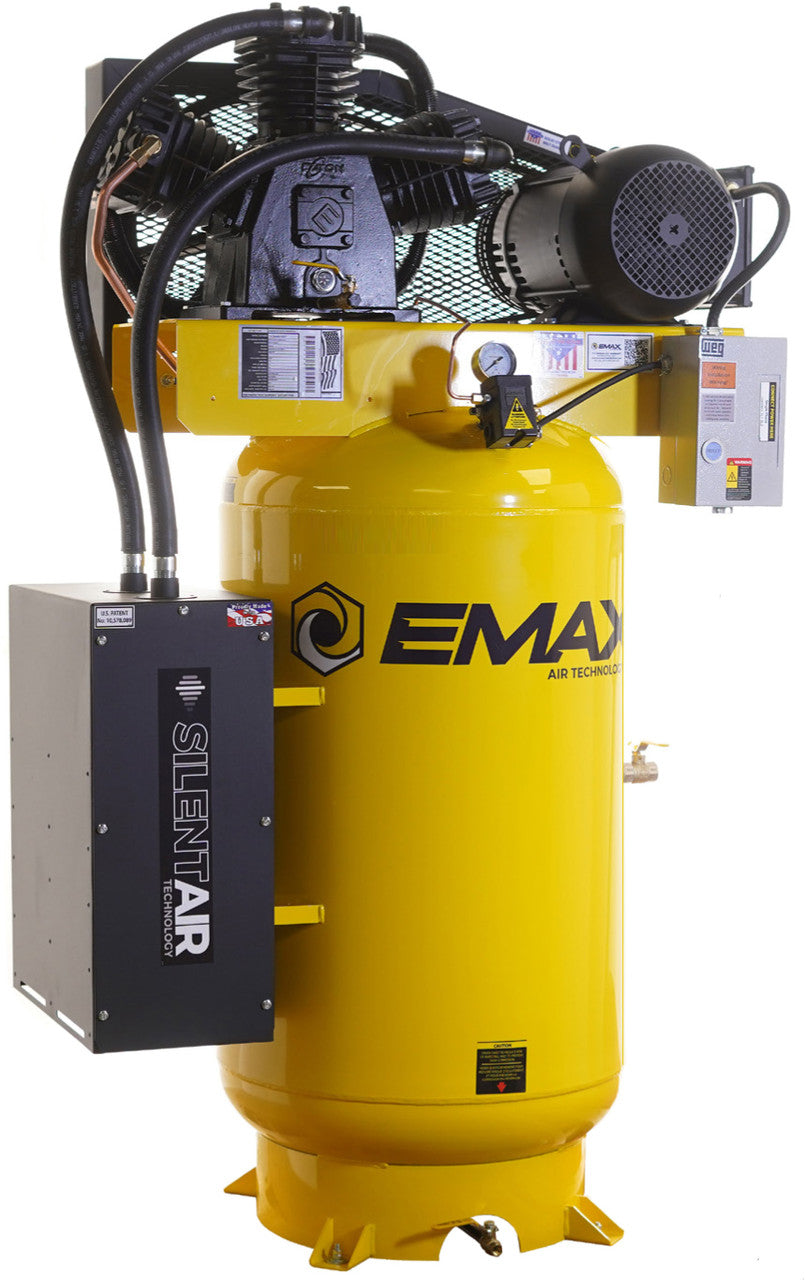

EMAX ESS07V080Y1, Silent Air Industrial 7.5HP 3CYL Two Stage 1Ph 26 CFM 80 Gallon Air Compressor w/isolator pads

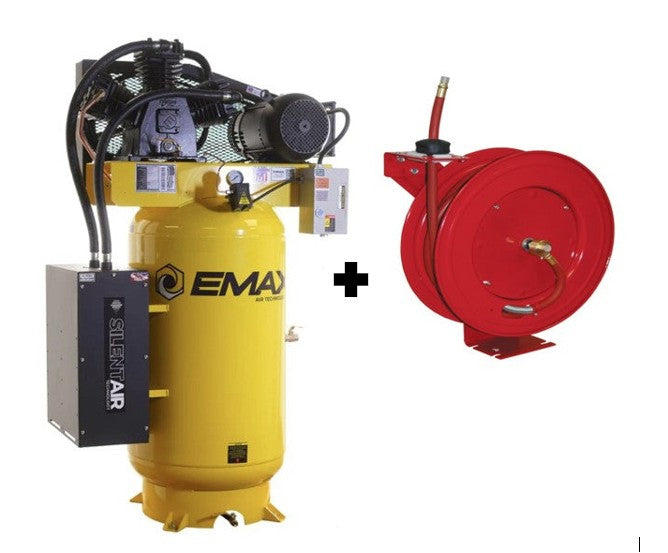

***FREE ATD-31166 HOSE REEL, 3/8" X 50' (HOSE INCLUDED)***

Motor

• Running HP | 7.5 HP INDUSTRIAL 1:1 SERVICE FACTOR MOTOR
• Voltage | 230
• Motor RPM | 1740
• Phase | Single
• Magnetic Starter | Yes
• Motor | Open Drip Proof
• Number of Belts | 2

Pump

• CFM | 25.6 @ 100 PSI
• Pump Type | Splash Lubricated
• RPMS at Max | 770
• Valves | Removable Disc Industrial Valves
• Rods | 2 - Solid Steel
• Pump Life | 50000
• Extended Lifetime Pump Warranty ***Optional

Specifications:

• Part Number | ESS07V080Y1
• Tank Size | 80 Gallon
• Certification | ETL
• Uncrated Weight | 581

• Crated Weight | 730

• Uncrated Dims | 39"l x 25"w x 75"h

• Crated Dims | 48"l x 46"w x 87"h
• Warranty | 5 Years: 1 YR STD, 4 YR Extended
• Noise Level | Conversation Level
• Belt Tension Adjuster | No
• Auto Drain | No
• Continuous Run | No
• 1 Qt of Air Compressor Oil | Yes
• Vibration Isolator Pads (Set) | Yes
• Air Silencer With 5 Stage Filtration | Yes
• Belt Guard | 16 GA Steel
• Drive Type | Electric

• Tank Drain | Manual

• Smart Air | N

• Compressor Type | Piston

• Duty Cycle | 0.6

• Outlet Size | 3/4"

• Pump Stage | 2

• Pump Model | APP3Y0732TR2

• Pump Riser | N

• Radiator | N

• Peak Starting Amps | 210

• CFM At Max PSI | 24

• Battery Included | N/A

• FLA + 1.15 Service Factor | 38.9

• Locked Rotor Amps | 210

• Recommended Breaker | 50

• Max PSI | 175

• Oil Capacity | 1.6

• Start Type | FIXED

• Certifications | ETL, ASME, CRN

• Service Kit | EFKIT008AWBS
