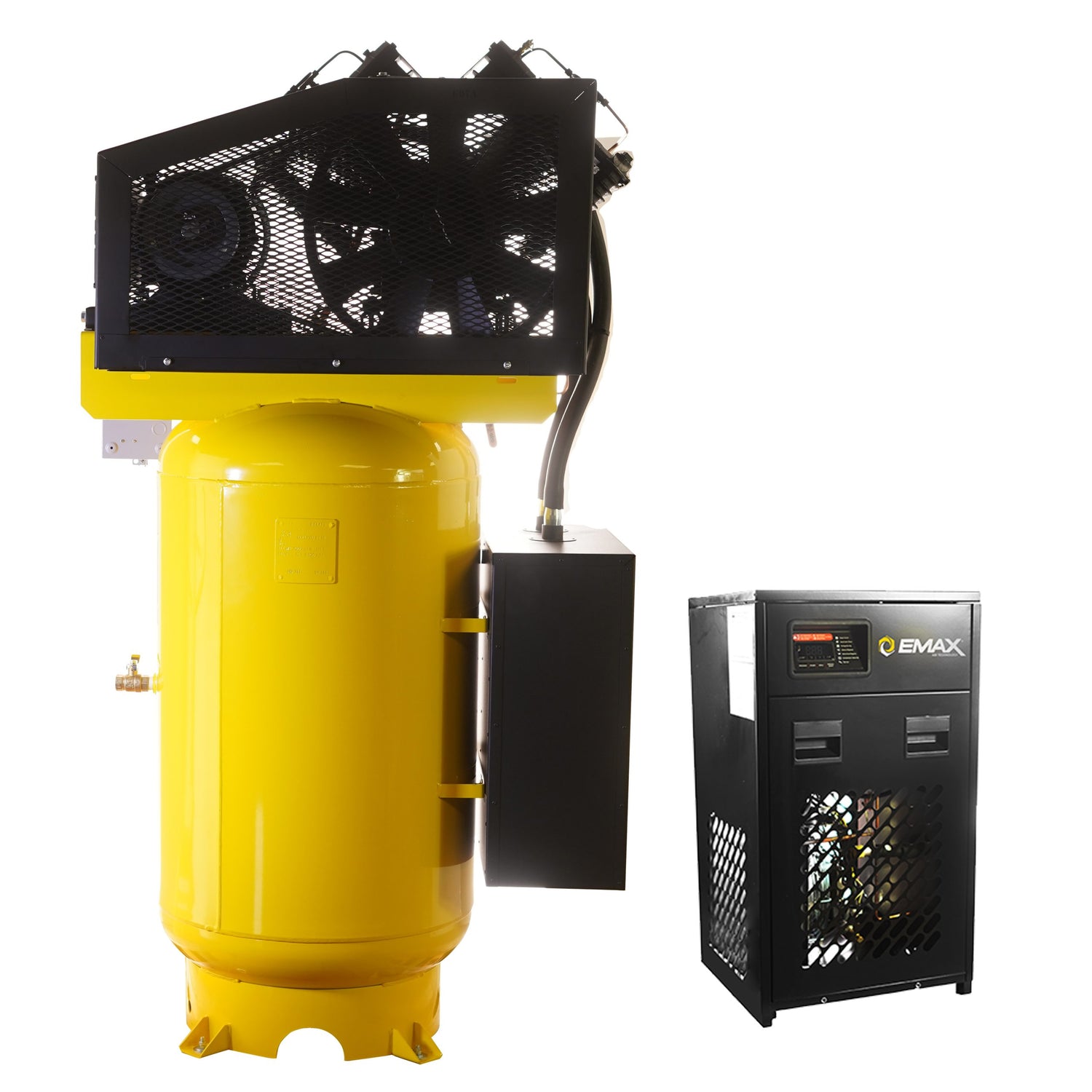

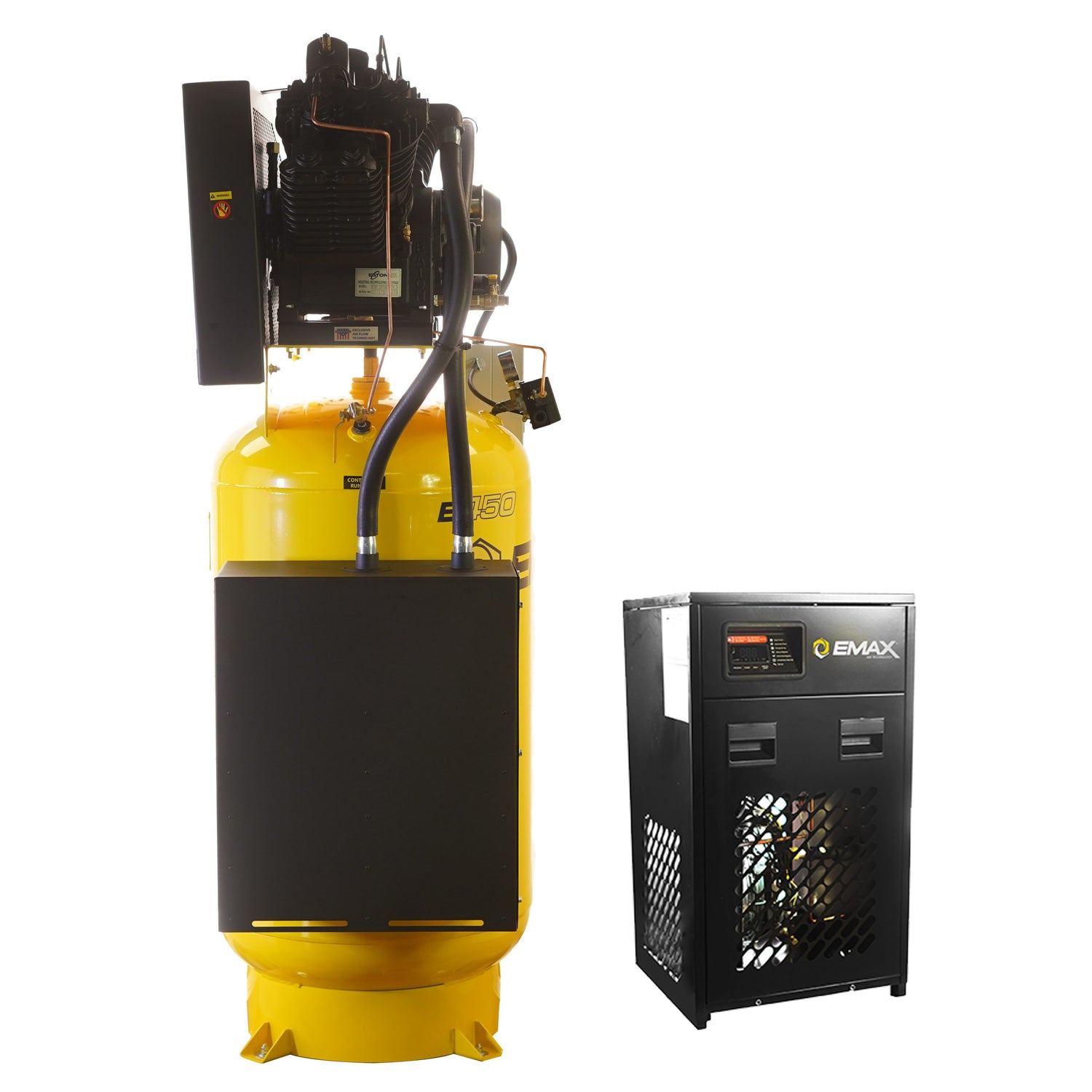

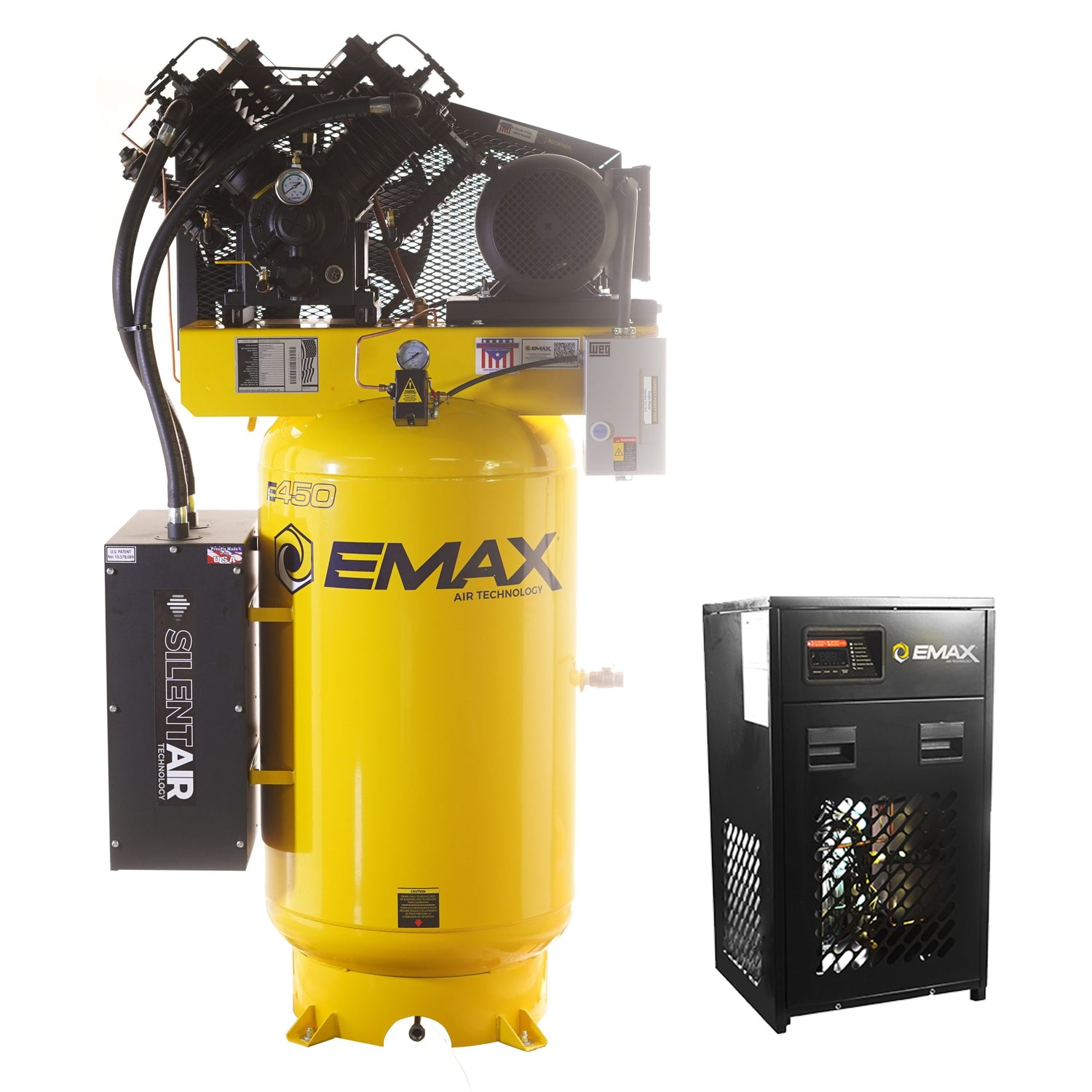

Emax ESPR07V080V1PK Silent Air Industrial 7.5HP 31CFM 1- Phase 2-Stage 80 Gal

EMAX Silent Air Industrial 7.5HP 31CFM 1- Phase 2-Stage 80 Gal. W/Radiator After Coolers Vertical Stationary Electric Air Compressor-W/ Pressure Lube Pump , Isolator Pads, Belt Tensioner, Continuous Run, Auto Drain, Bundled w/ 58CFM Refrigerated Air Dryer

Features:

• Silent Air
     -Silent Air Technology
     -Air Filtration
     -Noise Reduction

• Pressure Lubrication Pump
     -100% Cast Iron Pump
     -High Performance
     -Rifle Drilled
     -Critical Components Coverage
     -Optional Head Unloaders
     -Piston Rings
     -Gaskets
     -Flywheels 5–25 HP
     -Piston and Connecting Rod
     -Disc Valves
     -Oil Pump
     -Solid Cast Iron Cylinder Heads
     -Cast Iron Cylinders

• Package- Air dryer & Prefilter

• Riser

• Auto Drain

• Belt Tensioner

• Belt Drive | V-Belt Design

Specifications:

• HP | 7.5

• Tank Size | 80

• Voltage +/- 10% | 230

• Phase | 1

• Drive Type | Electric

• Tank Drain | Automatic

• Pump Type | Pressure

• CFM | 31.00

• Silent Air | Y

• Smart Air | N

• Compressor Type | Piston

• Motor Type | ODP

• Tank Orientation | Vertical

• Outlet Size | 3/4"

• Belt Count | 2

• Pump Stage | 2

• Pump Model | APP4V1043TP

• Pump Riser | Y

• Belt Tensioner | Y

• Mag Starter | Y

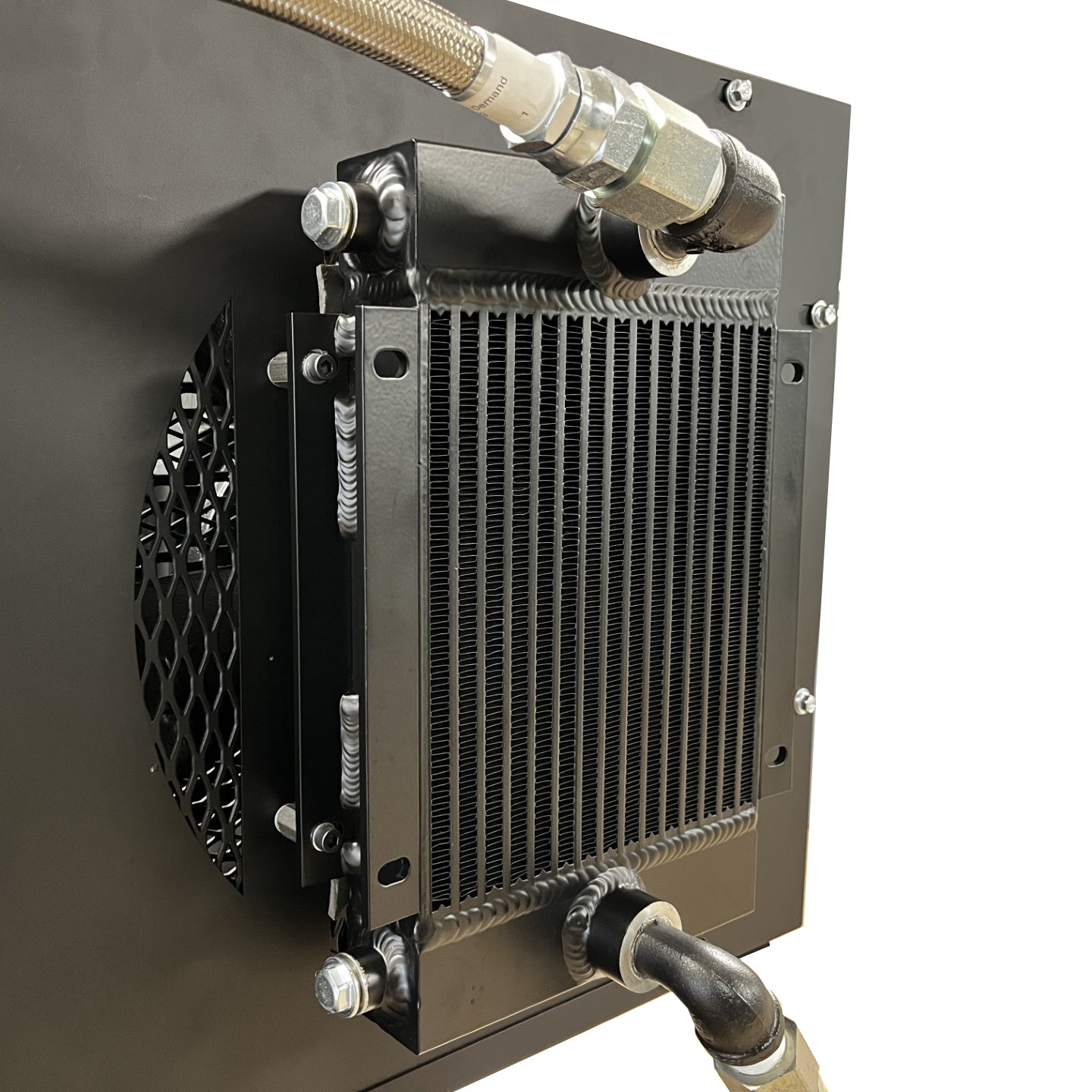

• Radiator | Y

• Peak Starting Amps | 210

• Pump RPM | 590

• Motor RPM | 1740

• FLA + 1.15 Service Factor | 38.9

• Locked Rotor Amps | 210

• Recommended Breaker | 50

• Max PSI | 175

• Uncrated Weight | 763 lb

• Crated Weight | 1019 lb

• Crated Dims | 48"l x 46"w x 87"h

• Oil Capacity | 2

• Oil U/M | Quarts

• Start Type | FIXED

• Estimated Pump Life (Hours) | 70000

• Certifications | ETL,ASME,CRN

• Service Kit | EFKIT008AWBS

• Battery Voltage | 0

• DBA | 0

• Max Ambient Temp (F°) | 0

• Max Inlet Temp (F°) | 0
