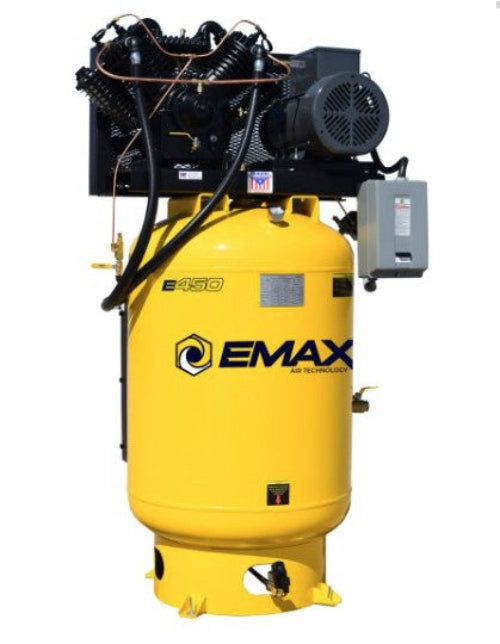

Emax 10 HP Industrial Air Compressor, 2 Stage, 1 Phase, 120 Gallon, Vertical, Silent Air System

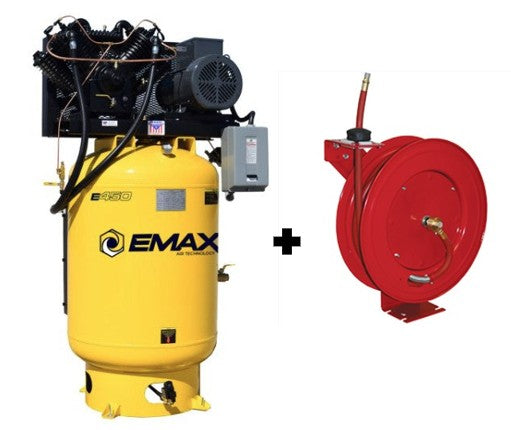

***FREE ATD-31166 HOSE REEL, 3/8" X 50' (HOSE INCLUDED)***

Silent Air Quiet Air Compressor

This EMAX Industrial Plus 10 HP 2 Stage V4 1 Phase vertical 120 gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 38 SCFM @ 100 PSI, top PSI of 175. Our unit features industrial 1750RPM electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron 70,000 Hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Whisper100 silent air system already installed. The Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry!

• Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating
• Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
• Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
• Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
• Silent Air Technology
• ETL Certified

Specifications:

• Weight | 1068 lbs

• HP | 10

• Tank Size | 120

• Voltage +/- 10% | 230

• Phase | Single

• Drive Type | Electric

• Tank Drain | Automatic

• Pump Type | Pressure

• CFM | 38

• Silent Air | Y

• Smart Air | N

• Compressor Type | Piston

• Motor Type | ODP

• Duty Cycle | 0.6

• Outlet Size | 1"

• Belt Count | 2

• Pump Stage | 2

• Pump Model | APP4V1043TP

• Pump Riser | Y

• Belt Tensioner | Y

• Magnetic Starter | Y

• Radiator | N

• Continuous Run | Y

• Peak Starting Amps | 270

• CFM At Max PSI | 34

• Battery Included | N/A

• Pump RPM | 730

• Motor RPM | 1740

• FLA + 1.15 Service Factor | 52.9

• Locked Rotor Amps | 270

• Recommended Breaker | 60

• Max PSI | 175

• Uncrated Weight | 967

• Crated Weight | 1116

• Uncrated Dims | 44"l x 31"w x 80"h

• Crated Dims | 48"l x 46"w x 87"h

• Oil Capacity | 2

• Oil U/M | Quarts

• Start Type | FIXED

• Estimated Pump Life (Hours) | 70000

• Certifications | ETL,ASME,CRN

• Service Kit | EFKIT008AWBS
