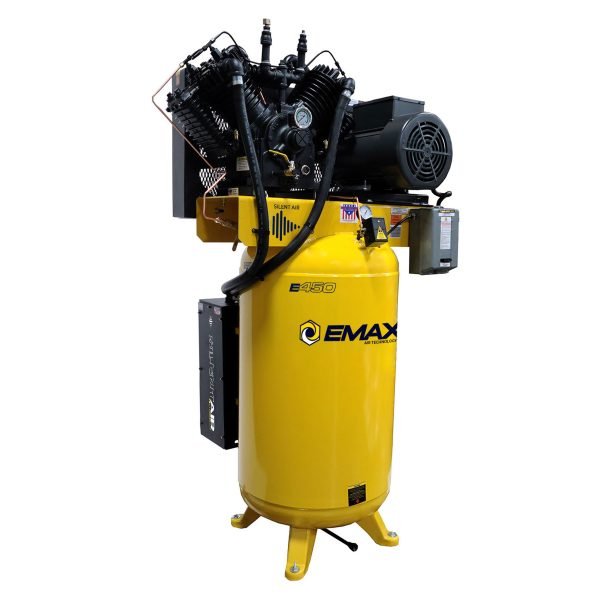

Emax ESP10V080V1 10HP 80 Gallon Air Compressor
Emax ESP10V080V1 10HP 80 Gallon Air Compressor is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489
EMAX Silent Air Industrial Plus 10HP V4 38CFM 1- Phase 2-Stage 80 Gal. Vertical Stationary Electric Air Compressor-W/ Pressure Lube Pump , Isolator Pads, Belt Tensioner, Continuous Run, Auto Drain
Emax's Patented Silent Air system works by dissipating compressor intake noise through a series of noise cancellation plates, reducing DBA ratings by up to 50%. Silent air compressors operate at a normal conversation level in comparison to traditional compressors that operate at the level of a police siren.
This low-profile system not only makes the compressor quieter but also adds four levels of air filtration.
Pressure Lubrication is the second type of lubrication systems. This system is more technically advanced and a far more precise method to deliver oil to critical parts of the pump, resulting in longer pump life. The oil is pumped through an oil filter and into the pump where it is then recycled and reused. Since the oil pump is delivering the oil more efficiently the viscosity of the oil is less critical than with a splash system. In the air compressor industry, it is typically more costly to upgrade to pressure lubrication systems. *Our high efficiency manufacturing facility to the tank. With this radiator, we target outlet air to the tank within 10 degrees of ambient temperature.
Our pump mounting plate riser is designed to raise the pump allowing 360-degree air flow from the flywheel to cool the pump oil reservoir. Pump mount risers also allow air to flow under the pump for maximum cooling.
Piston compressors come optional with a belt tensioner. This belt tensioner allows you to easily and quickly tighten your belts. These tensioners also have a double bolt tension device that allows you to keep the belts in perfect alignment. No pry bars needed to tighten your belts.
A dual timer electric auto drain is a device designed to expel moisture and water from the air receiver tank.
It has an adjustable interval setting feature that allows you to set the device from 1 to 45-minute drain cycles. You can also set the timing of how long you want the drain to stay open.
Our premium series compressors Include an air muffler for quiet dispensing of water.
Our belt driven compressors are driven by V belts that allow you to adjust the pump speeds by changing pulley sizes.
Specifications:
- Weight | 935 lbs
- HP | 10
- Tank Size | 80
- Voltage +/- 10% | 230
- Phase | 1
- Drive Type | Electric
- Tank Drain | Automatic
- Pump Type | Pressure
- CFM | 38
- Silent Air | Y
- Smart Air | N
- Compressor Type | Piston
- Motor Type | ODP
- Tank Orientation | Vertical
- Duty Cycle | 0.6
- Outlet Size | 3/4"
- Belt Count | 2
- Pump Stage | 2
- Pump Model | APP4V1043TP
- Pump Riser | Y
- Belt Tensioner | Y
- Mag Starter | Y
- Radiator | N
- Continuous Run | Y
- Peak Starting Amps | 270
- CFM At Max PSI | 34
- Battery Included | N/A
- Pump RPM | 730
- Motor RPM | 1740
- FLA + 1.15 Service Factor | 52.9
- Locked Rotor Amps | 270
- Recommended Breaker | 60
- Max PSI | 175
- Uncrated Weight | 726
- Crated Weight | 875
- Uncrated Dims | 39"l x 25"w x 75"h
- Crated Dims | 48"l x 46" x 87"
- Oil Capacity | 2
- Oil U/M | Quarts
- Start Type | FIXED
- Estimated Pump Life (Hours) | 70000
- Certifications | ETL,ASME,CRN
- Service Kit | EFKIT008AWBS
