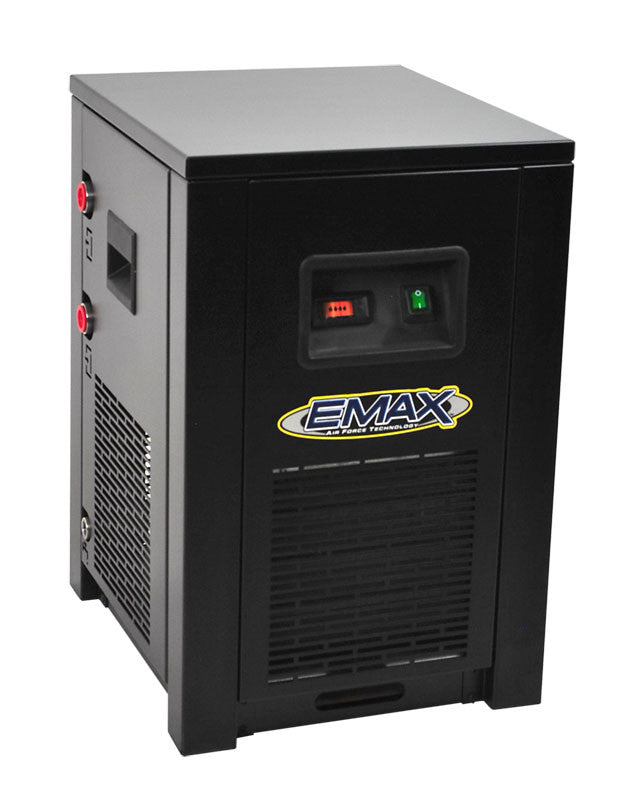

EMAX EDRCF1150030 30 CFM 115V Refrigerated Air Dryer

A coalescing filter is a device that removes oil and solids from the air stream. Coalescing filters also remove dirty matter and particulates into a drain trap.

Features:

• Keep Water, Oil, And Dirt Out of Your Compressed Air

• Energy Efficient Aluminum Refrigerated Air Cooling System

• Designed for maximum performance and efficiency

• Rust Free, Stainless Steel Heat Exchanger

• Maximum heat transfer, maximum dryer life & less maintenance

• Refrigerated Air Inlet Inner Cooler

• Provides trouble free operation for high temp cooling

• Environmentally Safe

• Uses 134A refrigerant to prevent damage to the ozone layer

• Compact And Efficient

• Great for a 5-7.5 HP systems

• Easy To Install

• Uses 120V single-phase power, no special wiring needed

• Auto Drain System

• Refrigerant Pressure Gauge

• Outlet Air Baffle Heater

• Purifies compressed air by chilling to condense moisture

• Condensate is drained carrying oil & dirt partials away from the air

• Auto drain system – eliminates the need for daily maintenance

• Refrigerant pressure – gauge clearly monitors performance of dew point temp
• (models under 400 CFM)

• PLC Display (models 400 CFM & above)

• Outlet air baffle heater – prevents condensation on outlet air piping

• Heavy duty steel cabinet

• Trouble free operation refrigerated air inlet inner cooler for high temp cooling

• Top mounted condenser & fan motor

• Environmentally friendly 134A refrigerant

• 5 year Warranty on the Heat Exchanger

• 2 year warranty on the unit

Specifications:

• Phase | 1

• CFM | 30

• Air Inlet/Outlet | 1/2"

• Dew Point | 37

• Max Ambient Temp (F°) | 122

• Max Inlet Temp (F°) | 140

• Refrigerant Type | R134A

• CFM At Max PSI | 30

• FLA + 1.15 Service Factor | 5.1

• Recommended Breaker | 6

• Max PSI | 230

• Uncrated Weight | 78

• Crated Weight | 125

• Uncrated Dims | 15"l

• 15"w x 32"h

• Crated Dims | 36"l x 36"w x 39"h

• Certifications | UL/CSE

• Service Kit | FKIT011C
