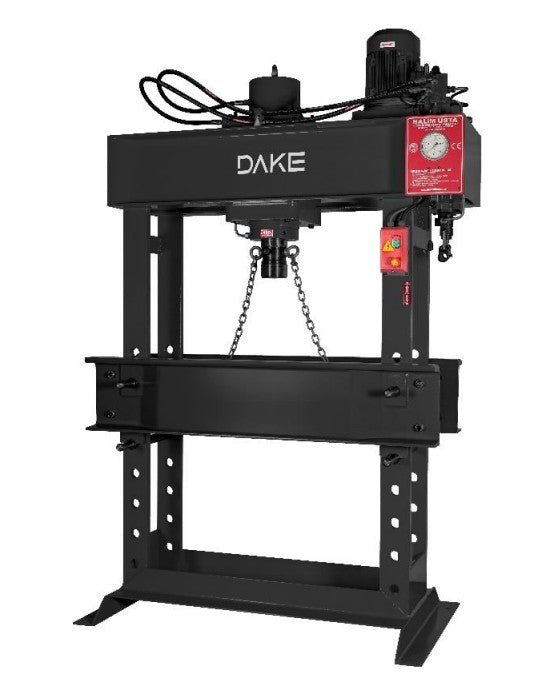

Dake EM-160 H-frame Hydraulic Double Acting Cylinder Press 160 Ton

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Features:

• 220-volt 3-phase motor with plug makes for greater portability

• Welded steel frame for rigidity

• Pressure gauge

• Double acting cylinder

• Fast, quiet, dependable, economical price, smooth operating press that is very simple to operate.

• Heavy adjustable table can be set to a comfortable work height via lifting chains and workhead. Massive table pins keep the table securely in place during the pressing operations.

• Panel mounted 24-volt CE approved with joystick operation

• Head traverses left to right

• V-Blocks

• Manual & Electric Operation

Specifications:

• Machine Type | H-frame hydraulic powered

• Capacity | 160 tons

• Maximum Operating Pressure | 400 bar

• Minimum Operating Pressure | 30 bar

• Ram Travel | 15.75"

• Ram Pressing Speed | 19 i.p.m.

• Horsepower | 7.5 HP

• Hydraulic Pump | 4.5 Gal/Min

• Filter Type | Cartridge type / external access - Sanction - Pollution Filter

• Controls Panel | Mounted 24-volt CE approved with joystick operation

• Oil Capacity | 10.5 U.S. gallons approx.

• Weight | 3,310 lbs.

• Overall Height | 102"

• Base Width | 87"

• Depth | 47"

• Width Between Uprights | 61"

• Maximum Ram to Table | 35.5"

• Minimum Ram to Table | 10"

• Voltage | 220-volt 3-phase - Machine should be wired to main service by a qualified Electrician

• Operating Temperature | No special operating temperature level
