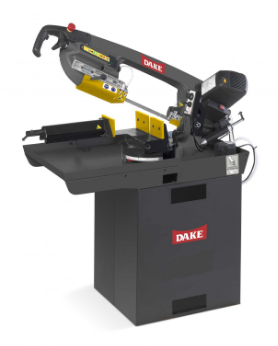

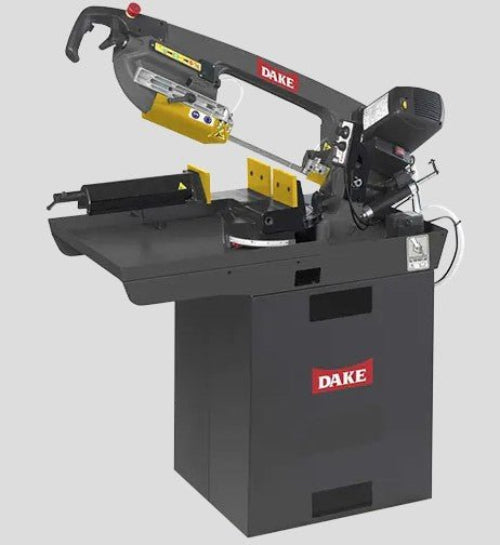

Dake 983110-1 SE-6.5 M Mitering Bandsaw
Mitering bandsaw with dual operating modes and hydraulic controlled down feed. 2.5HP, 120V motor with up to 60°right mitering capabilities. Ergonomic design for operator’s comfort and control. Variable speed with rotary adjusting wheel and “Constant speed control” Maintains constant speed to prevent bog downs when cutting.
Features:
- Hydraulic controlled down feed with manual return
- Automatic shut off at the end of the cut
- Dual operating modes, manual cutting or head feed cutting
- Powerful, manual clamping vise, with quick release lever for rapid vise opening and closing action for fast material size change over. The vise clamps material firmly.
- Ergonomic designed for operator’s comfort and control
- Motor gearbox combination bolted to the bow for less vibration
- Variable speed with rotary adjusting wheel and “Constant speed control” Maintains constant speed to prevent bog downs when cutting
- CE Certified electronics. Low voltage switches. Thermo over load protection, low voltage protection with low voltage trigger motor start switch
- Blade tensioning is done via. “Go No Go” tensioning system with LED taking the guess work out of tensioning. Saw will not run if blade tension is not correct
- Miters up to 60° right. Mitering pre-sets with slide stops makes set up fast and has precise with miter scale for all angles in between. The head turns-the material doesn’t
- Horizontally mounted guide arms for more rigidity and straightest cuts. Guides are rollers with carbide inserts that are fully adjustable and replaceable
- Electric coolant pump and self-contained coolant system
- 120 volt means you can use it most anywhere
- Steel fabricated base, and stock stop gauge, one Bi-metal blade
Standard Equipment:
- Steel base
- Blade
- Quick release vice
- 120V Motor
Specification:
- Part Number | 983112-2
- Capacity | 10" Round
- HorsePower | 2.75
- Voltage | 220V 3 Phase
- Maximum Blade Speed | 230 FPM
- Blade Width | 1"
- Blade Length | 108"
- Blade Speed | 115-230 FPM
- Solid Round 90° Capacity | 10"
- Solid Round 45° Right Capacity | 8"
- Solid Round 60° Right Capacity | 5"
- Solid Square 90° Capacity | 7 1/2"
- Solid Square 45° Right Capacity | 7 1/2 / 6 3/4"
- Solid Square 60° Right Capacity | 5"
- Solid Rectangle 90° Capacity | 10 1/2" x 7 3/4"
- Solid Rectangle 45° Right Capacity | 8 1/4" x 3 1\8"
- Solid Rectangle 60° Right Capacity | 4 3/4" x 5 1/4"
- Worktable Height | 37"
- Height | 74"
- Floor Space | 28" x 66"
- Weight | 308 lbs
