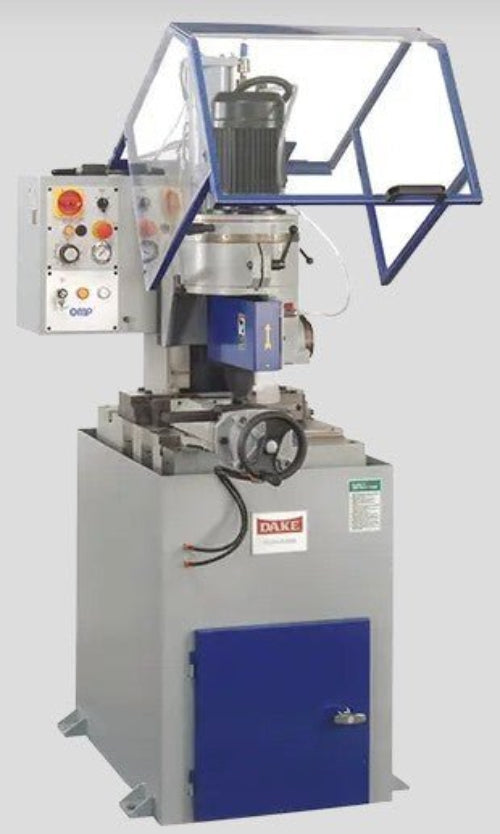

Dake 976200 Euro 370 S Semi-Automatic Cold Saw, Ferrous Head
Dake 976200 Euro 370 S Semi-Automatic Cold Saw, Ferrous Head is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489
Dake 76200 Euromatic 370S Cold Saw
Semi-automatic ferrous saw that’s user friendly for set up and operation. Featuring two removable surface wear plates, heads that rotate 45º and 90º left/right, three gib guides, a manual oiler, and a self-adjusting, metal chip brush.
440V model requires step-down transformer for operation (part number: 300674) Sold Separately
Features:
- Head rotates 45º right of center for miter cutting and up to 90º left of center for miter cutting and slotting
- Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute
- Manual oiler to lubricate 1″ thick, hardened vertical ways
- 3.5/4.5 HP motor has the muscle to drive a 14-1/2″ or 12″ blade quickly and quietly through solids
- Clear acrylic hood has shock assists for raising and lowering and electrical interlocks
- Table features two removable surface wear plates to support longer cut lengths
- Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustment
- Rear surface of the gearbox is machined with interlocking circles to evenly distribute oil over the ways
- Large automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr arm
- Self-adjusting, metal chip brush fills removable chip drawer
- Ability to add a programmable feed system to make fully automatic with wide range of capabilities
- Swap cutting head to gain non-ferrous/ferrous option on same saw
Standard Equipment:
- Blade
- Coolant
- Saw blade selector calculator
- Tools kit for changing blades
- Instruction and service manual
- Adjustable positive stop
Specifications:
- Voltage | 220V
- Horsepower | 3.5/4.5
- Cutting Ability | Non-Ferrous/Plastics
- Maximum Blade Diameter | 14-1/2″
- Maximum Vise Opening | 8-3/4″
- Maximum Feed Vise Opening | n/a
- Maximum Angle | 45° / 90° Left / Right
- Slotting | Yes
- Phase | 3
- Speeds | 25/50 rpm
- Weight | 1,360 lbs
- Solid Round 90° Capacity | 4-1/4″
- Solid Round 45° Capacity | 3-5/8″
- Tube 90° Capacity | 5-1/16″
- Tube 45° Capacity | 5″
- Square 90° Capacity | 4-1/4″
- Square 45° Capacity | 3-7/8″
- Rectangle 90° Capacity | 4″ x 7″
- Rectangle 45° Capacity | 4″ x 6″
- Work Height | 35″
- Height | 73″
- Width | 28″
- Depth | 39″
