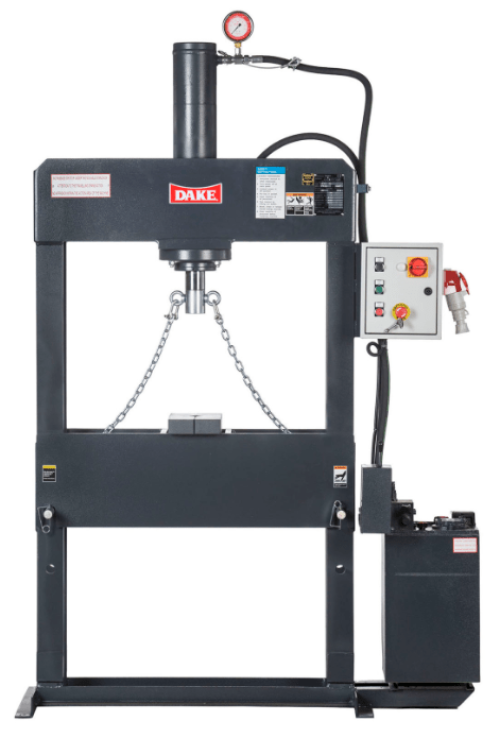

Dake 972003 Force 40 Dura Press Hydraulic Presses

Actual Product May Differ From Image Shown

The price leader for a total capability press. These Three Phase Dura Presses feature a double-acting cylinder, ram with lifting eyes, and rapid advance of the ram. They also come with a 2HP submerged motor.

Features:

• Double acting cylinder design with 5-part oil seals for smooth operation and a tight seal.
• Welded heavy steel plate frame for greater rigidity.
• All electrical controls are low voltage (24V).
• Preset and factory-sealed relief valve to prevent exceeding pressure capacity.
• Ram has lifting eyes that attach a chain to hydraulically move the table.
• 2 HP submerged motor drives two centrifugal pumps for quiet, steady oil flow.
• Smooth, responsive control valve.
• Rapid advance of the ram to the work piece - speed shifts automatically when contact is made.

Standard Equipment

• Frame
• 2 cast steel table plates (except 200-ton)
• Lifting Chain
• Cylinder
• Pressure gauge

Specifications:

• Model | Force 40
• Number | 972003-2
• Capacity | 40 tons
• Horsepower | 2
• Ram Speed Advance | 68
• Ram Speed Pressing | 7
• Width Between Uprights | 35"
• Width Between Table Channels | 8"
• Minimum Ram To Table | 7"
• Maximum Ram To Table | 32"
• Ram Travel | 19"
• Base | 63" x 27"
• Height | 88"
• Weight | 1210 lbs
