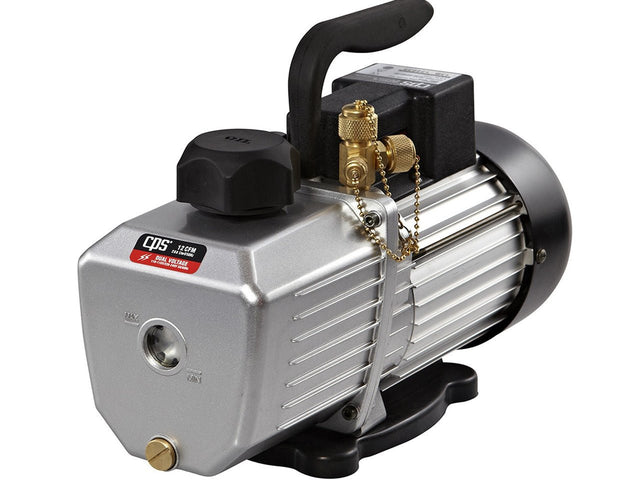

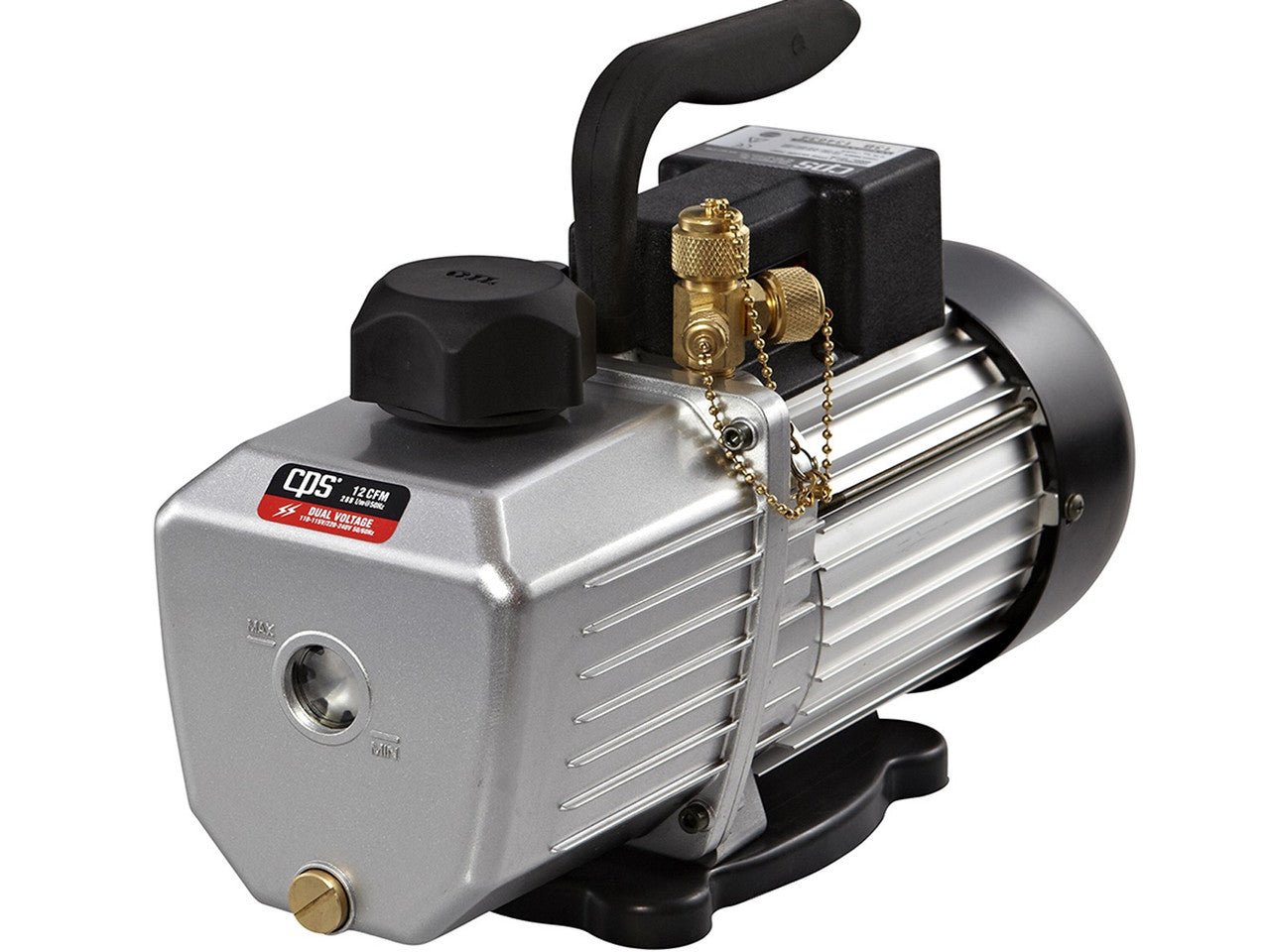

CPS VP12D Pro-Set 12 CFM Vacuum Pump

The VP12D Pro-Set® 12 CFM vacuum pump is a powerful 2 stage unit with a versatile dual voltage 1HP motor. The unit boasts the same high quality, high value features engineered into all of our Pro-Set® Premium Series vacuum pumps providing performance excellence and years of reliable service.

Features:

• Dual voltage operation 110-120V / 220V 50/60Hz

• Exceptional ultimate vacuum rating as low as 10 microns

• Advanced air cooled motor design for operation in high ambient temperatures

• Proprietary oil mist free exhaust port cap for clean, safe job environment

• Gas ballast valve speeds achievement of deep vacuum

• Multiple port connections for ¼”, ⅜” and ½” ACME

• Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port

• Solid rubber base provides extreme shock resistance

• Sure-grip handle ergonomically designed for superior comfort and portability

Specifications:

• Power | 110-120V / 220V 50/60Hz
• Stage | 2
• Motor Size (HP) | RPM @ 50/60Hz: 1 (HP) 2880 / 3440
• Dimensions | 14.9" x 5.7" x 10.6"
• Weight | 30.9 lb / 14.0 kg
• Operating Temperature Range | 0 °C (32 °F) to 52 °C (125 °F)
• Ultimate Vacuum | as low as 10 microns
• Oil Capacity | 27 oz / 800 ml
• Overload Protection | Motor Thermally Protected, Dual Voltage units have extra IEC fuse
• Control System | On-off power switch
• Free Air Displacement | 12 CFM @ 60Hz, 288l/m @ 50Hz
• Intake Fittings | 1/4, 3/8 and 1/2 SAE
• Gas Ballast Valve | Yes

Replacement Parts (Sold Separately):

• VPGXB1 | Base
• VPGXEB5 | End Bell w/Sightglass- VP Large
• VPGXEBO4 | End Bell O-ring- VP Large
• VPGXEH2 | Electrical Housing w/IEC, Dual SW, SW
• VPGXF15 | Fuse T15A
• VPGXFB4 | Fan Blade- VP Large
• VPGXFG4 | Fan Grill- VP Large
• VPGXH2 | Handle-VP
• VPGXGB | Gas Ballast Valve
• VPGXIP2 | Port Kit 1/4, 3/8, 1/2 SAE
• VPGXODP | Oil Drain Plug w/O-ring
• VPXOMP | Oil Mist Free Exhaust Port
• VPGXPC12 | Vacuum Pump Cartridge VP12D
