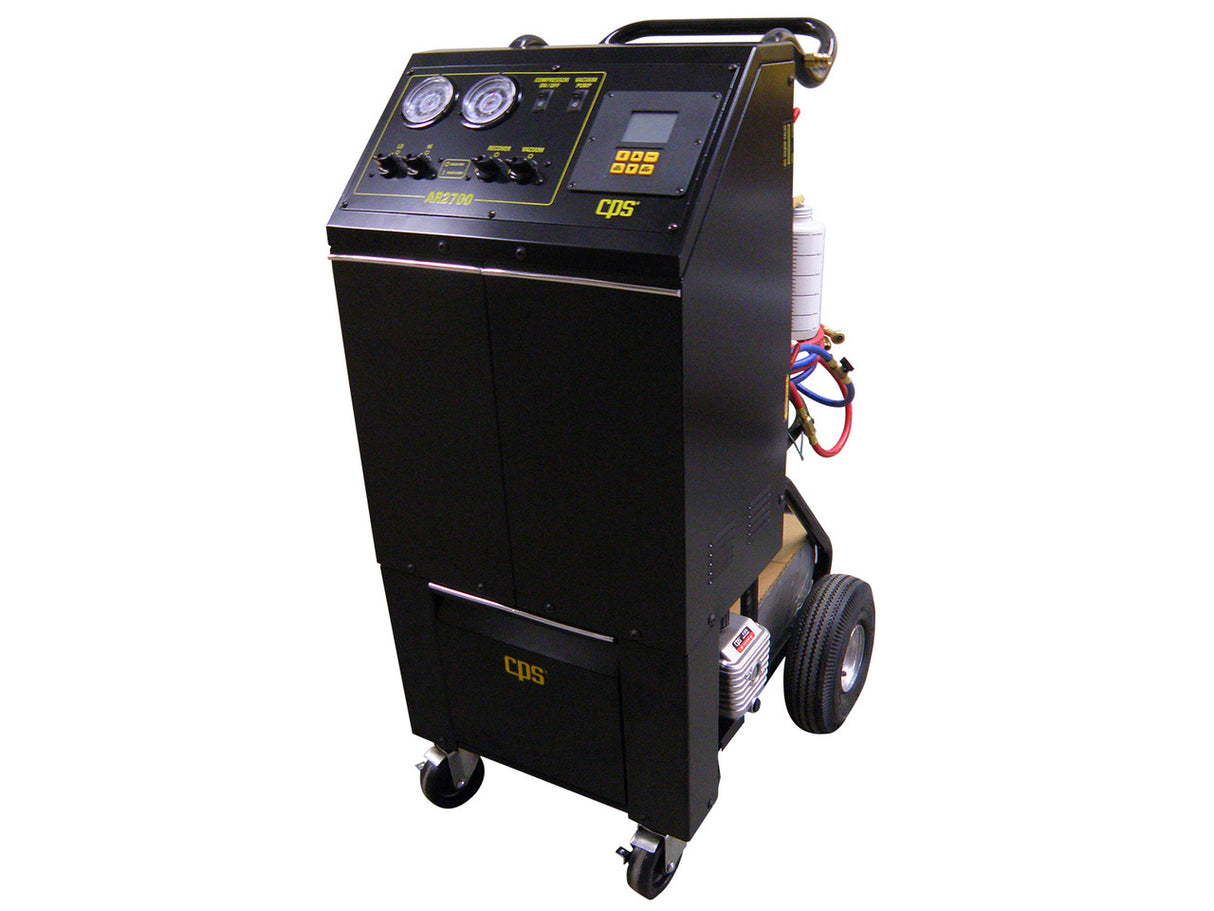

CPS AR2700M Multi Refrigerant Recovery and Recycling Machine

AR2700M Multi-refrigerant (not SAEJ2788 approved)

For R134a, R12, R22, R502, R404a, R402a, R401a, R407c and R409a
The AR2700M, AR2700MJ, and AR2700ME come with a pump down valve and are meant for multiple refrigerant change out.

The new semi-automatic machine incorporates ball valves instead of solenoids and checks valves in the recovery and evacuation flow path. Both of these components are susceptible to in-field failure when exposed to foreign contaminants such as aftermarket A/C sealants, loose desiccant, and other particles that cause them to leak or seal closed. The machine can be run with a selectable valve for low, high, or both in recovery, recycling, and recharge mode. The machine comes with a50 Lbs tank or can purchase a 90Lbs tank separately.

Features:

• All-Metal Cabinet
• Tool Drawer for tools
• Selectable operating language
• 6 CFM Vacuum pump
• 8-foot hoses with Manual couplers.
• Option longer hoses for large trucks, containers, etc.
• The pump-down valve allows the user to pump down the machine and switch out tanks and filters for multi-refrigerant use.
• 1-year warranty

Specifications:

• Compressor | 12.67 cc Twin Cylinder Oil-less
• Tank Size | 50 lb
• Heater Band | No
• Condensor | No
• Dimensions | 22"w x 24.5"d x 42"h
• Weight | 120 lbs/54.5 kg (not including tank)
• Operating Range | 32°F (0°C) to 120°F (49°C)
• Power | 115 VAC 60 Hz 1Ph
• Power Consumption | 500w
• Suction Pressure Gauge | -30 inch Hg to 125 PSIG
• Discharge Pressure Gauge | 0 to 500 PSIG
• Filtration | 16 cubic inch drier w/ moisture indicator
• Manual Control Valves | Ball Type Valves to control HI, LO, Recover, and Vacuum
• Charging Valve | 12 VDC Solenoid Valve
• Construction | 1” Heavy duty tubular frame construction; 10” pneumatic wheels, 4.5” swivel casters
• Overload Protection | 15A Thermal Breaker
• High Pressure Shut-off | 450 PSIG (30 Bar)
• Refrigerants* | R134a, R12, R22, R502, R4040a, R402a, R401a, R407c, R409a
• Single or Multiple Refrigerant | Multiple
• Pack Size | 43” x 25½” x 28” (1092.2 x 647.7 x 711.2 mm)
• Packaging UPC | 750377984280
• Shipping Box Size (H x W x D) | 43” x 25½” x 28” (1092.2 x 647.7 x 711.2 mm)
• Quantity Of Packs/Shipping Box | 1
• Shipping Box Weight | 230 lbs
• Pallet Size (H x W x D) | 28” x 24” x 5” (711.2 x 609.6 x 127 mm)
• Quantity Of Shipping Boxes/Pallet | 1
• North American HTS Code | 8414.80.00.00
• Product Warranty | 1 Year

Accessories:

• ARXF2: Filter
• ARXC: Nylon Cover
