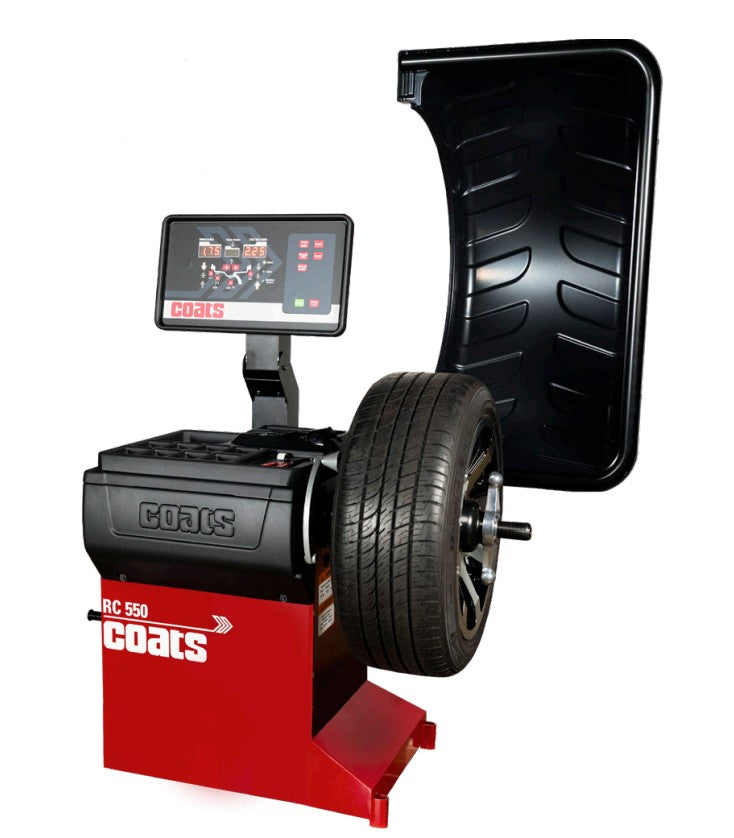

Coats RC 550 Wheel Balancer

The RC 550 balancer is a compact wheel balancer for passenger car and light truck OEM fitments. They’re the answer for aftermarket shops with tight space requirements or need extra capacity in busy seasons. With your existing shop space and power setup, your techs can provide wheel balancing services. This model is suitable for OEM fitments that run on standard 115V power—ready to plug in and get to work right away, no additional outlet required. The RC 550 incorporates auto 3D data entry to operate on the front lines with accuracy and speed needed to support a growing business. It is suitable for OEM fitments that run on standard 115V power—ready to plug in and get to work right away, no additional outlet required. It is made for durability and reliability, with a touch panel that holds up to repetitive use in any shop environment. It always shows any residual static unbalance to serve as a final quality check, and gives techs an opportunity to fix the static unbalance and give customers a smooth ride.

Features:

• 6 o’clock Laser Line for Weight Placement - The built-in laser projects at the bottom of the wheel barrel to show techs where tape weights should go, ensuring accurate weight applications. Easy applications, less guesswork.

• Auto Approach - After the measurement spin, the balancer automatically rotates the wheel close to the weight placement area, helping technicians find the correct position faster. From there, they fine-tune to the exact spot. Auto Approach saves time and effort, making every balance faster and smoother.

• Static-On-Screen - All RC Balancers feature STATIC-ON-SCREEN, a final quality check that shows any residual static unbalances which can result from round-off or small weight placement errors. It gives techs an opportunity to fix the static unbalance to give customers a smooth ride the first time, every time.

• 3D Automatic Data Entry - The AD measurement arm on the RC 550 is the primary way to capture dimensions. The RC 550 has 3D auto data entry to provide more speed and convenience.

Specifications:

• Wheel Diameter Range | 10" - 30"

• Wheel Width Range | 4"- 16"

• Maximum Weight | 130 lbs

• Shaft Diameter | 40 mm

• Footprint | 51.1"w x 58.4"d x 70.3"h

• Interface | Touchpanel with soft touch buttons and LEDs

• Automatic Data Entry | 3 Dimension (Offset Distance, Diameter & Width)

• Electrical Requirements | 115V

• Warranty | 1 year parts, 6 months labor

Included Accessories:

• 8112098 Small A Cone

• 8112099 Medium B Cone

• 8112100 Large C Cone

• 8112101 Large Truck D Cone

• 8113175 Premium Wheel Weight Hammer

• 8309011 Calipers

• 8112103 Hub Nut

• 8112106 Small Pressure Drum with Ring

Optional Accessories:

• 8113277C Light Truck Cone Kit

• 8200000400 Adjustable Pin Plate Set

• 85607503 Premium Quick Hub Nut
